ZKLDF460 Precision Rotary Table Turn Table Bearings In Round

Minimum Order Quantity : 1 PCS Price : USD
Packaging Details : Single box/Wooden case Delivery Time : 7-35 days
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1000PCS/WEEK
Place of Origin: Luoyang Brand Name: Monton
Model Number: ZKLDF460

Detail Information

High Light:

industrial turntable bearings

,

heavy duty turntable bearings

Product Description

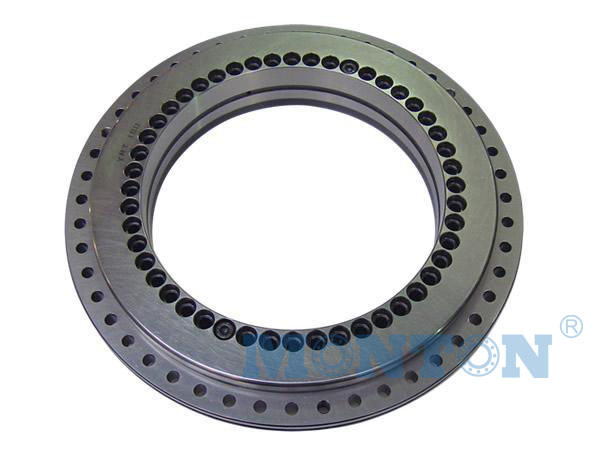

ZKLDF460 Precision Rotary Table Turn Table Bearings In Round 0

bearing type d D H H1 D1 D2 J J1 inner ring outer ring
unit: mm d1 d2 a Qty d3 Qty
mm mm
ZKLDF460 460 600 70 46 560 520 482 580 9.3 15 8.2 46 9.3 45



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
MA2) axial dynamic load static load grease
G Qty Qty×t Nm Ca KN Coa KN r/min Nm Kg
    quantity
ZKLDF460 2 M12 3 48×7.5° 34 255 1860 700 21 50



ZKLDF Rotary Table Bearing
ZKLDF are low-friction, high accuracy for very high speeds, high axial and radial loads and high demands on tilting rigidity. These bearings are
particularly suitable for precision applications involving combined loads. Their preferred areas of use are bearing arrangements in rotary tables
and honing heads as well as measurement and testing equipment.
Bearing features:
1. High precision: precision at P4, P2.
2. High rigidity: ZKLDF series bearings are with preload.
3. High speed: can be applied in high speed working condition.
4. Multi-direction load capacity: contact angular is 60°, and can support axial load, radial load, and tilting load.
5. Low friction: small frictional torque.
Application:
can be widely applied in precision rotary table of the machining center, high precision measuring instrument, and medical equipment etc.



ZKLDF460 precision rotary table  turn table bearings
