SX011832 160*200*20mm crossed roller bearing GCr15/GCr15SiMn P5 / P4 / P2 Accuracy

1
MOQ
USD
Price
SX011832 160*200*20mm crossed roller bearing GCr15/GCr15SiMn  P5 / P4 / P2 Accuracy
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15 Or GCr15SiMn
Accuracy: P5/P4/P2
Application: Harmonic Reducer Or Robot
Customer: MKD,LCM,DMG,Coma,Sumsung
Market: Europe,USA,Korean
Other Types: RE,RB,RU,RX,SX Series
High Light:

rotary table bearing

,

industrial turntable bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: SX011832
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description
SX011832 GCr15 or GCr15SiMn crossed roller bearing P5 / P4 / P2 Accuracy

Crossed roller bearing

di 160 mm Tolerance: K6
+0,004/-0,021
Da 200 mm Tolerance: h6
0/-0,025
H 20 mm Section height of bearing
Tolerance: +/-0,1
Di 180,8 mm
DM 180 mm
da 179,2 mm
h 20 mm Height of individual ring
Tolerance: E8
0/-0,025
rmin 1,1 mm
S 1,5 mm Lubrication hole: 3 holes spaced evenly around the circumference
m 1,7 kg Mass
  0,015 mm Running accuracy, radial
  0,010 mm Running accuracy, axial
sr min 0,005 mm Min. radial bearing clearance
sr max 0,020 mm Maximum radial bearing clearance
sk min 0,010 mm Min. axial tilting clearance
sk max 0,04 mm Maximum axial tilting clearance
RLOmax 0,004 mm Low clearance: Radial clearance
RLOmax 0,008 mm Low clearance: Preload
VSPmin 0,005 mm Min. bearing preload
VSPmax 0,020 mm Maximum bearing preload
Ca 69000 N Basic dynamic load rating, axial
C0a 255000 N Basic static load rating, axial
Cr 49000 N Basic dynamic load rating, radial
(for radial load only)
C0r 126000 N Basic static load rating, radial
(for radial load only)
nG Öl 850 1/min Limiting speed for oil lubrication with normal clearance
nG Fett 425 1/min Limiting speed for grease lubrication with normal clearance
nG Öl 425 1/min Limiting speed for oil lubrication with preload
nG Fett 210 1/min Limiting speed for grease lubrication with preload
  61832 Dimensions identical to ISO dimension series 18

SX011832 crossed roller bearing

SX series crossed roller bearings

Identification

number

Main dimensions Basic load rating(axial) Basic load rating(radial) Weight
            Ca Coa Cr Cor
d D Dpw B B1 S r kN kN kN kN kg
SX011814 70 90 80 10 1.2 0.6 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 560 2538 355 1244 44

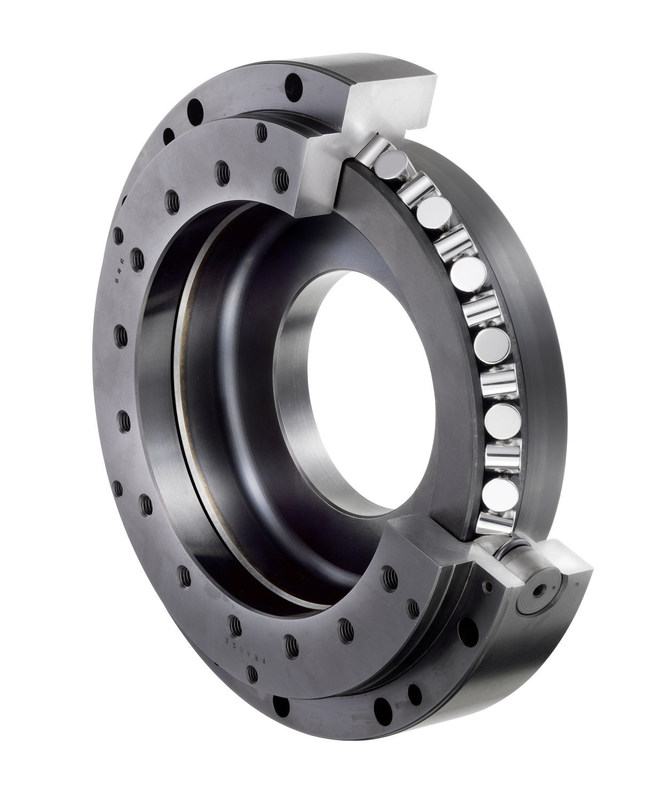

The Brief Description of Cross Roller Bearings:

Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.



MONTON is the only one specialized in mass production in China, and has some spot products, such as large, medium and small high-precision thin-walled roller bearings, large, medium and small high-precision cross-section thin-walled ball bearings, as well as other research and development bearing manufacturing enterprises for precision bearings in industrial robots and aerospace fields.



MONTON is a professional manufacturer of thin-walled cross roller bearings. The precision can be divided into P5, P4, P2 and USP. Our thin-walled cross roller bearings have been fully recognized and accepted by the German and Japanese markets after more than five years of verification. Welcome new and old users to call, or direct to the factory to discuss. SX011820; SX011824; SX011828; SX011832; SX011836; SX011840; SX011848; SX011860; SX011868; SX011880; SX0118/500 RB3010, RB3510, RB7013, RB9016, RB12015, RB14025, RB16025, RB18025, RB20030, RB24025, RB25025, RB25030, RB30040, RB40040, RB50040, RB50025, RB70045, RB90070, RB1000110, RB1250110 XU series and RE series, RA series, series of RU, XSA series, XSI series, XSU serieswith an inner diameter of 20mm to 3500mm.
