RB3010UUCC0P5 Cross Roller Bearing , Crossrobot Arm Precision Ball Bearings
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

rotary table bearing

,

industrial turntable bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: RB3010UUCC0P5
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

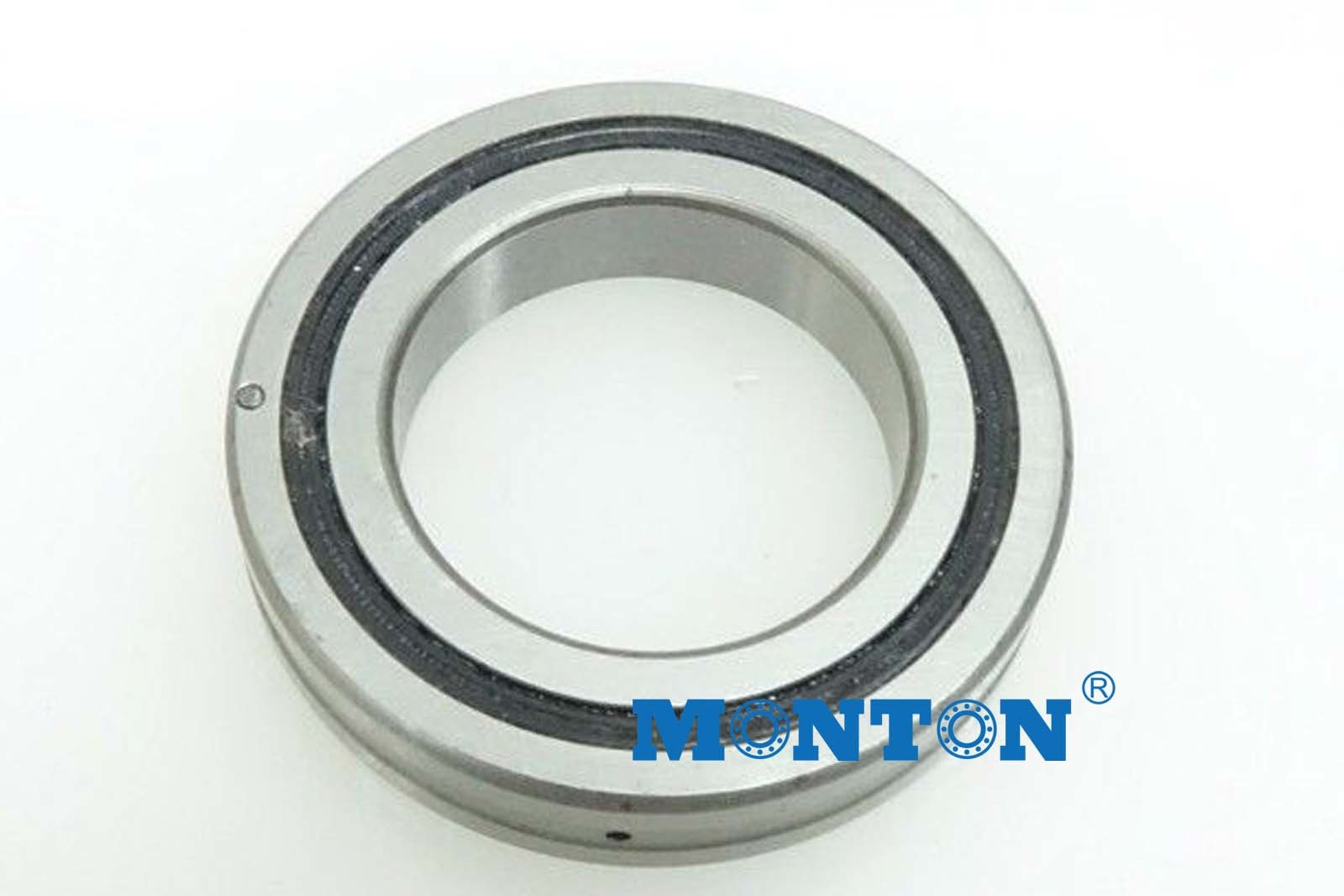

RB3010UUCC0P5 Crossed Roller Bearing , Crossrobot Arm Precision Ball Bearings



RB3010UUCC0P5

RB3010UUCC0P5

Shaft Diameter Bearings inner ring outer ring Roller pitch circle diameter width Greasing hole Chamfer Shoulder height Basic load rating(radial) weight
d D dp B B1 a-b r(min) ds Dh C C0 Kg
(mm) (mm) (mm) (mm) (mm) kN kN
30 RB3010 30 55 41.5 10 2.5-1 0.6 37 47 7.35 8.36 0.12

RB3010UUCC0P5 Cross Roller Bearing , Crossrobot Arm Precision Ball Bearings

RB3010UUCC0P5 Cross Roller Bearing , Crossrobot Arm Precision Ball Bearings

RB3010UUCC0P5













































































































































































Cross roller bearing sepecification

With the Cross-Roller Ring, cylindrical rollers are arranged crosswise, with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including, radial, axial and moment loads.
Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary

units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.
Cross roller bearing RB series

RB series Unit:mm

Identification

number

Main dimensions Shoulder height Basic load rating(radial) Weight

inner

ring

outer

ring

Roller

pitch

circle

diameter

width



Chamfer Cr Cor
d D Dpw B B1 rmin ds Dh kN kN kg
RB3010 30 55 41.5 10 0.6 37 47 7.35 8.36 0.12
RB3510 35 60 46.5 10 0.6 41 51.5 7.64 9.12 0.13
RB4010 40 65 51.5 10 0.6 47.5 57.5 8.33 10.6 0.16
RB4510 45 70 56.5 10 0.6 51 61.5 8.62 11.3 0.17
RB5013 50 80 64 13 0.6 57.4 72 16.7 20.9 0.27
RB6013 60 90 74 13 0.6 68 82 18 24.3 0.3
RB7013 70 100 84 13 0.6 78 92 19.4 27.7 0.35
RB8016 80 120 98 16 0.6 91 111 30.1 42.1 0.7
RB9016 90 130 108 16 1 98 118 31.4 45.3 0.75
RB10016 100 140 119.3 16 1 109 129 31.7 48.6 0.83
RB10020 150 123 20 1 113 133 33.1 50.9 1.45
RB11012 110 135 121.8 12 0.6 117 127 12.5 24.1 0.4
RB11015 145 126.5 15 0.6 122 136 23.7 41.5 0.75
RB11020 160 133 20 1 120 143 34 54 1.56
RB12016 120 150 134.2 16 1.6 127 141 24.2 43.2 0.72
RB12025 180 148.7 25 1.5 133 164 66.9 100 2.62
RB13015 130 160 144.5 15 0.6 137 152 25 46.7 0.72
RB13025 190 158 15 1.5 143 174 69.5 107 2.82
RB14016 140 175 154.8 16 1 147 162 25.9 50.1 1
RB14025 200 168 25 1.5 154 185 74.8 121 2.96
RB15013 150 180 164 13 0.6 157 172 27 53.5 0.68
RB15025 210 178 25 1.5 164 194 76.8 128 3.16
RB15030 230 188 30 1.5 173 211 100 156 5.3
RB16025 160 220 188.6 25 1.5 173 204 81.7 135 3.14
RB17020 170 220 191 20 1.5 184 198 29 62.1 2.21
RB18025 180 240 210 25 1.5 195 225 84 143 3.44
RB19025 190 240 211.9 25 1 202 222 41.7 82.9 2.99
RB20025 200 260 230 25 2 215 245 84.2 157 4
RB20030 280 240 30 2 221 258 114 200 6.7
RB20035 295 247.7 35 2 225 270 151 252 9.6
RB22025 220 280 250.1 25 2 235 265 92.3 171 4.1
RB24025 240 300 269 25 2.5 256 281 68.3 145 4.5
RB25025 250 310 277.5 25 2.5 265 290 69.3 150 5
RB25030 330 287.5 30 2.5 269 306 126 244 8.1
RB25040 355 300.7 40 2.5 275 326 195 348 14.8
RB30025 300 360 328 25 2.5 315 340 76.3 178 5.9
RB30035 395 345 35 2.5 322 368 183 367 13.4
RB30040 405 351.6 40 2.5 326 377 212 409 17.2
RB35020 350 400 373.4 20 2.5 363 383 54.1 143 3.9
RB40035 400 480 400.3 35 2.5 422 459 156 370 14.5
RB40040 510 453.4 40 2.5 428 479 241 531 23.5
RB45025 450 500 474 25 1 464 484 61.7 182 6.6
RB50025 500 550 524.2 25 1 514 534 65.5 201 7.3
RB50040 600 548.8 40 2.5 526 572 239 607 26
RB50050 625 561.6 50 2.5 536 587 267 653 41.7
RB60040 600 700 650 40 3 627 673 264 721 29
RB70045 700 815 753.5 45 3 731 777 281 836 46
RB80070 800 950 868.1 70 4 836 900 468 1330 105
RB90070 900 1050 969 70 4 937 1001 494 1490 120
RB1000110 1000 1250 1114 110 5 1057 1171 1220 3220 360
RB1250110 1250 1500 1365.8 110 5 1308 1423 1350 1970 440



Cross roller bearing type
RB type ( outer split type )
RB series model for cross- Cylindrical roller bearings of the basic model , the inner and outer dimensions are the minimum possible , its structure is the outer ring is split type , the inner ring is the one designed for applications requiring high precision rotation of the inner parts .
RE-type ( inner split type )
RE series model is shaped by the XRB generated new style design , the main dimensions and XRB same type . Its structure is split inner ring is the type , the outer ring is the one designed for applications requiring high precision rotation of the outer parts .
RU -type ( inner and outer one size )
RU series models have been carried out since the mounting holes of the processing, you do not need a fixed flange and the housing . Further, since the use of external integrated with the seat ring structure mounted almost no effect on performance , it is possible to obtain stable rotation and torque accuracy . Can be used to rotate the outer ring and the inner ring .
RBC -type ( outer split type )
RBC Series models ( corresponding to the IKO's CRBC series ) whose structure is the outer ring is split type , the inner ring is integrated design , with cage full complement cylindrical roller bearings. Suitable for applications requiring high precision rotation of the inner parts .
CRBH type ( inner , outer one size )
CRBH series models , the outer ring is integrated structure for the outer ring and the inner ring rotates.
RA type ( outer split , ultra-thin )
RA Series models are the RB type , the outer ring thickness is reduced to the limit of the compact . For applications that require light weight, compact design of the site, such as robots and robotic rotating parts .
SX type ( outer split type )
SX Series Model Structure and RB series is similar to the structure of the outer ring is two divided by three snap ring connection , the inner one designed for applications that require high precision rotation of the inner place .
XRU08 type ( inside and outside the ring one size )
XSU08 series with RU series are similar, have been carried out outside the ring mounting holes of the processing, you do not need a fixed flange and the housing . Further, since the use of external integrated with the seat ring structure mounted almost no effect on performance , it is possible to obtain stable rotation and torque accuracy . Can be used to rotate the outer ring and the inner ring .


RU series:

RU42 RU66 RU85 RU124 RU148 RU178 RU124X RU148X RU178X RU124G RU148G RU178G RU228 RU297 RU445 RU228X RU297X RU445X RU228G RU297G RU445G



SX series:

SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840 SX011848 SX011860 SX011868 SX0118/500



RA series:

RA5008 RA6008 RA7008 RA8008 RA9008 RA10008 RA11008 RA12008 RA13008 RA14008 RA15008 RA16013 RA17013 RA18013 RA19013 RA20013



RE series:

RE2008 RE2508 RE3010 RE3510 RE4010 RE4510 RE5013 RE6013 RE7013 RE8016 RE9016 RE10016 RE10020 RE11012 RE11015 RE11020 RE12016 RE12025 RE13015 RE13025 RE14016 RE14025 RE15013 RE15025 RE15030 RE16025 RE17020 RE18025 RE19025 RE20025 RE20030 RE20035 RE22025 RE24025 RE25025 RE25030 RE25040 RE30025 RE30035 RE30040 RE35020 RE35025 RE40035 RE40040 RE45025 RE50025 RE50040 RE50050 RE60040 RE70045 RE80070 RE90070 RE1000110 RE1250110



RB series:

RB2008 RB2508 RB3010 RB3510 RB4010 RB4510 RB5013 RB6013 RB7013 RB8016 RB9016 RB10016 RB10020 RB11012 RB11015 RB11020 RB12016 RB12025 RB13015 RB13025 RB14016 RB14025 RB15013 RB15025 RB15030 RB16025 RB17020 RB18025 RB19025 RB20025 RB20030 RB20035 RB22025 RB24025 RB25025 RB25030 RB25040 RB30025 RB30035 RB30040 RB35020 RB40035 RB40040 RB45025 RB50025 RB50040 RB50050 RB60040 RB70045 RB80070 RB90070 RB1000110 RB1250110



MONTON is the only one specialized in mass production in China, and has some spot products, such as large, medium and small high-precision thin-walled roller bearings, large, medium and small high-precision cross-section thin-walled ball bearings, as well as other research and development bearing manufacturing enterprises for precision bearings in industrial robots and aerospace fields.



MONTON is a professional manufacturer of thin-walled cross roller bearings. The precision can be divided into P5, P4, P2 and USP. Our thin-walled cross roller bearings have been fully recognized and accepted by the German and Japanese markets after more than five years of verification. Welcome new and old users to call, or direct to the factory to discuss. SX011820; SX011824; SX011828; SX011832; SX011836; SX011840; SX011848; SX011860; SX011868; SX011880; SX0118/500 RB3010, RB3510, RB7013, RB9016, RB12015, RB14025, RB16025, RB18025, RB20030, RB24025, RB25025, RB25030, RB30040, RB40040, RB50040, RB50025, RB70045, RB90070, RB1000110, RB1250110 XU series and RE series, RA series, series of RU, XSA series, XSI series, XSU serieswith an inner diameter of 20mm to 3500mm.
