Series |
H247500 |
Cone Part Number |
H247549 |
Cup Part Number |
H247510CD |
Design Units |
Imperial |
Bearing Weight |
224.57 lb101.863 Kg |
Cage Type |
Stamped Steel |
Ab - Cage-Cone Frontface Clearance |
0.16 in4.1 mm |
d - Bore |
9.25 in234.95 mm |
D - Cup Outer Diameter |
15.1250 in384.175 mm |
B - Cone Width |
4.4375 in112.713 mm |
C - Double Cup Width |
7.6250 in193.675 mm |
T - Bearing Width across Cones |
9.3749 in238.122 mm |
| R - Cone Backface "To Clear" Radius1 | 0.25 in6.400 mm |
| r - Cup Frontface "To Clear" Radius2 | 0.06 in1.5 mm |
db - Cone Backface Backing Diameter |
10.59 in269 mm |
Da - Cup Frontface Backing Diameter |
14.32 in363.70 mm |
Aa - Cage-Cone Backface Clearance |
0.37 in9.4 mm |
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 | 97600 lbf434000 N |
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 | 656000 lbf2920000 N |
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 | 170000 lbf756000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 55600 lbf247000 N |
| K - Factor7 | 1.76 |
| e - ISO Factor8 | 0.7 |
| Y1 - ISO Factor9 | 0.971.44 |
| Y2 - ISO Factor10 | 1.44 |
| G1 - Heat Generation Factor (Roller-Raceway)11 | 1960 |
G2 - Heat Generation Factor (Rib-Roller End) |
148 |
| Cg - Geometry Factor12 | 0.164 |

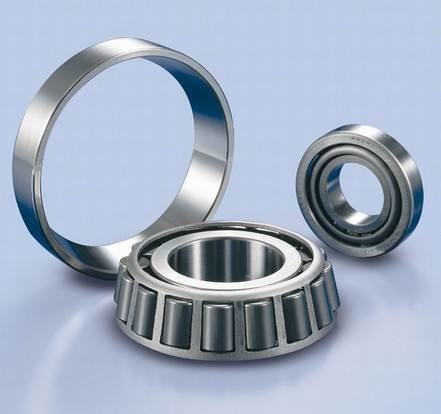

Tapered roller bearings are widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and a host of other industries.
Rolls Bearings Limited can facilitate any enquiry for TIMKEN H247549/H247510 bearings including availability, pricing and technical details. We have strong cooperation with our branded bearings suppliers, who all have large stocked warehouses with plenty of inventory and a great variety of most bearings.
At the same time, Rolls Bearing Limited is committed to offering you the fastest delivery, reliable quality and the most reasonable price for H247549/H247510 bearings.
We can help our customers meet their requirements for branded bearings. Please call us or email to check on our latest prices, stock availability and to request product data sheets.
