L183448 / L183410 Rolling Steel Taper Roller Bearing ISO 9001 Certified

1
MOQ
USD
Price
L183448 / L183410 Rolling Steel Taper Roller Bearing ISO 9001 Certified
Features Gallery Product Description Request A Quote
Features
Specifications
Material: G20CrNi4A Or GCr15SiMn
Accuracy: P5
Vibration: Z1V1 Or Z2V2
Application: Rolling Mill Or Rolling Steel For Steel Or Aluminum Factory
Main Customers: Aluminum Or Steel Factory
Main Market: Germany,Turkey
High Light:

tapered ball bearing

,

electric motor bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: L183448/L183410
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

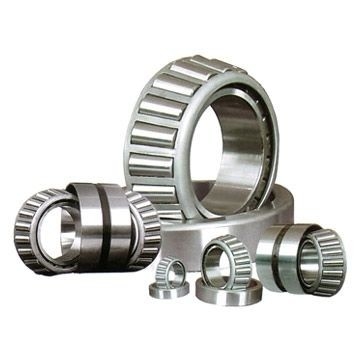

L183448/L183410 Tapered rollerbearings Rolling mill or rolling steel for steel or aluminum factory



Bearings of this type use conical rollers guided by a back-face rib on the cone. These bearings are capable of taking high radial loads and axial loads in one direction.

In the HR series, the rollers are increased in both size and number giving it an even higher load capacity. They are generally mounted in pairs in a manner similar to single-row angular contact ball bearings. In this case, the proper internal clearance can be obtained by adjusting the axial distance between the cones or cups of the two opposed bearings. Since they are separable, the cone assemblies and cups can be mounted independently.

Depending upon the contact angle, tapered roller bearings are divided into three types; normal angle, medium angle, and steep angle.

Double-row and four-row tapered roller bearings are also available. Pressed steel cages are generally used.



d 759.925 mm
D 889 mm
B 88.9 mm
r1,2 min 3.3 mm
r3,4 min 3.3 mm
T 88.9 mm
ra max 5 mm
da max 780 mm
Db min 873 mm
Da min 864 mm
db max 783 mm
a1 12.5 mm
a2 19 mm
rb max 5 mm



Cr 1910 kN
Cor 6130 kN
e 0.31



ass bearing 89.9 kg


L183448/L183410
