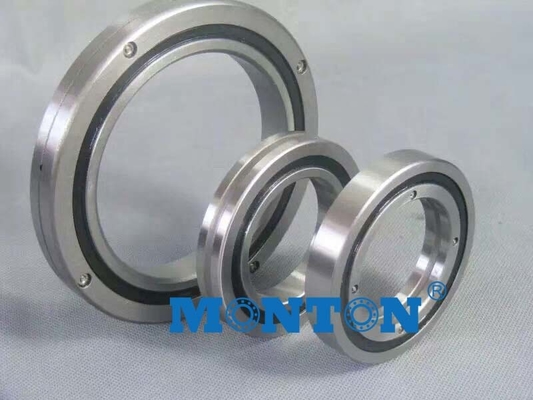

RB crossed roller bearing series
RB crossed roller bearing series (outer ring division type with inner rotating), this type is the basic type of crossed roller bearings. The outer rings have two parts, and the inner ring is one integer. The type is well applied to the situation which need high rotation accuracy on inner ring. For example, it is suitable for the rotary part of the indexing table of the tools machine.
Crossed roller bearings provide more accuracy, rigidity, and weight-bearing capacity for linear motion than other commonly used friction-reducing devices such as ball bearings. And unlike ball bearings, they can support moment loads, radial forces or tilting loads. This lets one crossed roller bearing replace more than one ball bearing, thus saving the space required by ball bearings, lowering the associated material costs.
Crossed roller bearings are preferred for high-precision linear-motion applications with relatively short linear movements that require smooth motion. They are also durable, lasting 150 million cycles, even for linear-motion applications with high levels of acceleration and deceleration when using 2 to 12-mm rollers and 30 to 600-mm lengths.
They can be found in medical and lab equipment, machine tools, semiconductor processing, clean rooms, vacuum environments, material handling, and automation machinery. And as technology becomes more demanding, requiring greater and greater precision, crossed roller bearings will also become more common.
Crossed Roller Bearing Basics
A crossed roller bearing, also called a crossed roller slideway, is effectively two sets of
bearings and races combined at right angles to each other. Cylindrical bearings or rollers mount along the length of a rail in a carriage. The rollers are held in place with a cage, preventing roller-to-roller contact, which increases friction and wear. Keeping rollers separated also eliminates any risk of them jamming.
shaft diameter | Identification number | Main dimensions | Shoulder height | Basic load rating(radial) | weight | |||||||
(mm) | inner ring | outer ring | Roller pitch circle diameter dp | width | Greasing hole | Chamfer | ds | Dh | C | C0 | Kg | |
d | D | (mm) | B B1 | φ | r(min) | kN | kN | |||||
(mm) | (mm) | (mm) | ||||||||||
40 | RB4010 | 40 | 65 | 51.5 | 10 | 1 | 0.6 | 47.5 | 57.5 | 8.33 | 10.6 | 0.16 |
45 | RB4510 | 45 | 70 | 56.5 | 10 | 1 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
50 | RB5013 | 50 | 80 | 64 | 13 | 1.5 | 0.6 | 57.4 | 72 | 16.7 | 20.9 | 0.27 |
60 | RB6013 | 60 | 90 | 74 | 13 | 1.5 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
70 | RB7013 | 70 | 100 | 84 | 13 | 1.5 | 1 | 78 | 92 | 19.4 | 27.7 | 0.35 |
80 | RB8016 | 80 | 120 | 98 | 16 | 1.5 | 1 | 91 | 111 | 30.1 | 42.1 | 0.7 |
90 | RB9016 | 90 | 130 | 108 | 16 | 1.5 | 1.5 | 98 | 118 | 31.4 | 45.3 | 0.75 |
100 | RB10016 | 100 | 140 | 119.3 | 16 | 1.5 | 1.5 | 109 | 129 | 31.7 | 48.6 | 0.83 |
RB10020 | 150 | 123 | 20 | 1.5 | 1.5 | 113 | 133 | 33.1 | 50.9 | 1.45 | ||
110 | RB11012 | 110 | 135 | 121.8 | 12 | 1.5 | 1 | 117 | 127 | 12.5 | 24.1 | 0.4 |
RB11015 | 145 | 126.5 | 15 | 1.5 | 1 | 122 | 136 | 23.7 | 41.5 | 0.75 | ||
110 | RB11020 | 110 | 160 | 133 | 20 | 1.5 | 1.5 | 120 | 143 | 34 | 54 | 1.56 |
120 | RB12016 | 120 | 150 | 134.2 | 16 | 1.5 | 1.5 | 127 | 141 | 24.2 | 43.2 | 0.72 |
RB12025 | 180 | 148.7 | 25 | 2 | 1 | 133 | 164 | 66.9 | 100 | 2.62 | ||
130 | RB13015 | 130 | 160 | 144.5 | 15 | 1.5 | 2 | 137 | 152 | 25 | 46.7 | 0.72 |
RB13025 | 190 | 158 | 25 | 2 | 1 | 143 | 174 | 69.5 | 107 | 2.82 | ||
140 | RB14016 | 140 | 175 | 154.8 | 16 | 1.5 | 2 | 147 | 162 | 25.9 | 50.1 | 1 |
RB14025 | 200 | 168 | 25 | 2 | 1.5 | 154 | 185 | 74.8 | 121 | 2.96 | ||
150 | RB15013 | 150 | 180 | 164 | 13 | 1.5 | 2 | 157 | 172 | 27 | 53.5 | 0.68 |
RB15025 | 210 | 178 | 25 | 2 | 1 | 164 | 194 | 76.8 | 128 | 3.16 | ||
RB15030 | 230 | 188 | 30 | 3 | 2 | 173 | 211 | 100 | 156 | 5.3 | ||
160 | RB16025 | 160 | 220 | 188.6 | 25 | 2 | 2 | 173 | 204 | 81.7 | 135 | 3.14 |
170 | RB17020 | 170 | 220 | 191 | 20 | 1.5 | 2 | 184 | 198 | 29 | 62.1 | 2.11 |
180 | RB18025 | 180 | 240 | 210 | 25 | 2 | 2 | 195 | 225 | 84 | 143 | 3.44 |
190 | RB19025 | 190 | 240 | 211.9 | 25 | 1.5 | 2 | 202 | 222 | 41.7 | 82.9 | 2.99 |
200 | RB20025 | 200 | 260 | 230 | 25 | 2 | 2.5 | 215 | 245 | 84.2 | 157 | 4 |
RB20030 | 280 | 240 | 30 | 3 | 2.5 | 221 | 258 | 114 | 200 | 6.7 | ||
RB20035 | 295 | 247.7 | 35 | 3 | 2.5 | 225 | 270 | 151 | 252 | 9.6 | ||
220 | RB22025 | 220 | 280 | 250.1 | 25 | 2 | 2.5 | 235 | 265 | 92.3 | 171 | 4.1 |
240 | RB24025 | 240 | 300 | 269 | 25 | 2 | 3 | 256 | 281 | 68.3 | 145 | 4.5 |
250 | RB25025 | 250 | 310 | 277.5 | 25 | 2 | 3 | 265 | 290 | 69.3 | 150 | 5 |
RB25030 | 330 | 287.5 | 30 | 3 | 3 | 269 | 306 | 126 | 244 | 8.1 | ||
RB25040 | 355 | 300.7 | 40 | 3.5 | 3 | 275 | 326 | 195 | 348 | 14.8 | ||
300 | RB30025 | 300 | 360 | 328 | 25 | 2 | 3 | 315 | 340 | 76.3 | 178 | 5.9 |
RB30035 | 395 | 345 | 35 | 3 | 3 | 322 | 368 | 183 | 367 | 13.4 | ||
RB30040 | 405 | 351.6 | 40 | 3.5 | 3 | 326 | 377 | 212 | 409 | 17.2 | ||
350 | RB35020 | 350 | 400 | 373.4 | 20 | 1.5 | 3.5 | 363 | 383 | 54.1 | 143 | 3.9 |
400 | RB40035 | 400 | 480 | 440.3 | 35 | 3 | 3.5 | 422 | 459 | 156 | 370 | 14.5 |
RB40040 | 510 | 453.4 | 40 | 3.5 | 1.5 | 428 | 479 | 241 | 531 | 23.5 | ||
450 | RB45025 | 450 | 500 | 474 | 25 | 1.5 | 1.5 | 464 | 484 | 61.7 | 182 | 6.6 |
500 | RB50025 | 500 | 550 | 524.2 | 25 | 1.5 | 1.5 | 514 | 534 | 65.5 | 201 | 7.3 |
RB50040 | 600 | 548.8 | 40 | 3 | 3.5 | 526 | 572 | 239 | 607 | 26 | ||
RB50050 | 625 | 561.6 | 50 | 3.5 | 3.5 | 536 | 587 | 267 | 653 | 41.7 | ||
600 | RB60040 | 600 | 700 | 650 | 40 | 3 | 4 | 627 | 673 | 264 | 721 | 29 |
700 | RB70045 | 700 | 815 | 753.5 | 45 | 3 | 4 | 731 | 777 | 281 | 836 | 46 |
800 | RB80070 | 800 | 950 | 868.1 | 70 | 4 | 5 | 836 | 900 | 468 | 1330 | 105 |
900 | RB90070 | 900 | 1050 | 969 | 70 | 4 | 5 | 937 | 1001 | 494 | 1490 | 120 |
1000 | RB1000110 | 1000 | 1250 | 1114 | 110 | 6 | 6 | 1057 | 1171 | 1220 | 3220 | 360 |
1250 | RB1250110 | 1250 | 1500 | 1365.8 | 110 | 6 | 6 | 1308 | 1423 | 1350 | 3970 | 440 |
