| Gear type |
External gears
|
| Bearing type | 2 rows of balls |
| Ø Ext - Mm |
1144
|
| Ø Int - Mm |
860
|
| Module |
10
|
| No. Teeth |
111
|
| External Bolts. - N. |
36
|
| Internal Bolts - N. |
36
|
| External Bolts - Type |
M20
|
| Internal Bolts - Type |
M20
|
| Weight -Kg |
267
|
| Maximum tangential force - kN |
73,9
|
| Maximum tangential force - kN |
147,8
|

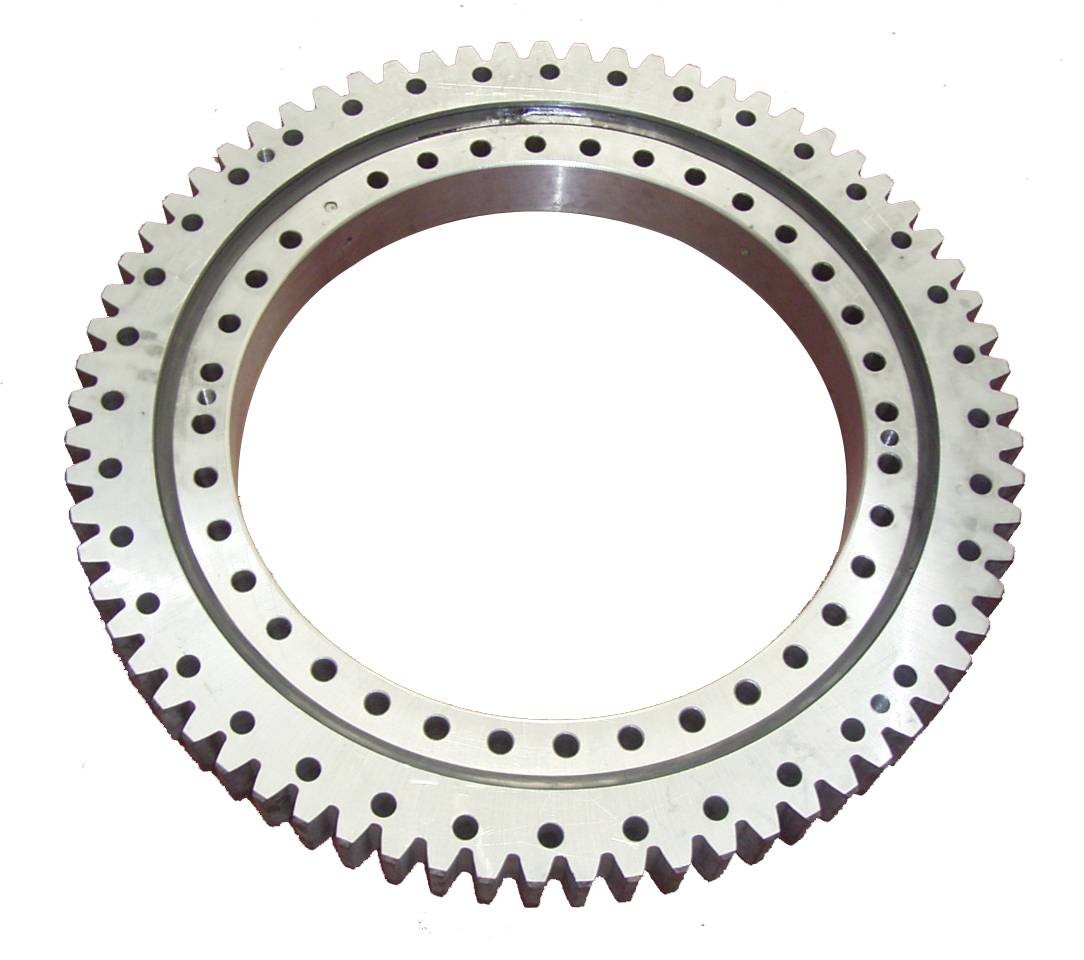

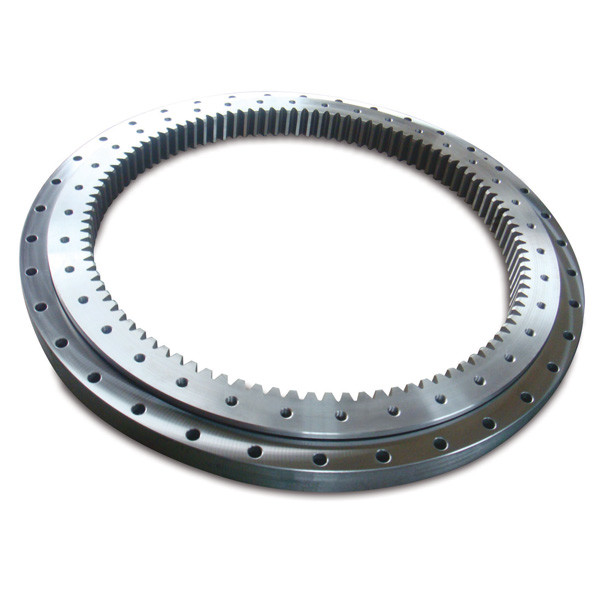

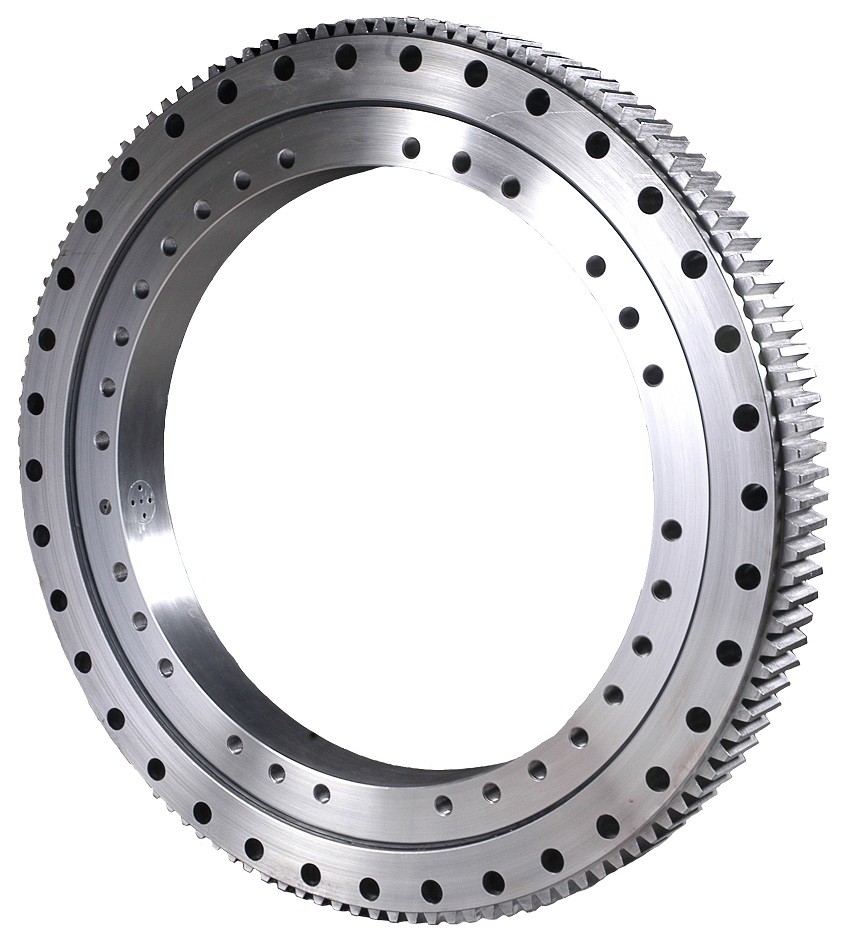

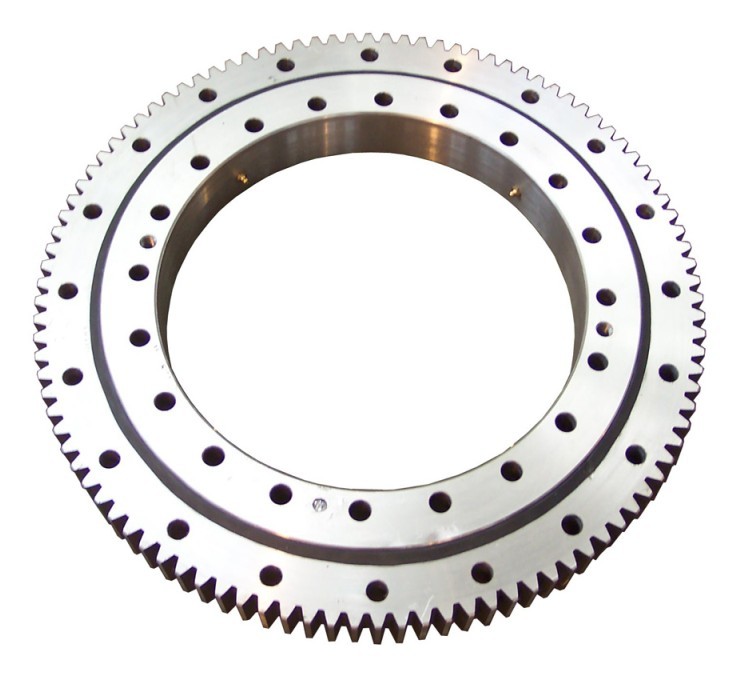

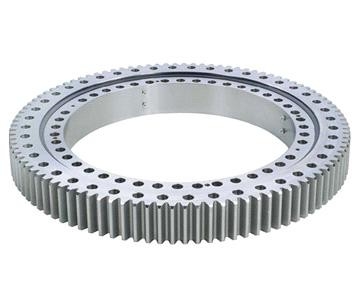

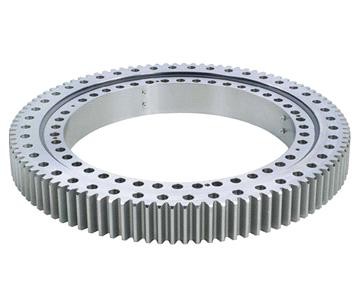

MONTON slewing bearings are necessary when in a given machine or system, one structural part needs to rotate in the opposite direction to another along a fixed axis, whilst guaranteeing the axial and radial link between the two parts.
The MONTON slewing bearing must support and transmit the operating loads of the structure to which it is connected; furthermore, MONTON slewing bearings must guarantee the application's required degree of precision, compliance with operating parameters and the requested life-cycle. It is clear that the slewing bearing is a fundamental component for the application in which it is inserted, which must be selected according to specific technical analyses. Technical staff at MONTON is at your service to provide assistance when selecting the most suitable slewing bearing for your application. The most common applications are: excavators, concrete pumps, boom lifts and man lifts, crane trucks, civil and harbour cranes, compactors, wind turbines, radars, manipulators and positioners, filling carousels, rotary tables.
VE030A00 , VE031A01 , VE043A05 , VE045A00 , VE050A02 , VE059A22 , VE059A00 , VE059A10 ,VE064A00 , VE064A07 , VE079A00 , VE084A01 , VE086A00 , VE097A00 , VE114A05 , VE120A01 , VE120A05 , VE140A01 , VE180A00
VI040A01 , VI053A00 , VI057A01 , VI064A05 , VI075A00 , VI085A05 , VI085A08 , VI095A01 , VI095A14 , VI100A00 , VI104A04 , VI105A03 , VI105A04 , VI129A00 , VI142A01 , VI147A00 , VI160A01 , VI200A01
VS040A00 , VS048A00 , VS051A03 , VS064A08 , VS094A00
VE050B01 , VE061B00 , VE086B03 , VE098B00 , VE108B03 , VE114B00 , VE120B12 , VE120B01 , VE120B00 , VE122B00 , VE129B00 , VE138B05 , VE138B04 , VE147B01 , VE147B03 , VE160B04 , VE160B00 , VE163B01
VI057B02 , VI085B00 , VI095B01 , VI097B06 , VI098B03 , VI101B00 , VI107B01 , VI117B06 , VI117B01 , VI120B01 , VI120B00 , VI125B01 , VI057B02 , VI057B02 , VI057B02 , VI134B00 , VI147B02 , VI147B01 , VI153B06 , VI153B023 , VI175B03
VS050B00 , VS061B00 , VS098B00
V18E089 , V25E139 , V18E083 , V25E013 , V18E082 , V25E195 , V30E081 , V25E197 , V25E248 , V25E131 , V30E150 , V25E062 , V30E013 , V25E250 , V30E088 , V30E123 , V30E087 , V30E151 , V40E028 , V40E027 , V40E029
V18I082 , V18I089 , V25I185 , V25I001 , V25I192 , V25I161 , V25I040 , V30I132 , V30I013
V18S077 , V25S084 , V18S080 , V18S074 , V18S084 , V25S085 , V25S091 , V30S018 , V30S023
