YRT100  yrt bearing manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

industrial turntable bearings

,

skf turntable bearings

Basic Infomation
Place of Origin: Luoyang
Brand Name: Monton
Model Number: YRT100
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 1000pcs/week
Product Description

YRT100  yrt bearing manufacturers

bearing type Dimensions fixing holes
d D H H1 C D1 J J1 inner ring outer ring
unit: mm d1 d2 a qty d3 qty
mm mm
YRT100 100 185 38 25 12 160 112 170 5.6 10 5.4 16 5.6 15



bearing type Number of retaining screws Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
axial radial
dynamic load static load dynamic load static load
MA2) Ca Coa Cr Cor grease
G qty qty×t Nm KN r/min Nm Kg
YRT100 2 M5 3 18×20° 8.5 76.5 415 47.5 120 430 3 4.1



Machining tolerances for shafts
Bearings shaft diameter (mm) roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT100 100 0 -0.015 6 4 4 0.4



Machining tolerances for housings
Bearings (mm)housing diameter roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT100 185 +0.022 -0.007 10 7 7 0.8

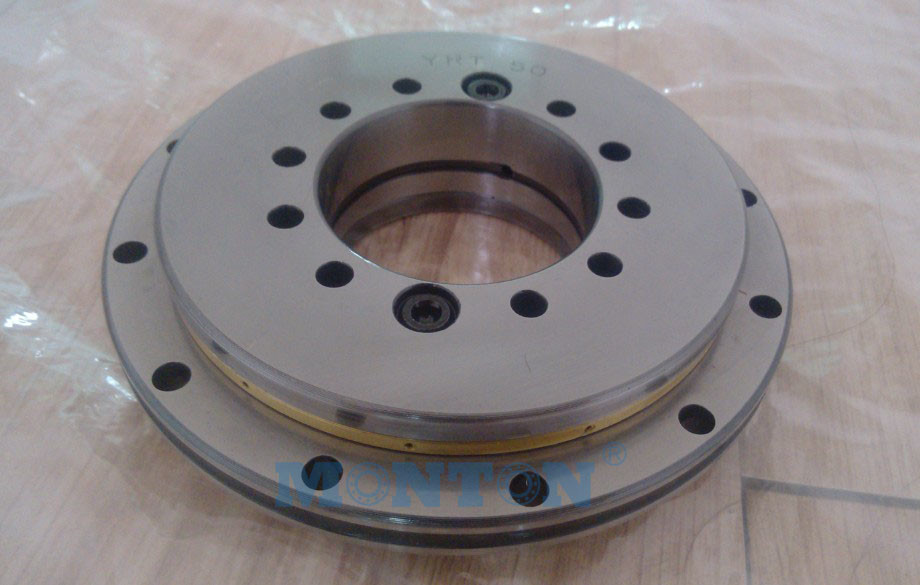

YRT100  yrt bearing manufacturers

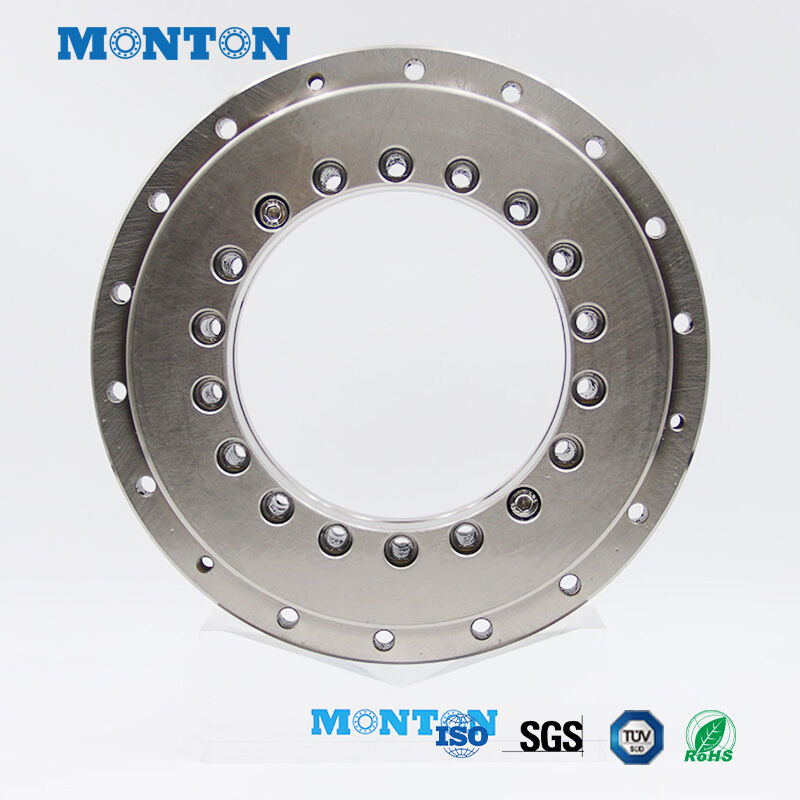

YRT100  yrt bearing manufacturers
