YRT950 china rotary table machine manufacturers

1 PCS
MOQ
USD
Price
YRT950  china rotary table machine manufacturers
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

industrial turntable bearings

,

heavy duty turntable bearings

Basic Infomation
Place of Origin: Luoyang
Brand Name: Monton
Model Number: YRT950
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: MoneyGram, Western Union, T/T, D/P, D/A, L/C
Supply Ability: 1000pcs/week
Product Description

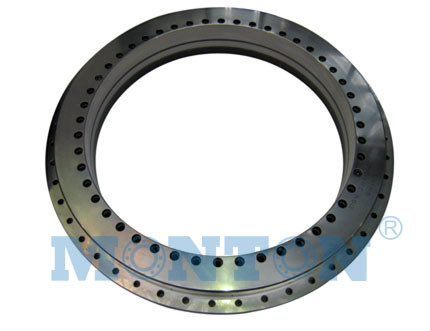

YRT950  china rotary table machine manufacturers 0YRT950  china rotary table machine manufacturers

bearing type Dimensions fixing holes Number of retaining screws
d D H H1 C D1 J J1 inner ring outer ring
unit: mm d1 d2 a qty d3 qty
mm mm
YRT950 950 1200 132 86 40 1130 990 1160 18 26 17 58 18 54 2



bearing type Extraction thread hole Number of pitches X angle of pitches Screw tightening torque Basic load rating Limiting speed Bearing frictional torque weight
axial radial
dynamic load static load dynamic load static load
MA2) Ca Coa Cr Cor grease
G qty qty×t Nm KN r/min Nm Kg
YRT950 M16 6 60×6° 284 1290 11400 530 2040 40 600 312



Machining tolerances for shafts
Bearings shaft diameter (mm) roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT950 950 0 -0.036 20 14 14 1.6



Machining tolerances for housings
Bearings (mm)housing diameter roundness(○) perpendicularity(⊥) parallelism(∥) roughness Ra
Nominal dimension upper lower t1(µm) t3(µm) t4(µm) Ra(µm)
YRT950 1200 +0.052 -0.014 24 16 16 1.6

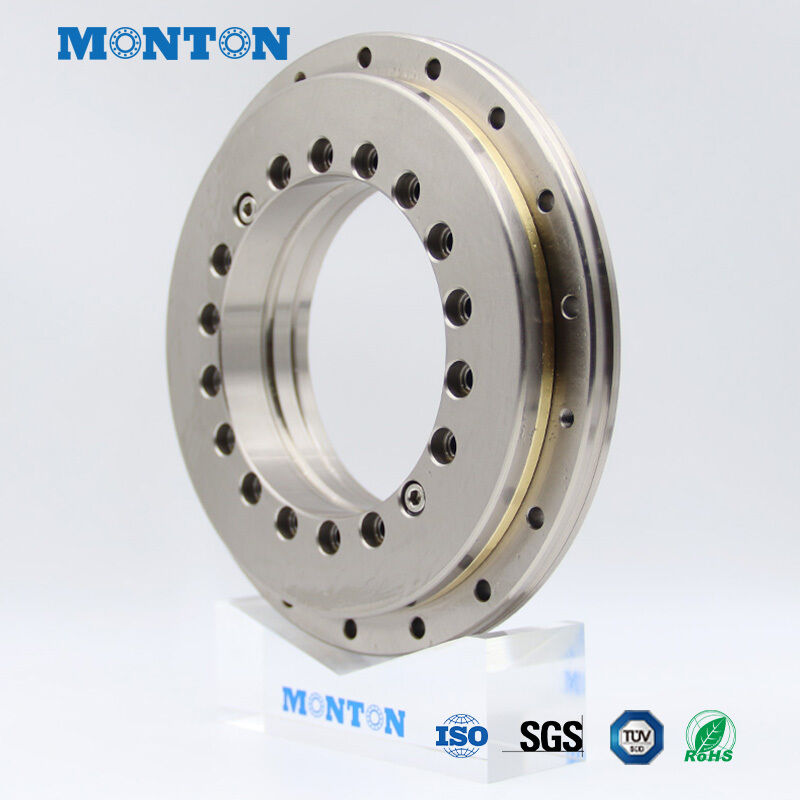

YRT950  china rotary table machine manufacturers 2

YRT950  china rotary table machine manufacturers 3
