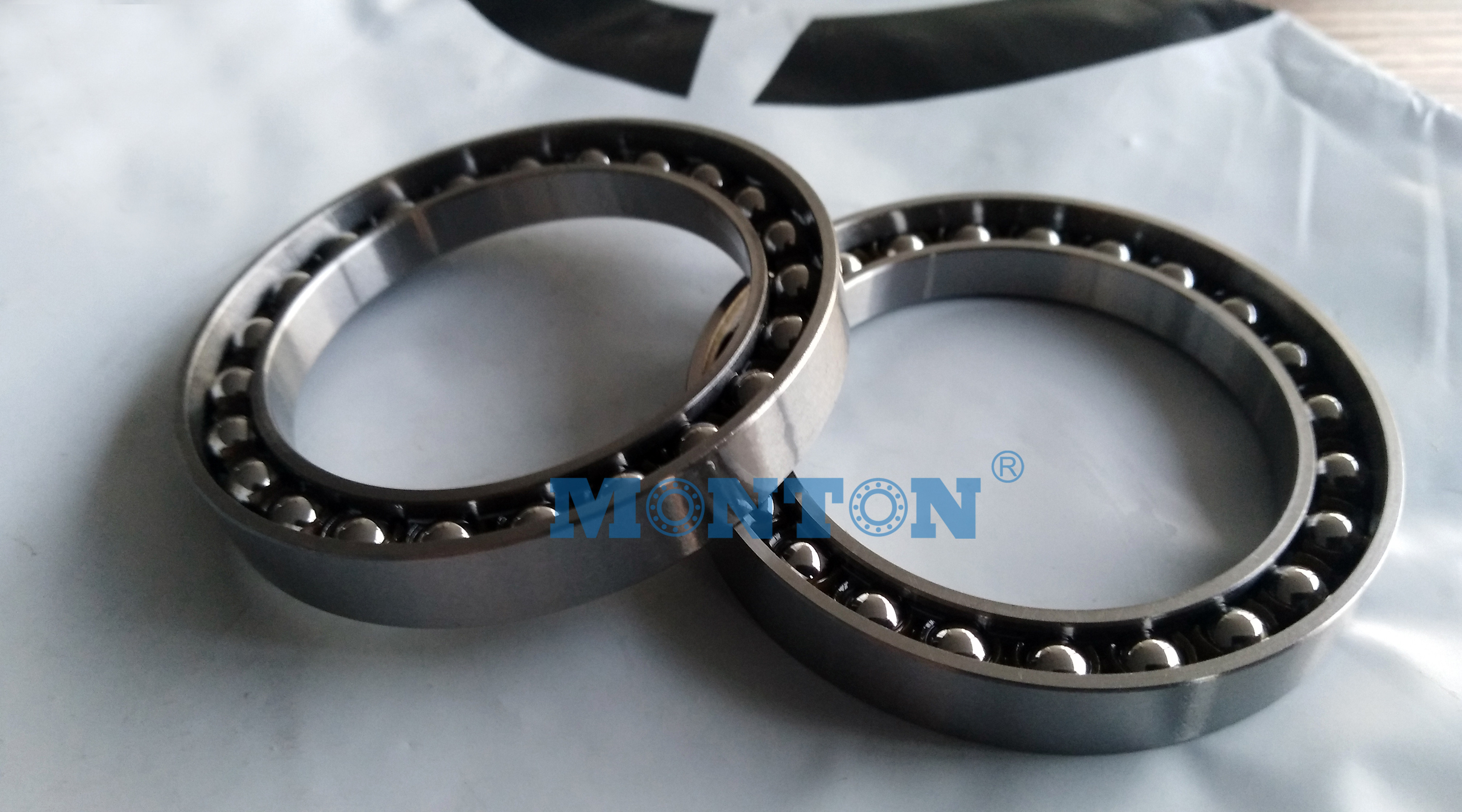

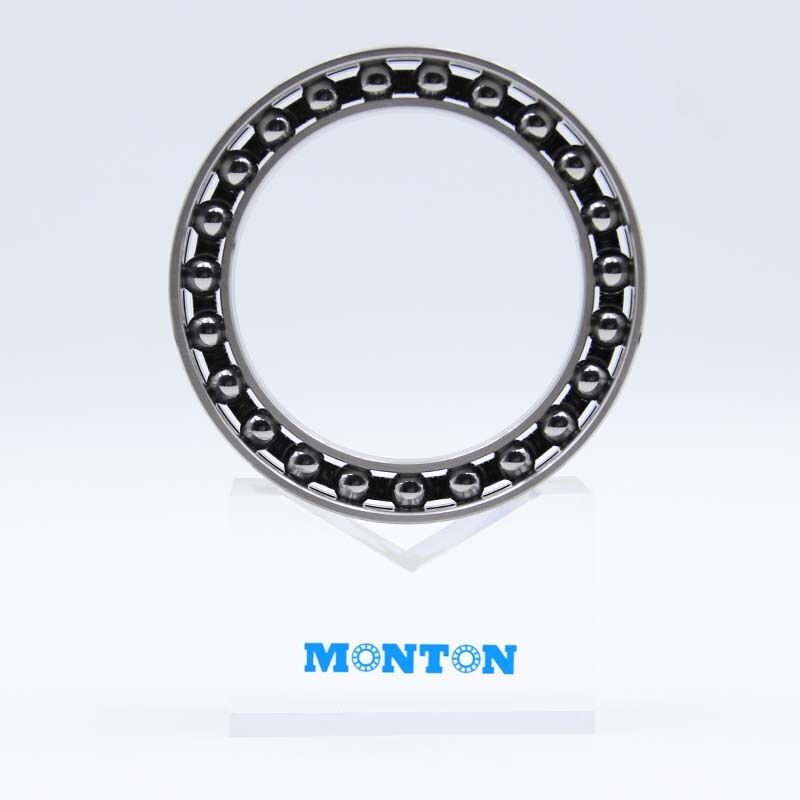

Harmonic Drive Bearings 61.35/45/9/6.3

No. Bearing Model Size Remark
D d B Outer /Inner
HDB61.35/45/9/6.3 φ61.35 61.35 45 9/6.3  20 Series





HDB6 1.35/45/9/6.3 Flexible Robots Bearings , Harmonics Drive Bearings 0



      A flexible bearing is the key component of a harmonic drive reducer. Thus, it is crucial to study load distribution and contact stress for the design and prediction of the fatigue life of flexible bearings. When a flexible bearing is assembled in a wave generator, pre-deformation occurs. In such a situation, rigid ring theory is not applicable. In this study, a multi-body contact model of a flexible bearing was developed with ANSYS and used to study the load distribution and contact pressure. The simulation results were verified using Hertz contact theory and elasticity theory. The analysis results showed that predeformation decreased the bearing region and increased the maximum load of the ball and contact stress. These results provide reliable theoretical bases for the design of flexible bearings.



Bearing Model Size Remark
D d B Outer /Inner
φ20 20 14.5 4
φ26.11 26.11 19.9 4
φ26.54 26.54 20.2 4
φ27.5 27.5 20.4 4.5
φ30 30 22 6
φ33.87 33.87 25 6.1/6.4
φ33.896 33.896 25.07 6.095/6.35 14 Series
φ34 34 25.5 5
φ34.52 34.52 26.2 5
φ34.7 34.7 26.2 5
φ35.5 35.5 26.5 6
φ38.6 38.6 28.4 6
φ40.1 40.1 30.1 6
φ41.7 41.7 30.24 6.2/6.7
φ41.72 41.72 30.295 6.16/6.67
φ41.722 41.722 30.3 5.16/6.68 17 series
φ42 42 33 8
φ48 48 35.5 8
φ48.2 48.2 35.5 8
φ48.3 48.3 35.9 8
φ49.03 49.03 35.5 7.2/8.1
φ49.06 49.06 35.55 7.2/8.1
φ49.07 49.07 35.56 7.23/8.1
φ49.073 49.073 35.56 7.24/8.13 20 Series
φ49.08 49.08
φ49.1 49.1 35.55 7.2/8.1
φ49.4 49.4 36.6 8
φ54 54 42.52 8.1
φ56 56 43 9
φ61.34 61.34 45.212 9/6.3
φ61.341 61.341 45.212 9.015/8.6
φ61.35 61.35 45 9/6.3
φ61.7 61.7 46.3 9
φ63 63 48 9.5
φ72 72 55 10
φ77.2 77.2 57 12
φ79.74 79.74 58.96 11.5
φ79.756 79.756 58.928 11.81/8.64 32 Series
φ92.5 92.5 68 15
φ95 95 71 15
φ96.5 96.5 72 15
φ98 98 73 15
816 110 80 16
φ123 123 92.5 18
φ125 125 94 18.5
919 130.434 96.954 25
φ156 156 118 24
φ192 192 144 30
