RB18025UUCC0P5 180*240*25Harmonic Drive Bearings Csf Harmonic Drive Special For Robot

1PCS
MOQ
USD
Price
RB18025UUCC0P5 180*240*25Harmonic Drive Bearings Csf Harmonic Drive Special For Robot
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

rotary table bearing

,

industrial turntable bearings

Basic Infomation
Place of Origin: Luoyang
Brand Name: MONTON
Certification: ISO9001
Model Number: RB18025UUCC0P5
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 1000pcs/week
Product Description

RB18025UUCC0P5

RB18025UUCC0P5



Shaft Diameter Bearings inner ring outer ring Roller pitch circle diameter width Greasing hole Chamfer Shoulder height Basic load rating(radial) weight
d D dp B B1 a-b r(min) ds Dh C C0 Kg
(mm) (mm) (mm) (mm) (mm) kN kN
180 RB18025 180 240 210 25 3.5-2 1.5 195 225 84 143 3.44



















































Model RB (Separable Outer Ring Type for Inner Ring Rotation)
Being the basic model of the Cross-Roller Ring, its outer ring is separable while the inner ring is integrated with the main body. This model is used in locations where the rotation accuracy of the inner ring is required. Major applications include the index table swiveling unit of machine tools.



Structure and Features
With the Cross-Roller Ring, cylindrical rollers are arranged with each roller perpendicular to the adjacent roller, in a 90° V groove, separated from each other by a spacer retainer. This design allows just one bearing to receive loads in all directions including radial, axial and moment loads. Since the Cross-Roller Ring achieves high rigidity despite the minimum possible dimensions of the inner and outer rings, it is optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, rotary units of manipulators, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines.
Concept of the Cross Roller Ring
The Cross-Roller Ring is a high-rigidity, compact, and easy-to-use product designed based on the
double cone roller bearing and angular contact ball bearing which had been popular.



Applications:
•Industrial Robotic arm,Reducer drive

•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc

RB18025UUCC0P5 180*240*25Harmonic Drive Bearings Csf Harmonic Drive Special For Robot 1

RB18025UUCC0P5 180*240*25Harmonic Drive Bearings Csf Harmonic Drive Special For Robot 2

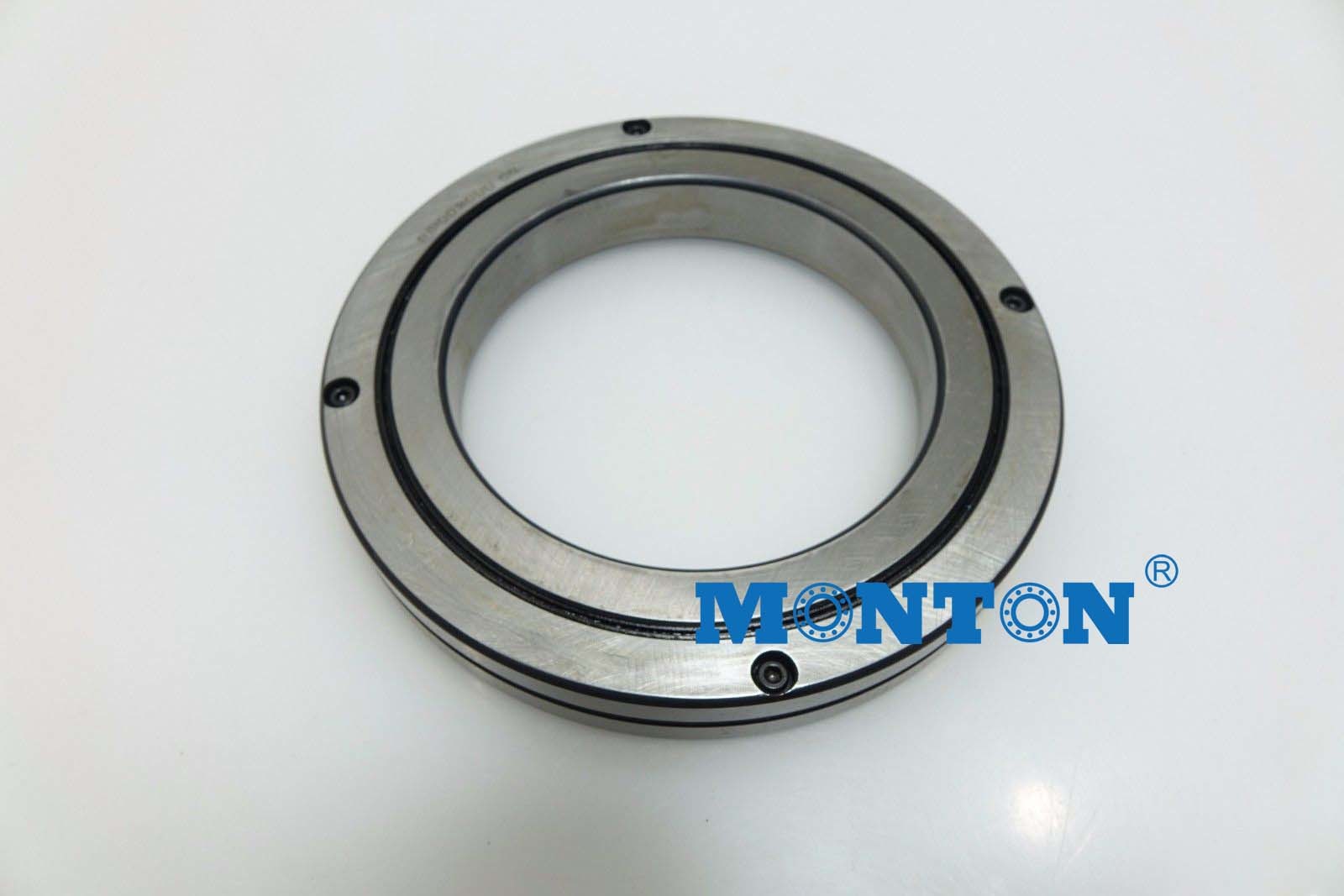

RB18025UUCC0P5 180*240*25Harmonic Drive Bearings Csf Harmonic Drive Special For Robot 3

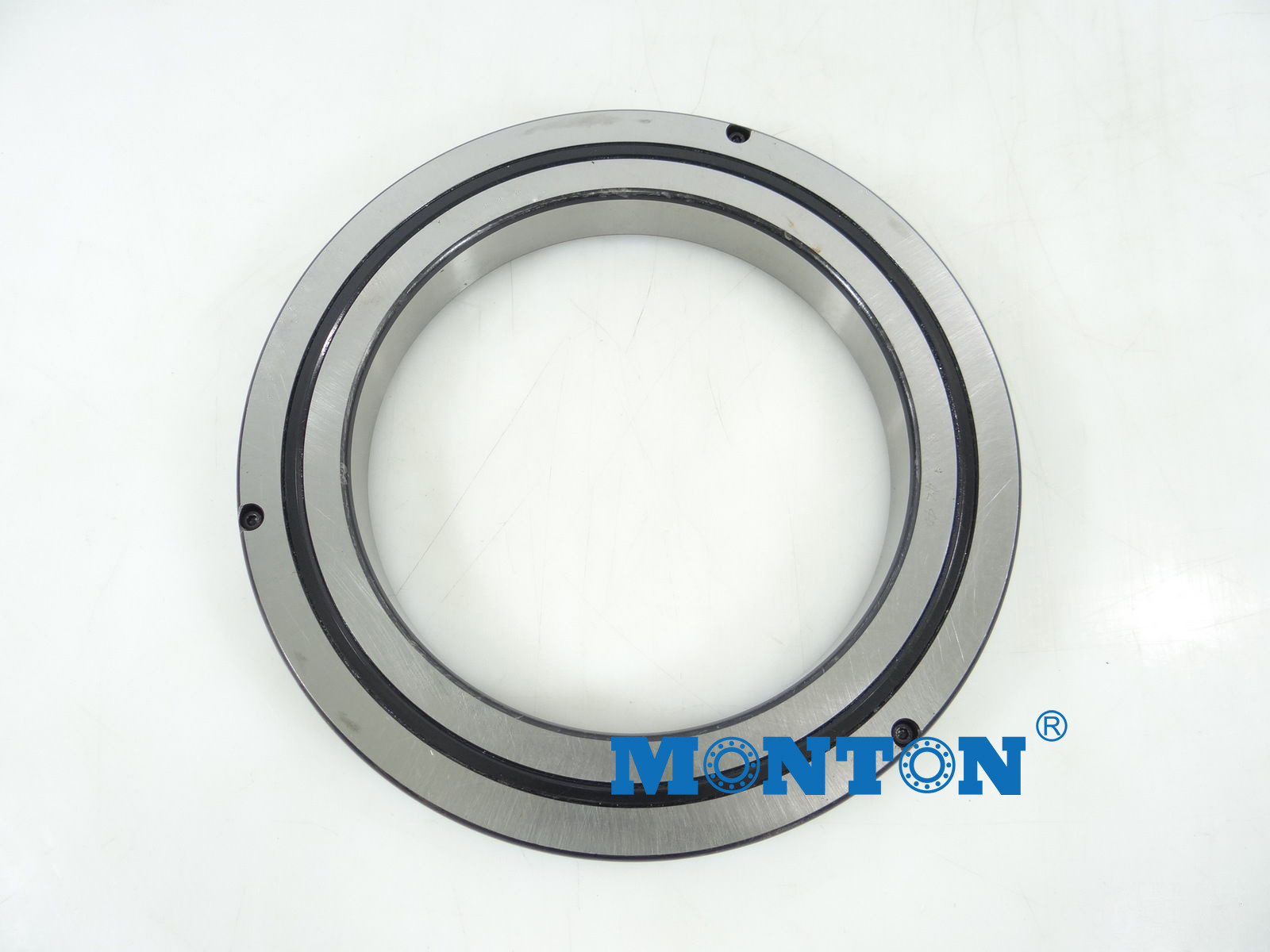

RB18025UUCC0P5 180*240*25Harmonic Drive Bearings Csf Harmonic Drive Special For Robot 4
