XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing Harmonic Gear Reducer For Robot

1
MOQ
USD
Price
XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing  Harmonic Gear Reducer For Robot
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

rotary table bearing

,

industrial turntable bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: XSU080258
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description
XSU080258
XSU080258
Identification number Main dimensions Basic load rating(axial) Basic load rating(radial) weight
inner ring outer ring width Installing hole Chamfer φLa φLi Ca C0a Cr Cor Kg
d D B nB r(min) KN KN KN KN
(mm) (mm) (mm)
XSU080258 220 295 25.4 24 1.5 280 235 84 375 54 151 5.1
























XSU Crossed roller bearing, sealed on both sides, greased,preloaded, centred on the inside and outside diameter,
bearing rings can be screw mounted directly on the adjacent construction.

Features Of Cross Roller Bearing
1.with excellent rotational accuracy
2. Installing simplifies operation
3. Bear large axial and radial loads
4.Significant savings in installation space
5. High speed capability
6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to hanges .
7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing
8. Optimization of preload, rigidity, high precision guide rollers running
9. Carburizing steel provides excellent impact resistance and surface abrasion resistance
10. Simple but adequate lubrication

Series Model No.
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,
XSU140544,XSU140644,XSU140744,XSU140844,XSU140944

Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc

Packing:
1.Vacuum package:40mm-200mm
2.Wooden box package:200mm-1500mm
Shipping:By air or By sea according to request.

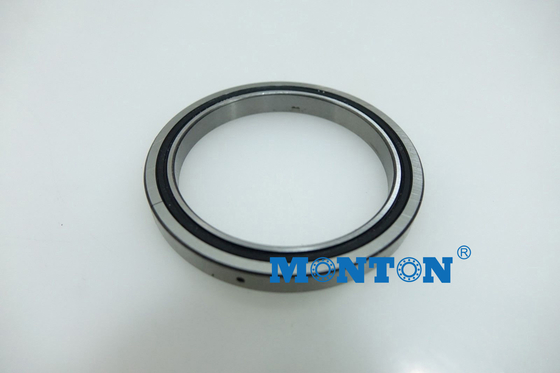

XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing  Harmonic Gear Reducer For Robot 1

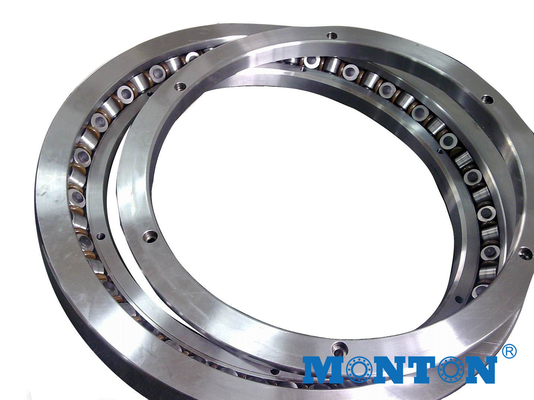

XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing  Harmonic Gear Reducer For Robot 2

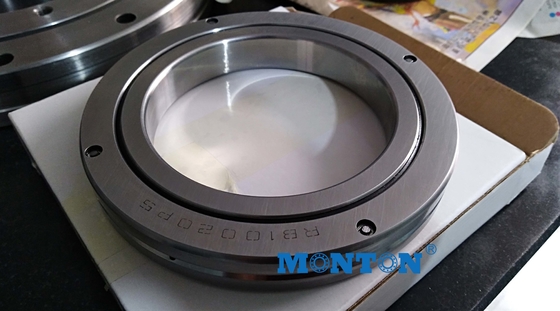

XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing  Harmonic Gear Reducer For Robot 3

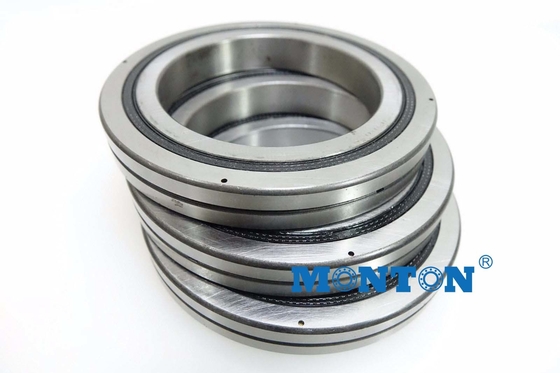

XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing  Harmonic Gear Reducer For Robot 4

XSU080258 220*295*25.4mm XSU Series Cross Roller Bearing  Harmonic Gear Reducer For Robot 5
