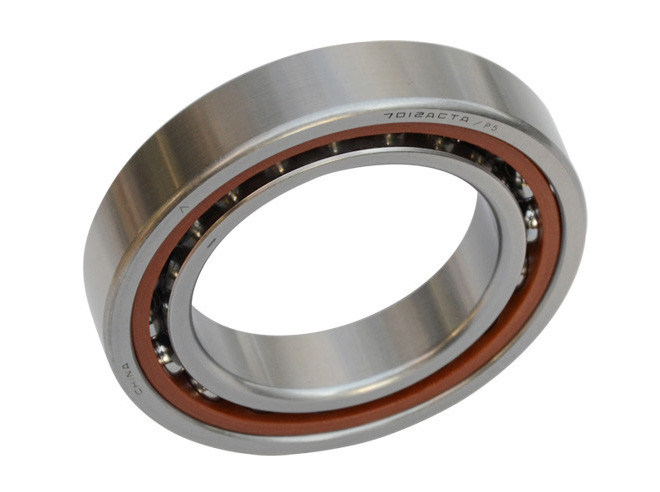

Angular contact ball bearings are also have lots of structures, single row angular direction, While double row angular contact ball bearings in DB or DF combination and four-point contact ball bearings can accommodate radial load and axial load in two directions. Angular contact ball bearings suit high-speed rotation and high-precision rotation. These bearings are mainly used in the fields like machine tool spindles, high frequency motors, oil pumps, air compressors, printing machines, etc. For four-point contact ball bearings are mostly used in the roller-boxes of rolling mills to carry axial load.
| Principal dimension | Basic load ratings | Designation | Function point a |
Abutment and fillet dimensions | Speed ratings | Weight kg |
||||||||
| d | D | B | r12 min | r34 min | dyc Cr |
stc Cor |
da min | Da max | ra max | Grease | Oil | |||
| 120 | 260 | 55 | 3 | 1.1 | 214 | 288 | B7324CM | 52.9 | 134 | 246 | 2.5 | 3400 | 4000 | 14.2 |
| 120 | 260 | 55 | 3 | 1.1 | 206 | 277 | B7324ACQ1 (146324Q) | 71.8 | 134 | 246 | 2.5 | 1800 | 2400 | 14 |
| 120 | 260 | 55 | 3 | 1.1 | 206 | 277 | B7324ACM | 71.8 | 134 | 246 | 2.5 | 1800 | 2400 | 14.2 |
| 110 | 240 | 50 | 3 | 1.1 | 164 | 212 | B7322BQ1 | 99.2 | 124 | 226 | 2.5 | 1800 | 2400 | 11.4 |
| 90 | 190 | 43 | 3 | 1.1 | 132 | 145 | B7318C | 40.3 | 104 | 176 | 2.5 | 4200 | 8800 | 4.9 |
| 120 | 215 | 40 | 2.1 | 1.1 | 204 | 239 | B7224ACQ1/HAS0(146224QT ) | 59 | 132 | 203 | 2 | 2600 | 3600 | 6.45 |
| 80 | 140 | 26 | 2 | 1 | 75 | 83 | B7216C | 27.7 | 90 | 130 | 2 | 6000 | 8000 | 1.47 |
| 110 | 170 | 28 | 2 | 1 | 76 | 101 | B7022AC | 47 | 120 | 160 | 2 | 3200 | 4200 | 2.03 |
| 90 | 225 | 54 | 4 | 1.5 | 179 | 214 | 7418ACM | 63.8 | 108 | 207 | 3 | 2900 | 4000 | 11.5 |
| 80 | 200 | 48 | 3 | 1.1 | 152 | 169 | 7416ACM | 56.7 | 94 | 186 | 2.5 | 2600 | 3800 | 8.6 |
| 80 | 200 | 48 | 3 | 1.1 | 152 | 169 | 7416ACJ | 56.7 | 94 | 186 | 2.5 | 2100 | 3000 | 7.22 |
| 80 | 200 | 48 | 3 | 1.1 | 152 | 169 | 7416AC | 56.7 | 94 | 186 | 2.5 | 2600 | 3800 | 7.18 |
| 130 | 280 | 58 | 4 | 1.5 | 192 | 268 | 7326B | 115.1 | 148 | 262 | 3 | 1800 | 2400 | 17.9 |
| 120 | 260 | 55 | 3 | 1.1 | 193 | 262 | 7324B | 107.2 | 134 | 246 | 2.5 | 1600 | 2200 | 14.6 |
| 120 | 260 | 55 | 3 | 1.1 | 204 | 269 | 7324AC | 71.8 | 134 | 246 | 2.5 | 2200 | 3000 | 13.7 |
| 110 | 240 | 50 | 3 | 1.1 | 164 | 212 | 7322BM | 99.3 | 124 | 226 | 2.5 | 2200 | 3000 | 11.5 |
| 110 | 240 | 50 | 3 | 1.1 | 164 | 212 | 7322B | 99.3 | 124 | 226 | 2.5 | 1800 | 2400 | 9.84 |
| 110 | 240 | 50 | 3 | 1.1 | 184 | 231 | 7322ACM | 65.8 | 124 | 226 | 2.5 | 2600 | 3400 | 9.97 |
| 105 | 225 | 49 | 3 | 1.1 | 155 | 193 | 7321BM | 93.7 | 119 | 211 | 2.5 | 2400 | 3200 | 9.51 |
| 100 | 215 | 47 | 3 | 1.1 | 146 | 177 | 7320BT | 89.6 | 114 | 201 | 2.5 | 1900 | 2700 | 7.58 |
| 100 | 215 | 47 | 3 | 1.1 | 146 | 177 | 7320BM | 89.6 | 114 | 201 | 2.5 | 2400 | 3400 | 8.41 |
| 100 | 215 | 47 | 3 | 1.1 | 146 | 177 | 7320B | 89.6 | 114 | 201 | 2.5 | 1900 | 2700 | 7.29 |
| 100 | 215 | 47 | 3 | 1.1 | 164 | 199 | 7320ACM | 60.2 | 114 | 201 | 2.5 | 2800 | 3800 | 9.61 |
| 95 | 200 | 45 | 3 | 1.1 | 151 | 174 | 7319CM | 42.3 | 109 | 186 | 2.5 | 5000 | 6000 | 6.67 |
| 95 | 200 | 45 | 3 | 1.1 | 145 | 167 | 7319ACM | 56.9 | 109 | 186 | 2.5 | 3000 | 4000 | 6.67 |
| 90 | 190 | 43 | 3 | 1.1 | 141 | 158 | 7318CM | 40.3 | 104 | 176 | 2.5 | 5200 | 6300 | 5.79 |
| 90 | 190 | 43 | 3 | 1.1 | 120 | 135 | 7318BM | 80.2 | 104 | 176 | 2.5 | 2800 | 3800 | 5.26 |
