6305-H-T35D 25*62*17mm cryogenic ball bearings

1 PCS
MOQ
Ask
Price
6305-H-T35D 25*62*17mm cryogenic ball bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: Luoyang
Brand Name: MONTON
Certification: ISO9001
Model Number: 6305-H-T35D
Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 5-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/Week
Product Description

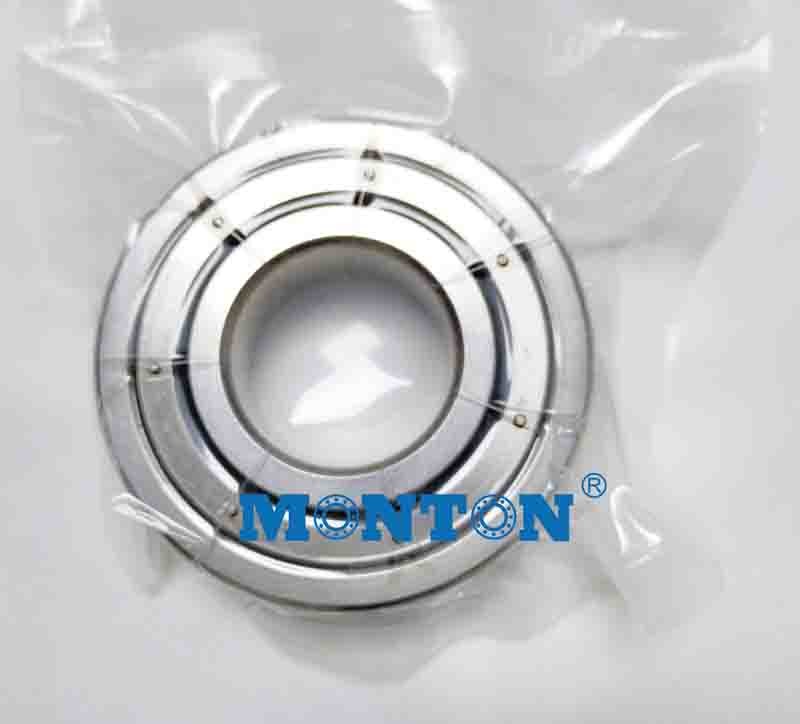

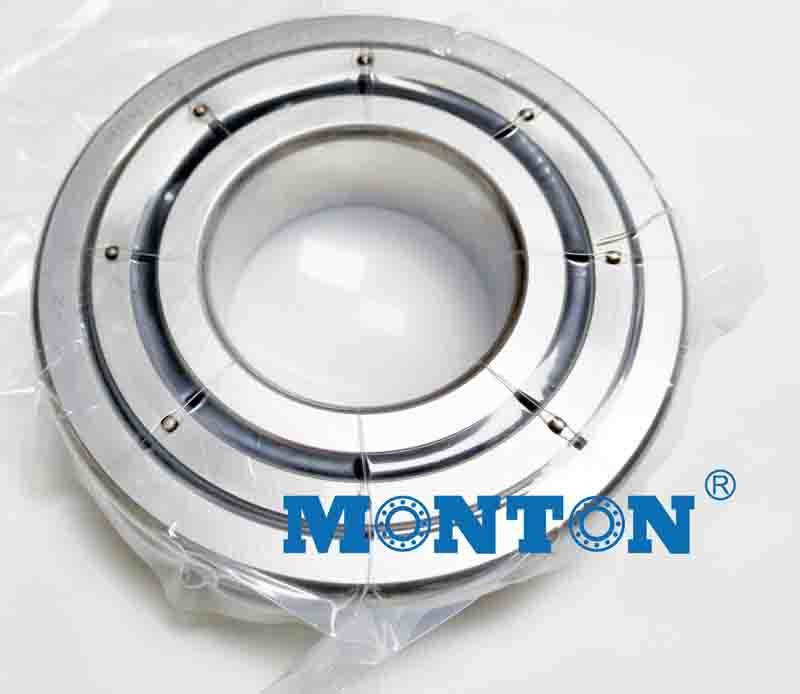

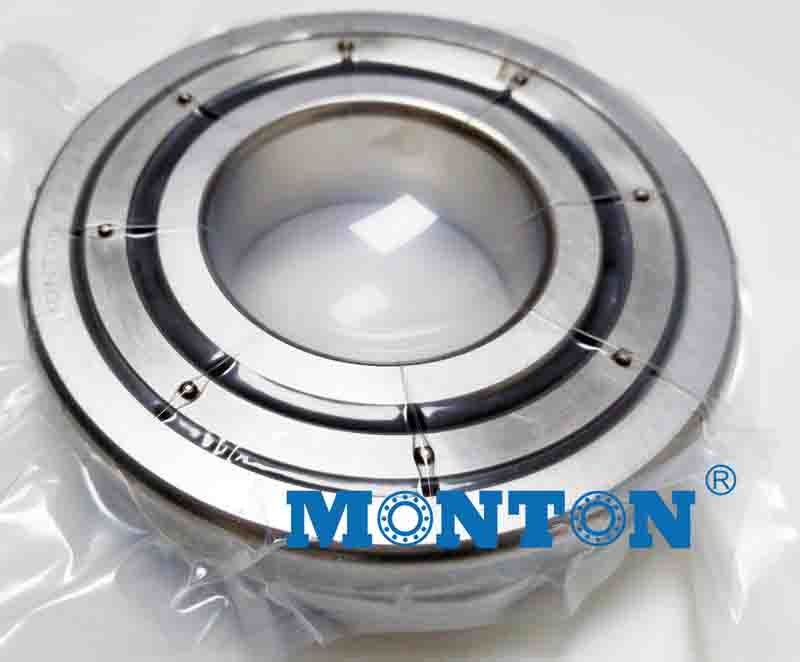

6305-H-T35D 25*62*17mm cryogenic ball bearings



Description Dimension Loading(KN) Speed
(r/min)
Bearing d D B rsmin Cr Cor
6305-H-T35D 25 62 17 1.1 22 11 22000



LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.



LNG pump bearings including:

1.Angular contact ball bearings

2.Deep groove ball bearings

3.Cylindrical roller bearings





Operating Conditions:
› Speed: 1160 rpm – 3600 rpm
› Gas temperature: –196° C up to 0° C
› Mainly axial load
› Very poor lubrication



Condition Description

  • Arduous Environments

  • Corrosive Environment

  • High Speed

  • Low temperature

Industry

  • Chemical and Pharmaceutical

  • Petrochemical

Features

  • Stainless steel inner and outer rings

  • Stainless steel rolling elements

  • 2 pieces riveted fluororesin cage

Benefits

  • Corrosion resistant

  • Self-lubricating cage

  • High speed (up to 3600 rpm)

  • Extended life

LNG pump bearings

low temperature bearings for LNG pump

low temperature bearings for LNG pump



Now we have the below codes under production and have stock:



6205-H-T35D

6206-H-T35D

6207-H-T35D

6208-H-T35D

6209-H-T35D

6210-H-T35D

6211-H-T35D

6213-H-T35D

6215-H-T35D

6217-H-T35D

6305-H-T35D

6308-H-T35D

6311-H-T35D

6314-H-T35D

6318-H-T35D

6320-H-T35D

6322-H-T35D

6328-H-T35D






Feature:

Stainless steel rings

Ceramic balls

Ptfe cage

Long life



Now monton have developed the low temperature angular contact ball bearings and low temperature deep goove ball bearings.Our bearings have been widely used by our customers to replace NSK bearings.



We welcome you here if you have any inquires or questions.
