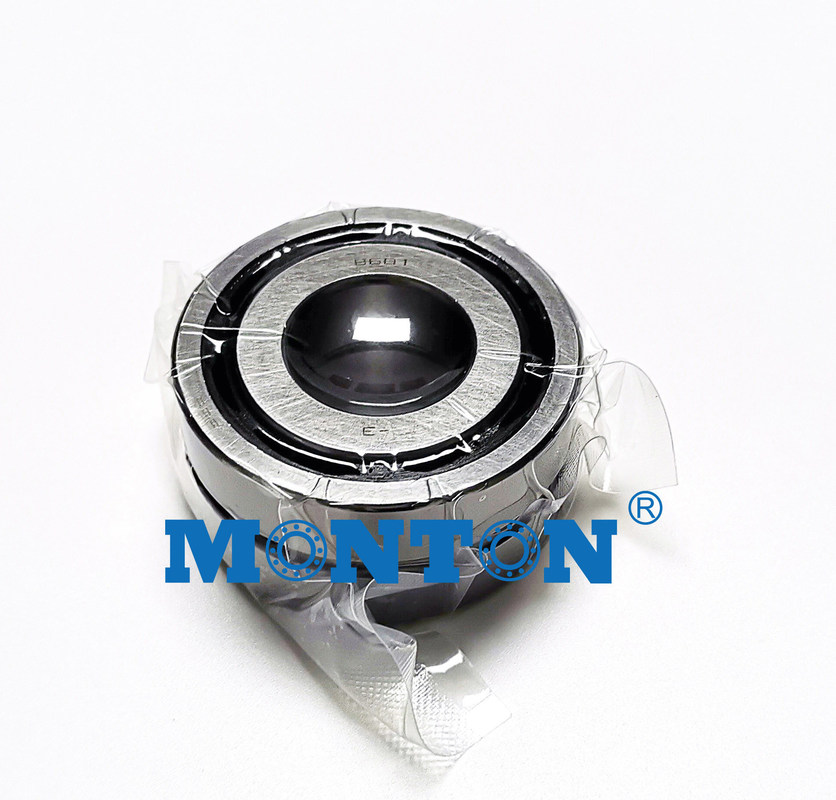

ZKLN5090-2Z 50*90*34mm Axial angular contact ball bearings

1
MOQ
Ask
Price
ZKLN5090-2Z	50*90*34mm  Axial angular contact ball bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Bearing: ZKLN5090-2Z
D: 50mm
D: 90mm
B: 34mm
Weight: 0.9KG
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: ZKLN5090-2Z
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

ZKLN5090-2Z 50*90*34mm Axial angular contact ball bearings



Designation Dimensions Mounting dimensions Basic load ratings
axial
Recommended precision locknut Required locknut force3)
axial
N
Mass
m
= kg
d D
–0,010
B
–0,25
d1 r
min.
r1
min.
Da
max.
da
min.
dyn. Ca
N
stat.
C0a N
For radial locking For axial locking Tightening torque4)
MA
Nm
ZKLN5090-2Z 50 90 34 72 0 0.6 82 63 51000 126000 ZM50 AM50 85 16280 0.9





ZKLN5090-2Z	50*90*34mm  Axial angular contact ball bearings 0

ZKLN5090-2Z	50*90*34mm  Axial angular contact ball bearings 1



ZKLN5090-2Z	50*90*34mm  Axial angular contact ball bearings 2



Axial angular contact ball bearings are precision bearings for supporting screw drives. Depending on the series, they can support high radial forces as well as axial forces from one or both sides.
The inner ring is matched to the ball and cage assemblies and the outer ring. As a result, the bearings can be set to a defined axial preload. Contact seals protect the rolling element system against
contamination and moisture. For higher speeds, gap seals can be used.
The bearings are available with and without fixing holes in the outer ring. Bearings with holes are screw mounted directly on the adjacent construction. This solution is particularly economical since there is no need for the locating bore otherwise required or for the bearing cover with the associated matching work.
For applications in the handling sector, for woodworking machinery and transport type screw drives, a bearing arrangement with a lower level of precision is often sufficient. For this purpose, there are versions with less stringent tolerances.
