M14 25.07*33.896*6.095mm customized robotics slewing bearings

1pcs
MOQ
M14	25.07*33.896*6.095mm customized robotics slewing bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15SiMn
Type: Ball
Product Name: 3E806KAT2 30*40*6mm Harmonic Reducer Bearing Manufacturers
Application: Robots,Cnc Machining Parts
Structure: Deep Groove
Seals Type: Open
Service: OEM Customized Services
Precision Rating: P4,P 0 6 5 4 2
Number Of Row: Single Row
Feature: High Speed Ball Bearings
Bore Size: 10- 500 Mm
Package: Plastic+anti-rust Paper+box+wooden Box
Usage: Install On Load Bearing Wall
Cage: Nylon Cage
Outside Diameter: 10-500mm
Basic Infomation
Place of Origin: Luo yang
Brand Name: MONTON
Certification: 9001
Model Number: M14
Payment & Shipping Terms
Delivery Time: 35days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

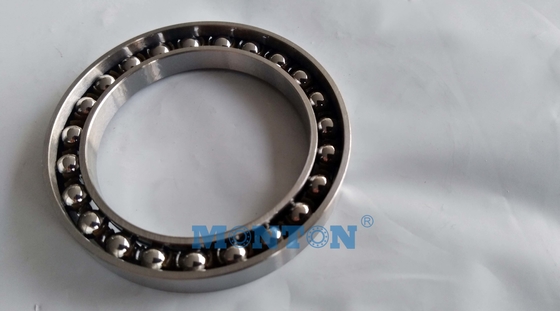

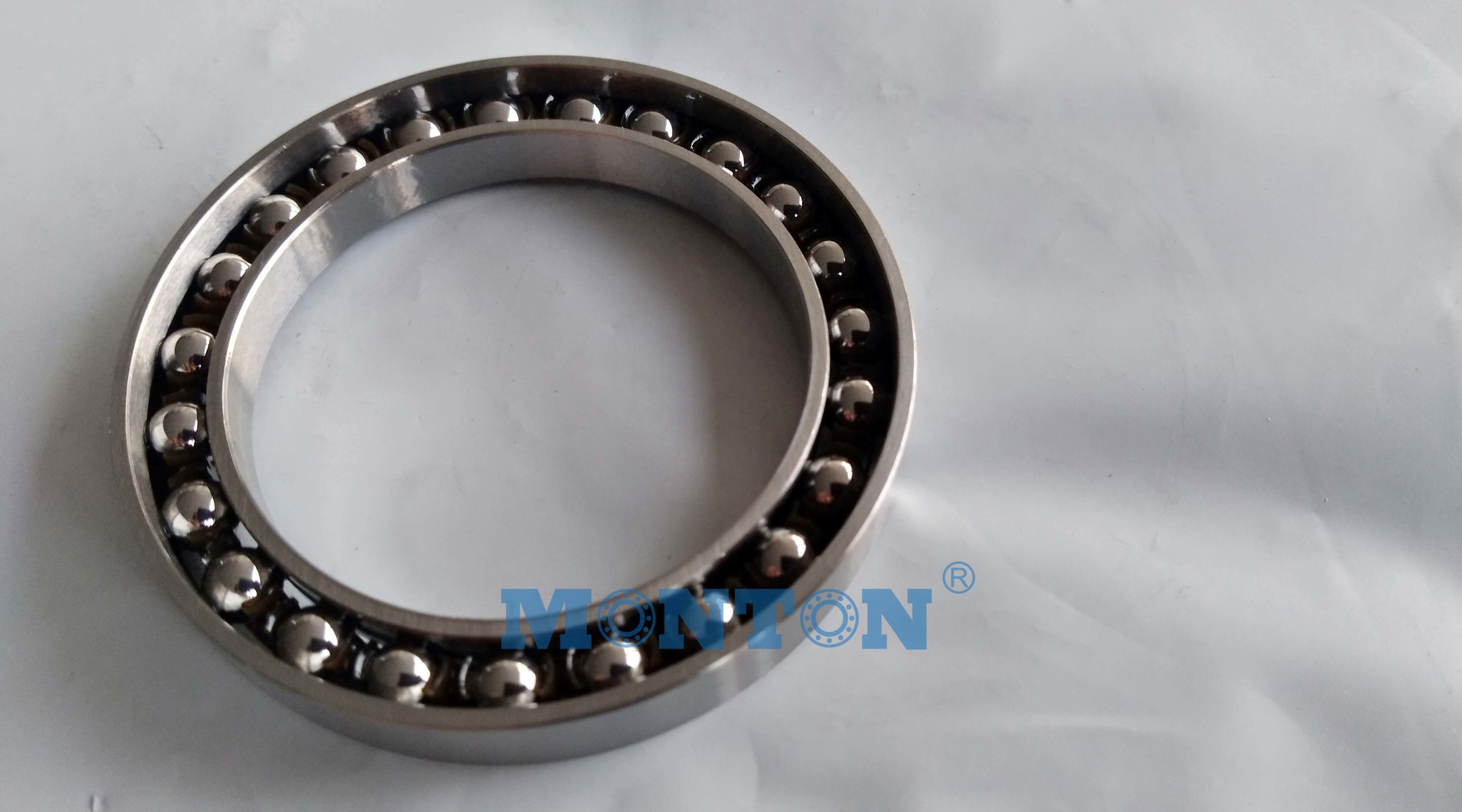

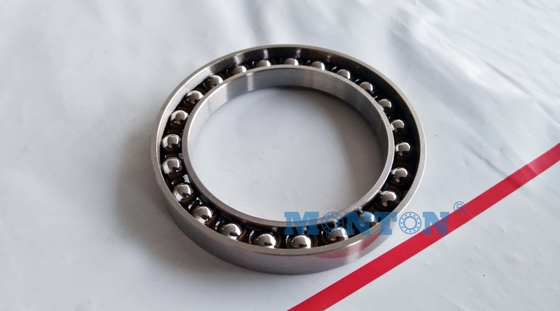

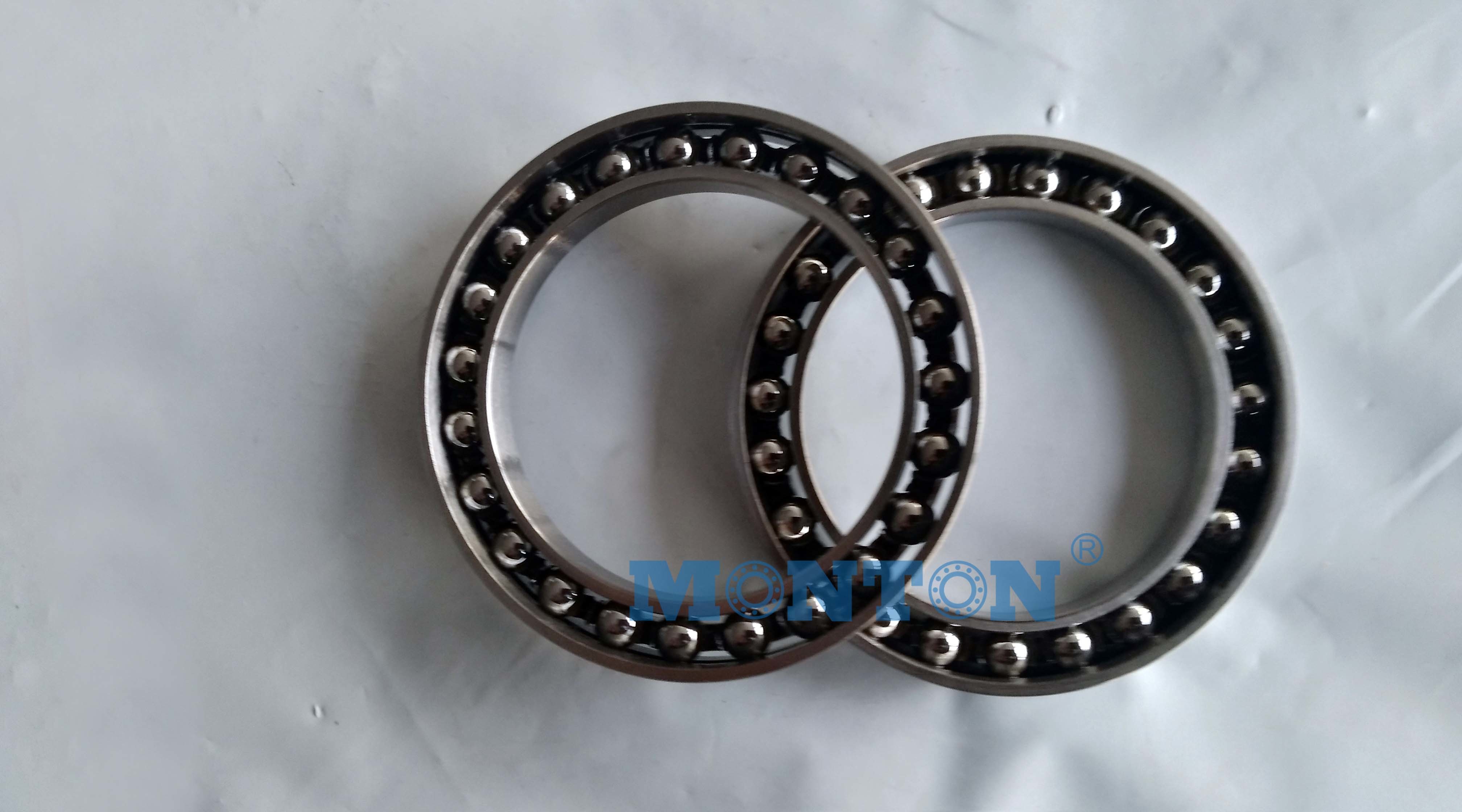

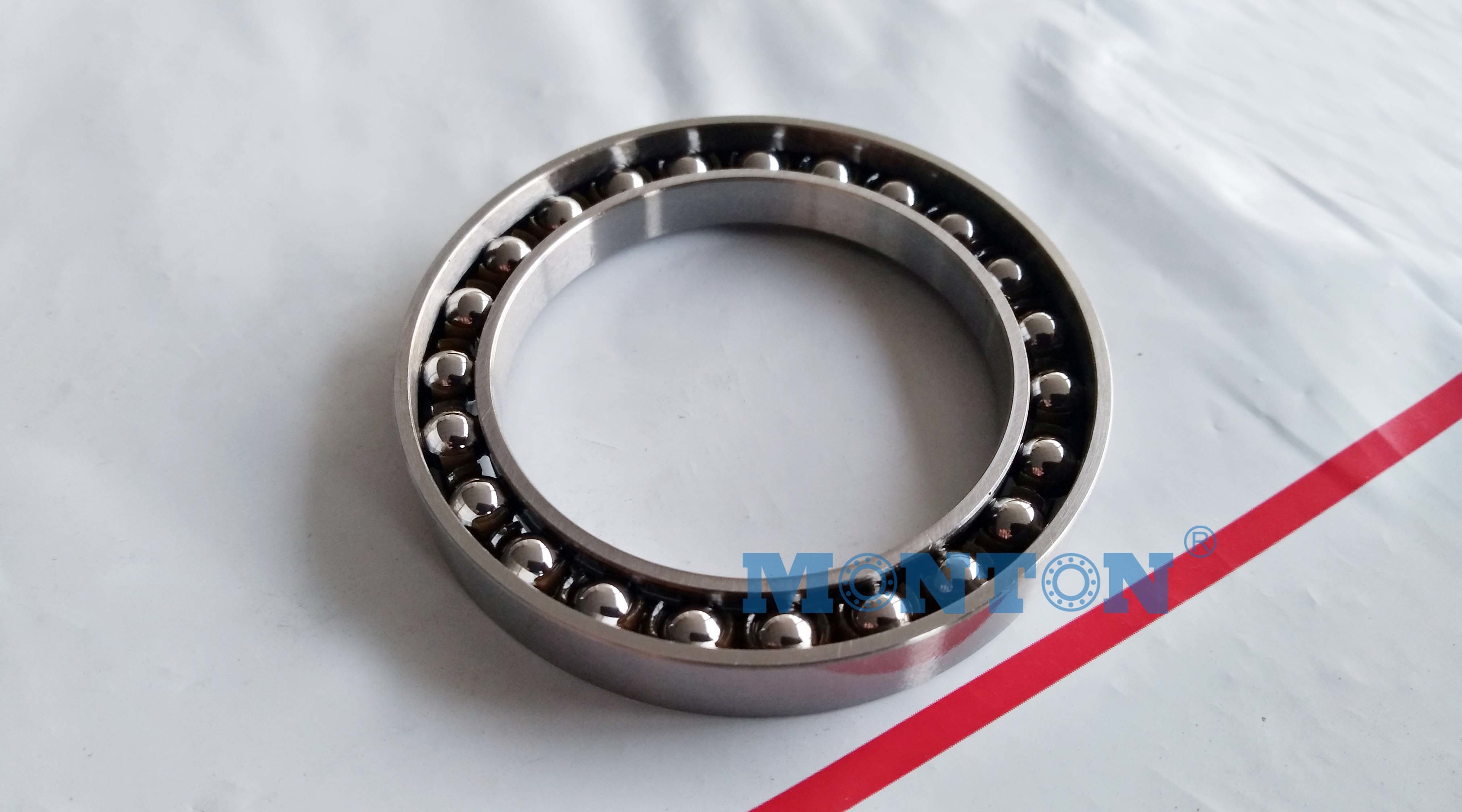

M14 25.07*33.896*6.095mm customized robotics slewing bearings

Bearing Inner ring Outer ring Width Dynamic load rating Static load rating Radial Deformation Input rotate speed Output torque
Model ID OD B Cr Cor Max. mm r/min N.m
M14 25.07 33.896 6.095 5.53 4.73 0.2 3000 12



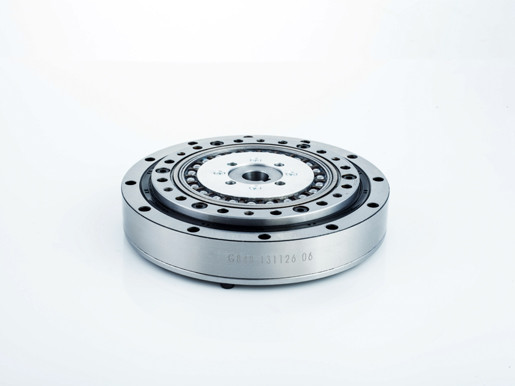

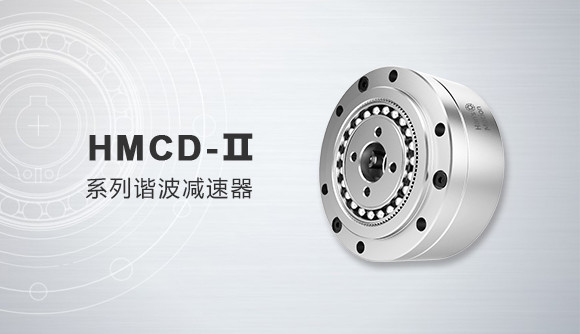

Robots Flexible bearings(harmonic drive strain wave gear bearing)



Flexible bearings for harmonic reducer are mainly used in harmonic reducer. Harmonic transmission includes three basic components: wave generator, flexible wheel, rigid wheel and flexible bearing. Flexible bearings are the core components, and the transmission meets the performance requirements of high deceleration ratio through the elastic deformation of bearings.



In the work of flexible bearing, the inner ring is installed on the elliptical cam, the outer ring is installed on the flexible wheel, and the elastic deformation occurs with the rotation of the cam, which not only bears the cyclic stress load, but also bears the alternating stress load.


These points put forward high requirements for the design and manufacture of bearing inner ring and outer ring and cage, and only a few enterprises such as Japan and the United States can produce it. Luoyang Monton Flexible Bearing has reached the advanced level of design and manufacture of flexible bearings for harmonic transmission. The design of flexible bearing has formed a complete theoretical system, the manufacturing technology of the product is becoming more and more perfect, mature, and the product quality is becoming more and more stable. The 3E series harmonic drive reducer flexible bearing has been successfully applied to the harmonic drive device of "Shenzhou" and series spaceship, which has contributed to my manned spaceflight industry.



Because the inner ring of the flexible rolling bearing is tightly sheathed with the rigid cam of the wave generator. Therefore, it can be regarded as a rigid elliptical ring, the rolling body (generally a ball) is a particle with concentrated mass connected with the inner and outer rings through the spring, and the outer ring is an elastic thin-wall ring, and its original curve is the inner isometric curve of the original curve of the flexible wheel.

M14	25.07*33.896*6.095mm customized robotics slewing bearings 1

Harmonic drive transmission consists of three basic components: wave generator, flex spline, Circular Spline and flexible bearing. Among them, the flexible bearing is the core component, and the transmission achieves the performance requirement of high deceleration ratio through the elastic deformation of the bearing.







When the flexible bearing is in operation, the inner ring is mounted/installed on the elliptical cam, which bears the cyclic stress load during the work; while the outer ring is mounted/installed on the flexible wheel, and elastically deforms with the rotation of the cam during the work, which not only bears the cyclic stress load, but also withstands the alternating stress load.
