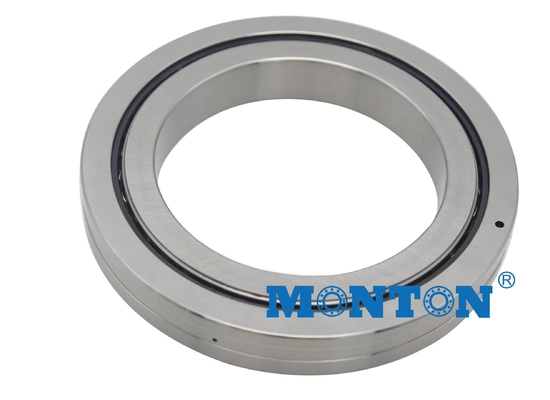

CRBH208AUU 20*36*8mm Super slim crossed roller bearing for compact surveillance camera
Shaft diameter | Identification | Main dimensions | Mounting dimensions (mm) | Basic dynamic load rating | Basic static load rating | weight | ||||
(mm) | ||||||||||
inner ring | outer diameter | width | Chamfer | da | Da | C | Co | (Kg) | ||
r | (N) | (N) | ||||||||
(mm) | d | D | B | (min) | ||||||
20 | CRBH208A | 20 | 36 | 8 | 0.3 | 24 | 31 | 2910 | 2430 | 0.04 |
CRBHHigh Rigidity Type Crossed Roller Bearings
Both inner and outer rings have a solid one-piece construction. Therefore, high accuracy and high rigidity are achieved, and mounting errors can be minimized. As separators are incorporated between the cylindrical rollers for smooth rotation, these bearings are suitable for applications where rotational speed is comparatively high.
