10 - 1000 Mm Spherical Double Row Roller Bearing With Brass / Steel / Nylon Cage

1
MOQ
USD
Price
10 - 1000 Mm Spherical Double Row Roller Bearing With Brass / Steel / Nylon Cage
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15SiMn Or GCr15 Or Other Material
Accuracy: P0 Or P6 Or P5
Market: Europe Or USA Or Russia Or Turkey
Dimension: 360*540*180mm
Structure: Double Row Spherical Roller Bearing Or Single Row Spherical Roller Bearing
Seal: Open Or Sealed
Cage: Brass Or Steel Or Nylon
Inner Structure: Improved Inner Structure With Long Life
Heat Treatment: Bainite/salt Bath
Production Range: 10~1000mm
High Light:

brass cage bearings

,

stainless steel spherical bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 23060CCK/W33
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

Spherical roller bearings



Bearing Model 23060 CC/W33
Structure Steel Cage Spherical Roller Bearing
Size ( ID x OD x B ) mm 300x460x118mm
ID (mm) 300
OD (mm) 460
Thickness (mm) 118
Weight / Mass (KG) 72.00KG

Cylindrical Bore 23060CC/W33 Spherical Roller Bearing 23060CCK/W33 300x460x118mm

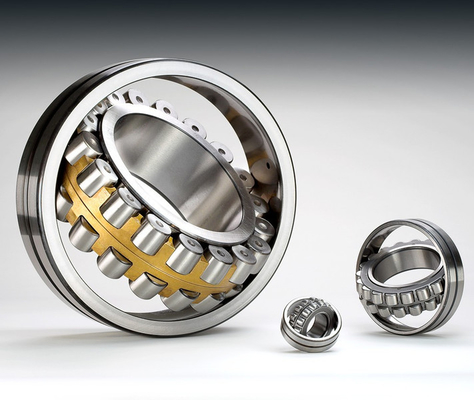

Double Row Spherical Roller Bearing
Double Spherical Roller Bearings from us consists of a plain bearing, with a ball pushing, inside a cylindrical housing. These cylindrical housing may have a liner supplied from different material which minimizes friction or provides self lubrication. For different load capacity and lubrication requirement many balls or linear materials are available. These spherical bearings are maintenance free and are suitable for applications that involve swivel movement, high alternating loads, very high radial loads with a unilateral load direction and high shock loads.

Physical Characteristics
- Large bores
- More contact area
- Inner rings to resist cracking
- Allowance for static or dynamic misalignment
- Expansion capabilities

Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.

Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.

Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.

C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring centred on the inner ring

EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring centred on the inner ring and reinforced roller complement.

CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centred on the inner ring

CAF-- As CA, but with a steel cage.

ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring, guide ring centred on the inner ring.

ECAF-- As ECA, but with a steel cage.

E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring

CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring

Features:

  • Double row spherical roller bearing for applications that support radial and oscillating axial loads
  • C4 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees F
  • Straight bore for fitting to a conventional cylindrical shaft
  • Outer ring-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
  • Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place



Bearing

Model

d

(mm)

D

(mm)

B

(mm)

23022CC 23022CA 23022-E1-XL-TVPB 110 170 45
23024CC 23024CA 23024-E1-XL-TVPB 120 180 46
23026CC 23026CA 23026-E1-XL-TVPB 130 200 52
23028CC 23028CA 23028-E1-XL-TVPB 140 210 53
23030CC 23030CA 23030-E1-XL-TVPB 150 225 56
23032CC 23032CA 23032-E1-XL-TVPB 160 240 60
23034CC 23034CA 23034-E1-XL-TVPB 170 260 67
23036CC 23036CA 23036-E1-XL-TVPB 180 280 74
23038CC 23038CA 23038-E1-XL-TVPB 190 290 75
23040CC 23040CA 23040-E1-XL-TVPB 200 310 82
23044CC 23044CA 23044-BE-XL 220 340 90
23048CC 23048CA 23048-BE-XL 240 360 92
23052CC 23052CA 23052-BE-XL 260 400 104
23056CC 23056CA 23056-BE-XL 280 420 106
23060CC 23060CA 23060-BE-XL 300 460 118
23120CC 23120CA 23120-E1-XL-TVPB 100 165 52
23122CC 23122CA 23122-E1-XL-TVPB 110 180 56
23124CC 23124CA 23124-E1-XL-TVPB 120 200 62
23126CC 23126CA 23126-E1-XL-TVPB 130 210 64
23128CC 23128CA 23128-E1-XL-TVPB 140 225 68
23130CC 23130CA 23130-E1-XL-TVPB 150 250 80
23132CC 23132CA 23132-E1-XL-TVPB 160 270 86
23134CC 23134CA 23134-E1-XL-TVPB 170 280 88
23136CC 23136CA 23136-E1-XL-TVPB 180 300 96
23138CC 23138CA 23138-E1-XL-TVPB 190 320 104
23140CC 23140CA 23140-BE-XL 200 340 112
23144CC 23144CA 23144-BE-XL 220 370 120
23148CC 23148CA 23148-BE-XL 240 400 128
23152CC 23152CA 23152-BE-XL 260 440 144
23156CC 23156CA 23156-BE-XL 280 460 146
