| Prducts | Thrust Needle roller bearing |
| Brand | Monton |
| Model | ZARN-2557 |
| Precision | P4 P5 |
| Clearance | C3 C4 |
| Quality standard | ISO9001:2000 standard |
| Service | OEM service such as DMG,FFG,etc |
| Delivery date | Normally ready goods and stock |
| Payment terms |
A:100% L/C at sight B:30% T/T in advance .70% against copy of B/L C:Western Union D:Paypal |
| Application | Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery |
| Package |
1.Industrial packing:Plastic tubes/Outer cartons/Pallets 2.Single box packing:Single box/Outer cartons/Pallets 3.According to your request |

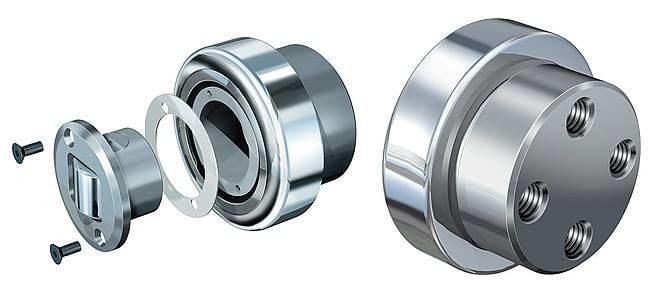

Needle roller bearings have an internal design based on needle or cylindrical roller bearings. They have a thick-walled outer ring, which enables them to accommodate high radial loads, while reducing distortion and bending stresses.The outer ring running surface is crowned as standard. However, support rollers with a cylindrical (flat) running surface are also available.
| Part NO. | Weight/kg | Part NO. | Weight/kg | Dimensions/mm | |||
| d | D | H | C | ||||
| ZARN 1545TN | 0.34 | ZARN 1545LTN | 0.37 | 14 | 45 | 40 | 16 |
| ZARN 1747TN | 0.37 | ZARN 1747LTN | 0.41 | 17 | 47 | 43 | 16 |
| ZARN 2052TN | 0.41 | ZARN 2052LTN | 0.46 | 20 | 52 | 46 | 16 |
| ZARN 2062TN | 0.87 | ZARN 2062LTN | 0.99 | 20 | 62 | 60 | 20 |
| ZARN 2557TN | 0.53 | ZARN 2557LTN | 0.59 | 25 | 57 | 50 | 20 |
| ZARN 2572TN | 1.17 | ZARN 2572LTN | 1.32 | 25 | 72 | 60 | 20 |
| ZARN 3062TN | 0.60 | ZARN 3062LTN | 0.75 | 30 | 62 | 50 | 20 |
| ZARN 3080TN | 1.50 | ZARN 3080LTN | 1.70 | 30 | 80 | 66 | 20 |
| ZARN 3570TN | 0.80 | ZARN 3570LTN | 0.93 | 35 | 70 | 54 | 20 |
| ZARN 3585TN | 1.85 | ZARN 3585LTN | 1.80 | 35 | 85 | 66 | 20 |
| ZARN 4075TN | 0.90 | ZARN 4075LTN | 1.00 | 40 | 75 | 54 | 20 |
| ZARN 4090TN | 2.09 | ZARN 4090LTN | 2.39 | 40 | 90 | 75 | 25 |
| ZARN 4580TN | 1.12 | ZARN 4580LTN | 1.27 | 45 | 80 | 60 | 25 |
| ZARN 45105TN | 3.02 | ZARN 45105LTN | 3.42 | 45 | 105 | 82 | 25 |
| ZARN 5090TN | 1.43 | ZARN 5090LTN | 1.78 | 50 | 90 | 60 | 25 |
| ZARN 50110TN | 3.30 | ZARN 50110LTN | 3.75 | 50 | 110 | 82 | 25 |
| ZARN 55115TN | 3.50 | ZARN 55115LTN | 4.00 | 55 | 115 | 82 | 25 |
| ZARN 60120TN | 3.70 | ZARN 60120LTN | 4.85 | 60 | 120 | 82 | 25 |
| ZARN 65125TN | 4.00 | ZARN 65125LTN | 4.60 | 65 | 125 | 82 | 25 |
| ZARN 70130TN | 4.10 | ZARN 70130LTN | 4.65 | 70 | 130 | 82 | 25 |
| ZARN 75155TN | 7.90 | ZARN 75155LTN | 9.10 | 75 | 155 | 100 | 30 |
| ZARN 90180TN | 11.80 | ZARN 90180LTN | 13.20 | 90 | 180 | 110 | 35 |
Bearing parameter (Please contact us if didn't find the bearing number you need)
Production and inspection:
