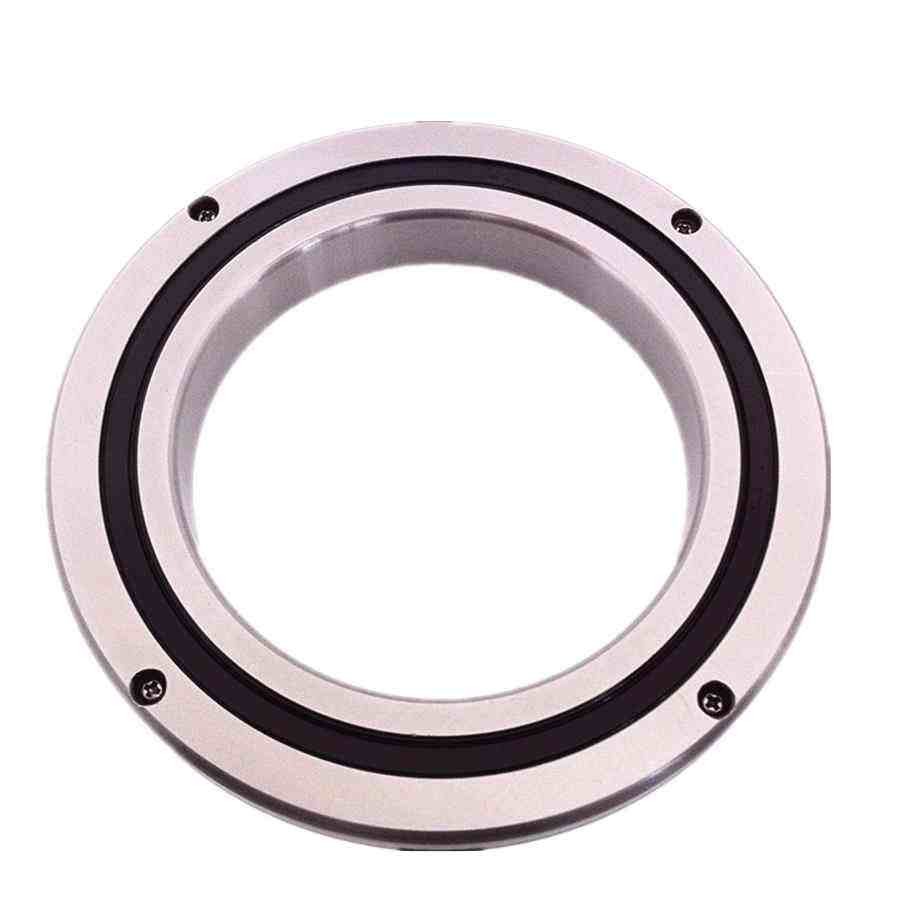

SX011824 Crossed roller bearing

Crossed roller bearing

di 120 mm Tolerance: K6
+0,004/-0,018
Da 150 mm Tolerance: h6
0/-0,025
H 16 mm Section height of bearing
Tolerance: +/-0,06

Di 135,6 mm
DM 135 mm
da 134,4 mm
h 16 mm Height of individual ring
Tolerance: E8
0/-0,01
rmin 1 mm
S 1,5 mm Lubrication hole: 3 holes spaced evenly around the circumference
m 0,8 kg Mass
  0,010 mm Running accuracy, radial
  0,010 mm Running accuracy, axial
sr min 0,005 mm Min. radial bearing clearance
sr max 0,020 mm Maximum radial bearing clearance
sk min 0,010 mm Min. axial tilting clearance
sk max 0,04 mm Maximum axial tilting clearance
RLOmax 0,004 mm Low clearance: Radial clearance
RLOmax 0,008 mm Low clearance: Preload
VSPmin 0,005 mm Min. bearing preload
VSPmax 0,020 mm Maximum bearing preload
Ca 39500 N Basic dynamic load rating, axial
C0a 140000 N Basic static load rating, axial
Cr 28000 N Basic dynamic load rating, radial
C0r 69000 N Basic static load rating, radial
(for radial load only)
nG Öl 1130 1/min Limiting speed for oil lubrication with normal clearance
nG Fett 565 1/min Limiting speed for grease lubrication with normal clearance
nG Öl 565 1/min Limiting speed for oil lubrication with preload
nG Fett 280 1/min Limiting speed for grease lubrication with preload
  61824 Dimensions identical to ISO dimension series 18



SX011824 crossed roller bearing

SX series crossed roller bearings

Identification

number

Main dimensions Basic load rating(axial) Basic load rating(radial) Weight
            Ca Coa Cr Cor
d D Dpw B B1 S r kN kN kN kN kg
SX011814 70 90 80 10 1.2 0.6 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 560 2538 355 1244 44






china crossed roller bearing manufacturer

The Brief Description of Cross Roller Bearings:

Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.



Bearing features:

1. High precision: precision at P4, P2.

2. High rigidity: this series bearings are with preload.

3. High load capacity: this series bearings can support axial load, radial load, and tilting load.

4. Small volume: this series bearings can save space for the machine.



Cross Bearing Advantages:

1. with excellent rotational accuracy

2. Installing simplifies operation

3. Bear large axial and radial loads

4.Significant savings in installation space

5. High speed capability

6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to changes .

7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing

8. Optimization of preload, rigidity, high precision guide rollers running

9. Carburizing steel provides excellent impact resistance and surface abrasion resistance

10. Simple but adequate lubrication
