BNUP4092171 Four Row Cylindrical Roller Bearing Backing up roller bearing

Product Details:

Place of Origin:	LUOYANG
Brand Name:	MONTON
Certification:	ISO9001
Model Number:	BNUP4092171

Detail Information

Place of Origin:

LUOYANG

Brand Name:

MONTON

Certification:

ISO9001

Model Number:

BNUP4092171

Highlight:

High Light

Highlight:

spherical roller bearing

cylindrical thrust bearing

Trading Information

Minimum Order Quantity:

Price:

USD

Packaging Details:

Single box

Delivery Time:

7-35 days

Product Description

BNUP4092171

Size: 180*406.4*228

weight: 180KG

Type:Sendzimir Mill Bearing

Sendzimir Mill Bearing

Backing up roller bearing also called Senzimir mill bearings,it was specially designed for cold rolling mills, Most are used to process high grade steel strip and non-ferrous metal strip ,but can also be used for other applications e.g. straightening or bending machines.
1)Structure & Feature:Backing bearings are roller bearings having a particularly thick-walled outer ring and can be mounted on stationary support shafts to form back-up or straightening rolls. The forces from the work rolls are transmitted via the support shaft and a system of support saddles to the roll or machine stands.

2)Processing accuracy:running accuracy must be P4 at least,dimensional accuracy no less than P5;

were classified in three to seven section height groups each of 3μm to 5μm;

were suitable for high strip speeds, up to 1000 m/min depending on operating conditions.

We are manufacturing this bearing in 3 structures.

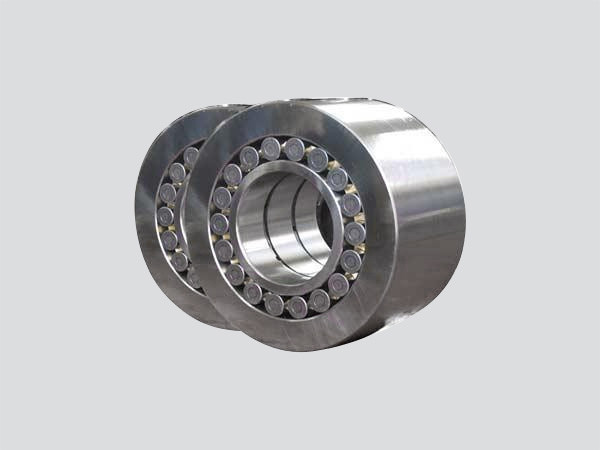

BNUP4092171 Four Row Cylindrical Roller Bearing Backing up roller bearing 0

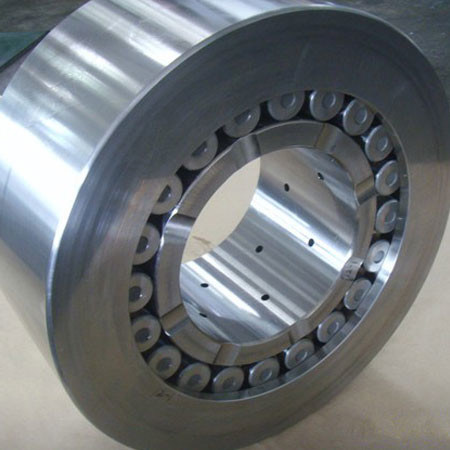

BNUP4092171 Four Row Cylindrical Roller Bearing Backing up roller bearing 1

BNUP4092171 Four Row Cylindrical Roller Bearing Backing up roller bearing 2
