23180CAK/C083w33 3153780k Single Row Spherical Roller Bearing , Stainless Steel Spherical Bearings Cross Section

1pcs
MOQ
USD
Price
23180CAK/C083w33 3153780k Single Row Spherical Roller Bearing , Stainless Steel Spherical Bearings Cross Section
Features Gallery Product Description Request A Quote
Features
Specifications
NAME: Single Row Spherical Roller Bearing Spherical Roller Bearing Cross Section
High Light:

radial roller bearing

,

stainless steel spherical bearings

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 23180CAK/C083w33 3153780k
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 100pcs/week
Product Description

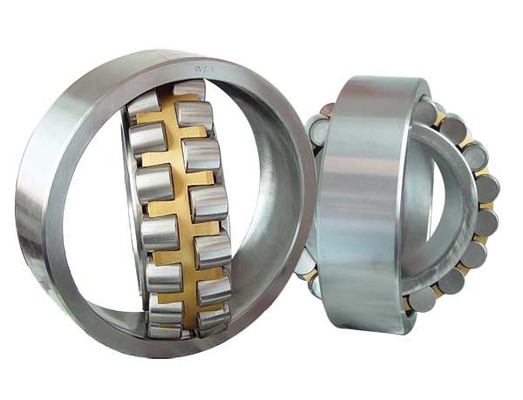

Single Row Spherical Roller Bearing , Stainless Steel Spherical Bearings Cross Section

23180CAK/C083w33 3153780k

single row spherical roller bearing spherical roller bearing cross section



d               400 mm
D              650 mm
B              200 mm
d2 ≈         475 mm
D1 ≈         566 mm
b              22.3 mm
K  12 mm
r1,2 min. 6 mm

da min.          426 mm
Da max.         624 mm
ra max. 5 mm
Calculation data
Basic dynamic load rating C 4864 kN
Basic static load rating C0 7650 kN
Fatigue load limit Pu 530 kN
Reference speed 530 r/min
Limiting speed 950 r/min
Calculation factor e 0.28
Calculation factor Y1 2.4
Calculation factor Y2 3.6
Calculation factor Y0 2.5
Mass
Mass bearing 265 kg

single row spherical roller bearing spherical roller bearing cross section
