Name: ZKLF2575-2RS Thrust Ball Screw Angular Contact Thrust Bearing For Machines Tools
Brand: MONTON
SKU: ZKLF2575-2RS
Rating: 4.9 (135 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: GCr15

Accuracy: P4

Structure: Angular Contact Ball Bearings

Type: Ball Screw

Customers: DMG,FFG

Market: Germany,Japan,Italy,USA,etc

Contact Angle: 60

Row: Two

High Light:

angular contact thrust bearing

thin section angular contact bearings

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: ZKLF2575-2RS

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 10000PCS/WEEK

Gallery

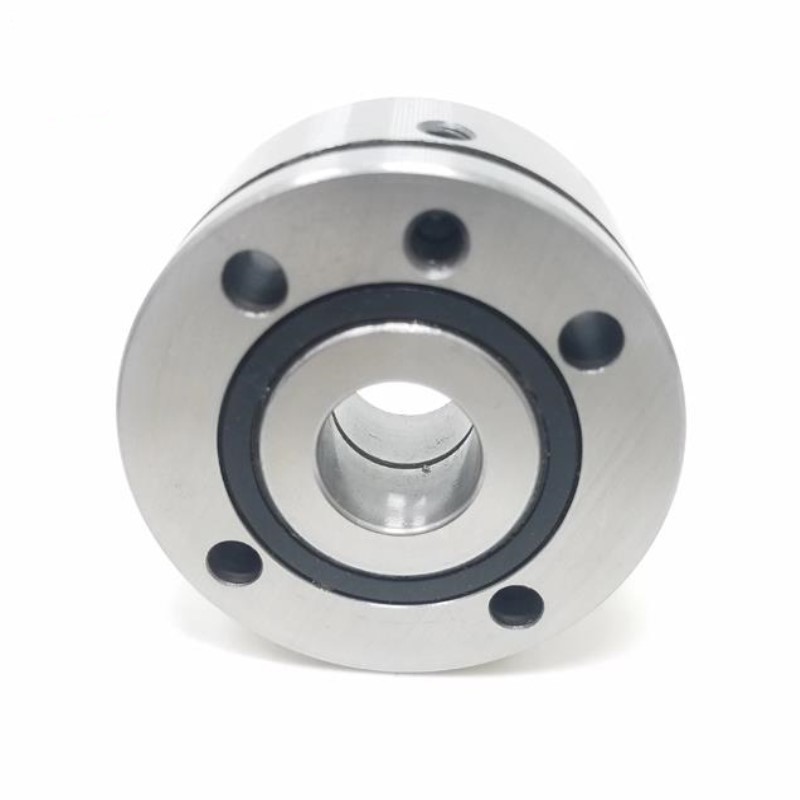

ZKLF2575-2RS Thrust Ball Screw Angular Contact Thrust Bearing For Machines Tools

Product Description

Axial angular contact ball bearing ZKLF 2575.2RS/2Z

Structure as a separate outer ring, two and a half of inner ring and ball cage components and sealing ring. , is made up of two direction of 60 ° arranged according to O form of angular contact ball bearing contact Angle. •

can withstand the bearing load from two directions can bear radial load. , can be in assembly time is obtained by precise locknut preloading. , a sealing ring or dust cover to prevent the pollution of bearing internal. , bearing is pre-filled with the high quality and long life of compound lithium base grease.

Can then be reproduced by greasing holes, grease lubrication.

can work at 30 ° C to + 120 ° C - (by grease, sealing ring material and plastic cage's decision). , can be used for precise installation of occasions, such as driving screw. • double sealing ring or dust cover.

Prducts	Thrust Angular Contact ball bearing
Brand	Monton
Model	ZKLF2575-2Z ZKLF2575-2RS ZKLF2575-2RS-PE ZKLF2575-2RS-2AP
Precision	P4 P5
Clearance	C3 C4
Quality standard	ISO9001:2000 standard
Service	OEM service such as DMG,FFG,etc
Delivery date	Normally ready goods and stock
Payment terms	A: 100% L/C at sight B: 30% T/T in advance .70% against copy of B/L C: Western Union D: Paypal
Application	Auto, tractor ,machine tool, electric machine, water pump, agricultural machinery and textile machinery
Package	1. Industrial packing:Plastic tubes/Outer cartons/Pallets 2. Single box packing:Single box/Outer cartons/Pallets 3. According to your request

ZKLF2575-2RS Thrust Ball Screw Angular Contact Thrust Bearing For Machines Tools 2

Here below is the exact bearing codes information:

Designation	Mass				Dimensions					Dimensions			t	Setscrew		Basic Load Ratings		Limiting
		d	D	B	d1	D1	r	r1	J	d2	b	l				Cr	Cor	Speed
				-0.25	min.	min.	min.	min.				min.		spec	amount	Dynamic	Static	grease
	Kg				mm					mm						kN		Rpm
ZKLF 1255.2RS	0.37	12	55	25	25	33.5	0.3	0.6	42	6.5	3	17	3×120°	M6	3	17	24.7	3800
ZKLF 1255.2Z	0.37	12	55	25	25	33.5	0.3	0.6	42	6.5	3	17	3×120°	M6	3	17	24.7	7600
ZKLF 1560.2RS	0.43	15	60	25	28	36	0.3	0.6	46	6.5	3	17	3×120°	M6	3	17.9	28	3500
ZKLF 1560.2Z	0.43	15	60	25	23	12	0.3	0.6	46	6.5	3	17	3×120°	M6	3	17.9	28	7000
ZKLF 1762.2RS	0.45	17	62	25	23	12	0.3	0.6	48	6.5	3	17	3×120°	M6	3	18.8	31	3300
ZKLF 1762.2Z	0.45	17	62	25	25	14	0.3	0.6	48	6.5	3	17	3×120°	M6	3	18.8	31	6600
ZKLF 2068.2RS	0.61	20	68	28	25	14	0.3	0.6	53	6.5	3	19	4×90°	M6	4	26	47	3000
ZKLF 2068.2Z	0.61	20	68	28	30	16	0.3	0.6	53	6.5	3	19	4×90°	M6	4	26	47	5400
ZKLF 2575.2RS	0.72	25	75	28	30	16	0.3	0.6	58	6.5	3	19	4×90°	M6	4	27.5	55	2600
ZKLF 2575.2Z	0.72	25	75	28	32	20	0.3	0.6	58	6.5	3	19	4×90°	M6	4	27.5	55	4700
ZKLF 3080.2RS	0.78	30	80	28	32	20	0.3	0.6	63	6.5	3	19	6×60°	M6	6	29	64	2200
ZKLF 3080.2Z	0.78	30	80	28	34	23	0.3	0.6	63	6.5	3	19	6×60°	M6	6	29	64	4300
ZKLF 3590.2RS	1.13	35	90	34	34	23	0.3	0.6	75	8.5	3	25	4×90°	M8	4	41	89	2000
ZKLF 3590.2Z	1.13	35	90	34	40	25	0.3	0.6	75	8.5	3	25	4×90°	M8	4	41	89	3800
ZKLF 40100.2RS	1.46	40	100	34	40	25	0.3	0.6	80	8.5	3	25	4×90°	M8	4	43	101	1800
ZKLF 40100.2Z	1.46	40	100	34	45	32	0.3	0.6	80	8.5	3	25	4×90°	M8	4	43	101	3300
ZKLF 50115.2RS	1.86	50	115	34	45	32	0.3	0.6	94	8.5	3	25	6×60°	M8	6	46.5	126	1500
ZKLF 50115.2Z	1.86	50	115	34	50	40	0.3	0.6	94	8.5	3	25	6×60°	M8	6	46.5	126	3000
ZKLF 60145.2Z	4.3	60	145	45	50	40	0.3	0.6	120	8.5	3	35	6×60°	M8	8	84	214	3000
ZKLF 70155.2Z	4.9	70	155	45	59	45	0.3	0.6	130	8.5	3	35	8×45°	M8	8	88	241	2800
ZKLF 80165.2Z	5.3	80	165	45	59	45	0.3	0.6	140	8.5	3	35	8×45°	M8	8	91	265	2700
ZKLF 90190.2Z	8.7	90	190	55	64	50	0.3	0.6	165	10.5	3	45

Thrust angular contact ball bearings
