7221CTYNSULP4 105*190*36mm Super Precision Single Row Angular Contact Ball Bearing

1
MOQ
USD
Price
7221CTYNSULP4 105*190*36mm Super Precision Single Row Angular Contact Ball Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

angular contact thrust bearing

,

thin section angular contact bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: 7221CTYNSULP4
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

7221CTYNSULP4 105*190*36mm

Single Row Angular Contact Bearings Super Precision Spindle Bearings



Angular contact ball bearings are able to support radial load and axial load. As single row angular contact ball bearings can only support axial load in single direction, it often adopts mounting in pair. As matched pairs of bearings, preload for them is more convenient. Retainer are made of brass, synthetic resins or others subject to individual bearing feature and application conditions.

The raceways of angular contact ball bearing in the inner and outer rings can have relative displacement on the horizontal axis. Therefore, this design can make it withstand combined loads, namely, supporting radial and axial loads simultaneously. The axial load capacity of angular contact ball bearing improves with the increasing contact angle.



7221CTYNSULP4 SUPER PRECISION ANGULAR CONTACT SPINDLE BEARINGS

Brand : Monton

Type :Angular Contact Ball Bearings

Contact angle C: 15 Degree

Cage material TYN: Ball guided polyamide Resin

Rings material Bearing steel (SUJ2)

Rolling elements material Bearing steel (SUJ2)

Arrangement SU: universal Single row for matched set

Accuracy rating P4: ISO Class 4 (ABEC – 7)

Limiting speeds Grease: 6,300 rpm Oil: 9,500 rpm

Dynamic load rating KN

Static load rating:179KN

Axial load rating :156KN

Dimensions: 105mm x 190mm x 36mm

Quantity Two bearings

Made in China



THIS MATCHED SET OF TWO NSK 7221CTYNSULP4REPLACES THE FOLLOWING:

NSK 7221CTYNDBLP4

NSK 7221CTRDULP4Y

NSK 7221CTRDULP4

NACHI 7221CYDUP4

NACHI 7221CYDU/GLP4

FAG 7221CT P4S DUL

SKF 7221CD/P4A

SKF 7221CD/P4A DBA

RHP 7221CTDULP4





Commodity name super precision bearing angular contact ball bearing
Bearing model 7221CTYNSULP4 ,7221CTYNDBLP5, 7221CTYNDULP4
Bearing specification 105*190*36mm bearing
Weight /KG 4 KG
Greese/Oil As you requirement ,such as SRL,PS2,Alvania R12 and so on
Bearing Series 70xx,72xx,718XX,719xx
Ring Materical Chrome Steel,Carbon steel, Stainless steel
Tolerance grade GB/T307.1-205
ID Size 10mm-280mm
Quality standard Precision bearing passed ISO 9001:2008 standard
Bearing Precision P0,P6,P5 ,P4
Steel pressed cage Bending claw form or rivet form
Delivert Date Normally ready goods and stock within 7 days
Payment Terms A:30% T/T In Advance,70% Against Copy Of B/L B: 100% L/C At Sight C: Paypal D: Western Union
Application Home appliances, low noise and high speed electric motors,automotive
components,pumps,machinery.
Bearing Service precision bearing can offer OEM service

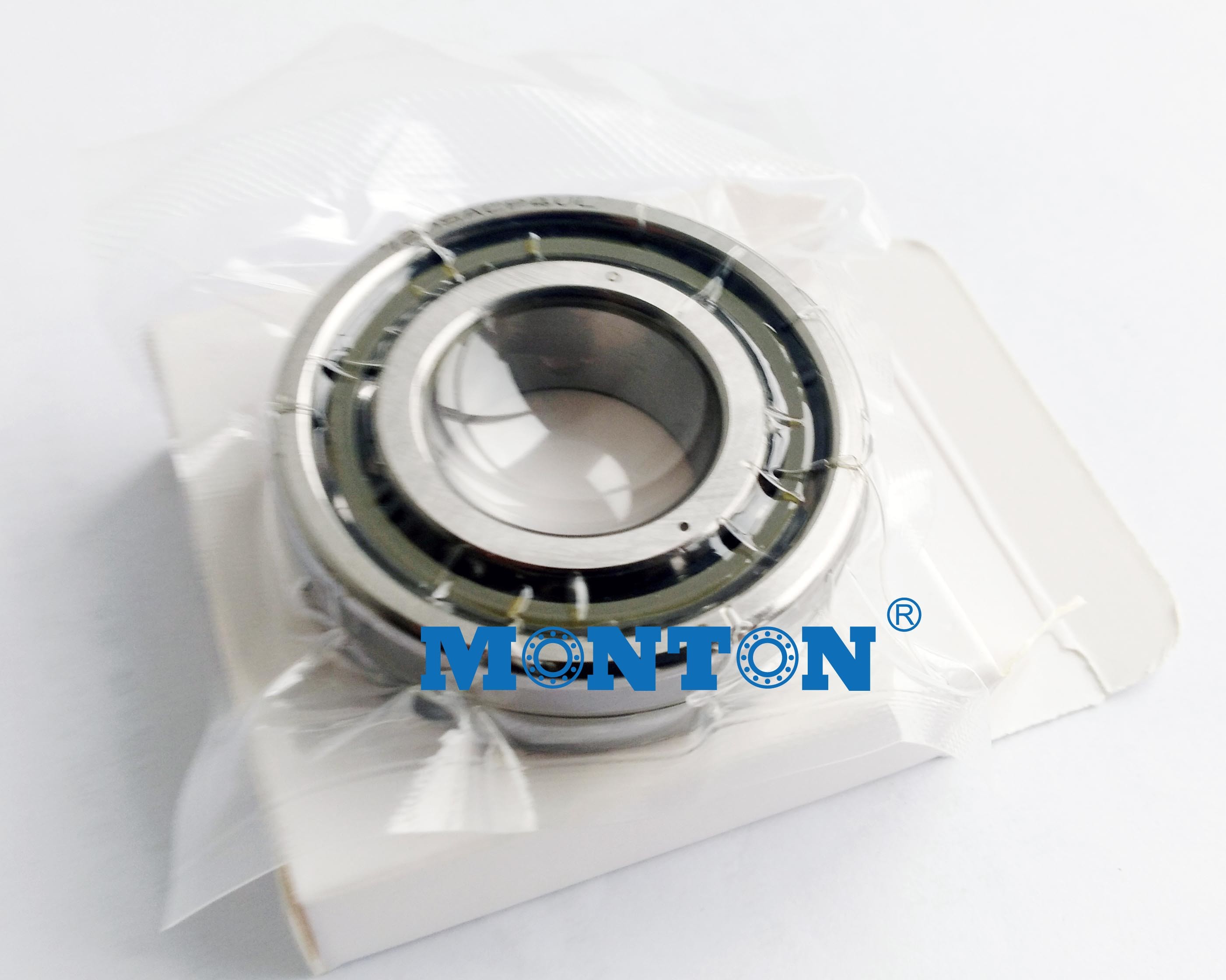

Package Single box or according to buyers requirement



Angular Contact Ball Bearing Specification:



Seals Types 2RS,OPEN
Vibration Level Z1V1,Z2V2,Z3V3
Clearance C2,C0,C3,C4,C5
Tolerance Codes ABEC-1,ABEC-3,ABEC-5
Materral GCr15-China/AISI52100-USA/Din100Cr6-Germany
MOQ 1Set at least
Delivery Time 15-45 days after contract
Payment Terms TT/PAPAL/WESTERN UNION
Pavkage Tube package+outer carton+pallets;Single box+outer carton+pallets;Tube pavkge+middle box+outer carton+pallets;According to your requirement
