RA11008UUCC0 Precision Cross Roller Bearing For Harmonic Drive Redeucer

1PCS
MOQ
USD
Price
RA11008UUCC0 Precision Cross Roller Bearing For Harmonic Drive Redeucer
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

rotary table bearing

,

industrial turntable bearings

Basic Infomation
Place of Origin: Luoyang
Brand Name: Monton
Model Number: RA11008UUCC0
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Supply Ability: 1000PCS/WEEK
Product Description

RA11008UUCC0



RA11008UUCC0



shaft diameter Identification number Main dimensions Shoulder height Basic load rating(radial) weight
inner ring outer ring Roller pitch circle diameter dp width Greasing hole Chamfer ds Dh C C0 Kg
d D   B B1
(mm) (mm) (mm) (mm) (mm) φ r(min) kN kN
110 RA11008 110 126 117 8 1 0.5 113.5 120.5 7.45 15 0.15









































Types and features
RA thin type cross roller bearing (separable outer ring for inner ring rotation),RA series is a kind of small size and light weight cross roller bearing which the wall thickness in thin. It receives heavy loads.
Applications
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
•Aviation equipment,Military radar etc

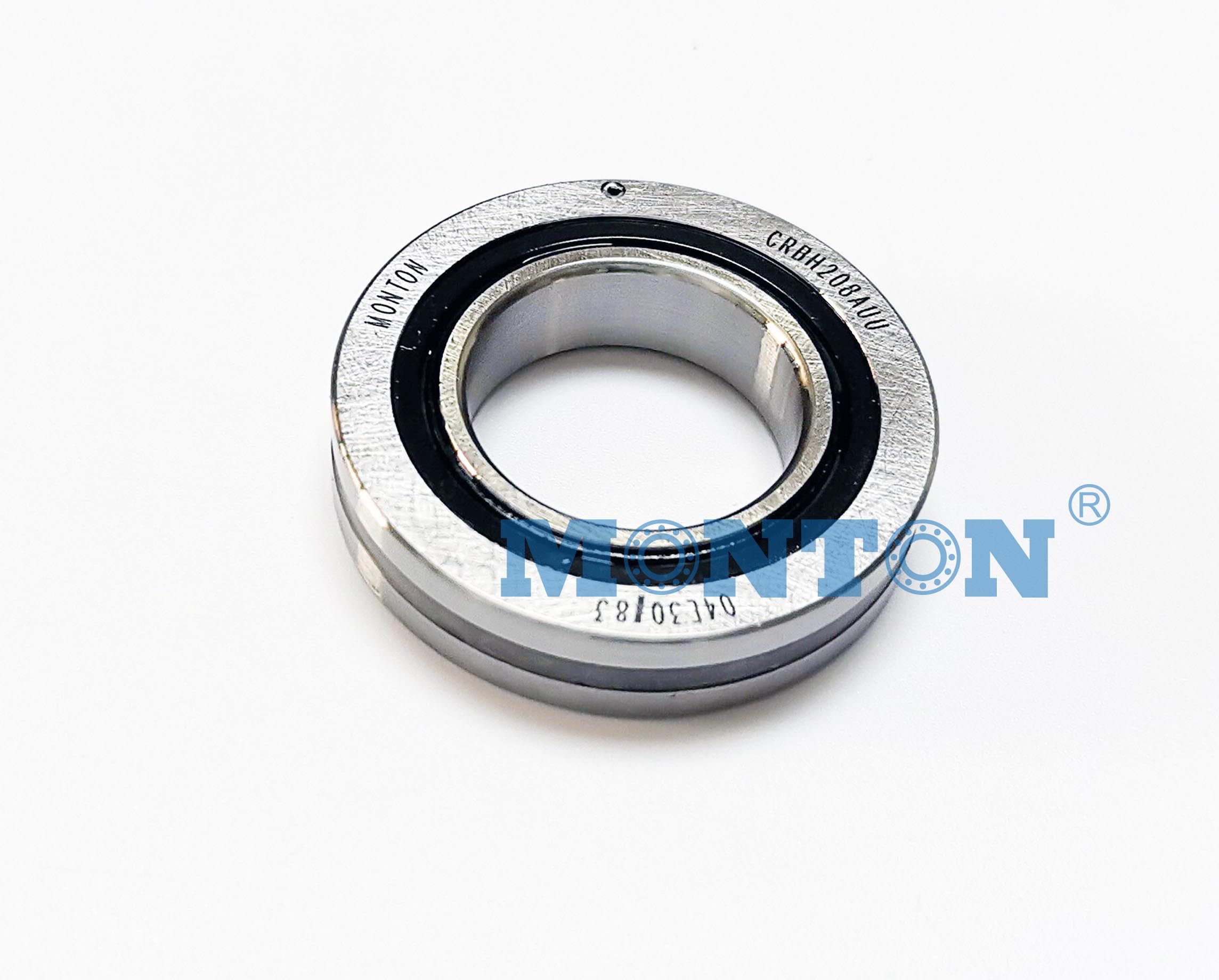

RA11008UUCC0 Precision Cross Roller Bearing For Harmonic Drive Redeucer 1

RA11008UUCC0
