Cross Roller Bearing
>

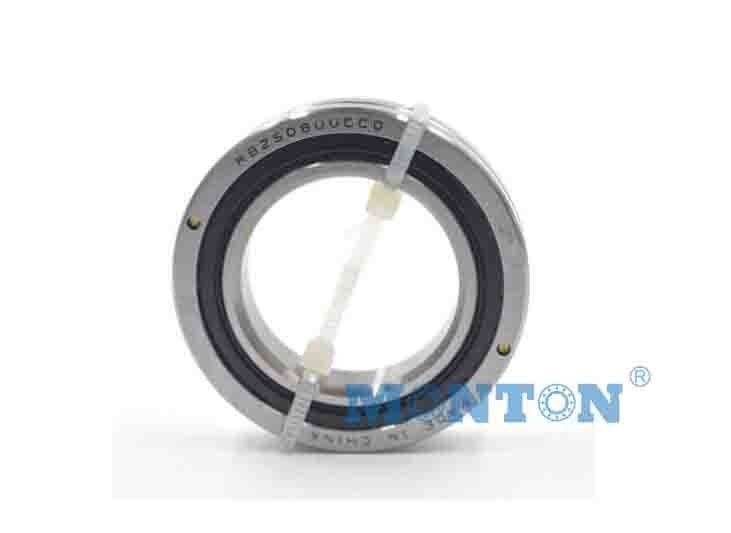

RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings

RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings

Product Details:
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: RB2008UUCC0P5
Detail Information
Place of Origin:
CHINA
Brand Name:
MONTON
Certification:
ISO9001
Model Number:
RB2008UUCC0P5
Highlight:

High Light

Highlight:

rotary table bearing

,

industrial turntable bearings

Trading Information
Minimum Order Quantity:
1
Price:
USD
Packaging Details:
Singlebox
Delivery Time:
7-35 days
Payment Terms:
T/T
Supply Ability:
10000PCS/WEEK
Product Description

RB2008UUCC0P5 Robot Harmonic Drive Crossed Roller Bearings



RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings 0

Shaft Diameter Bearings inner ring outer ring Roller pitch circle diameter width Greasing hole Chamfer Shoulder height Basic load rating(radial) weight
d D dp B B1 a-b r(min) ds Dh C C0 Kg
(mm) (mm) (mm) (mm) (mm) kN kN
20 RB2008 20 36 27 8 2-0.8 0.5 23.5 30.5 3.23 3.1 6.4



RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings 1

RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings 2

RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings 3

RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings 4

RB2008UUCC0P5 20*36*8mm Robot Harmonic Drive Crossed Roller Bearings 5





























































































































































































































































High Quality cross roller bearing



1.high axial and radial load



2.for steel mill industry



3.sample available



4.short delivery time



Introduction Of Cross Roller Bearing



Their rollers between the inner ring and the outer ring, the interval to intersect at right angles to each other are arranged. They can withstand the load from all directions (eg axial thrust load or momentum, etc.). Because the surface of the roller and the track into a linear contact and therefore, the bearing load and by the possibility of elastic deformation is small. This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need high rigidity, high speed close and still ensure accurate the occasion.



Features Of Cross Roller Bearing

1.with excellent rotational accuracy

2. Installing simplifies operation

3. Bear large axial and radial loads

4.Significant savings in installation space

5. High speed capability

6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to changes .

7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing

8. Optimization of preload, rigidity, high precision guide rollers running

9. Carburizing steel provides excellent impact resistance and surface abrasion resistance

10. Simple but adequate lubrication
