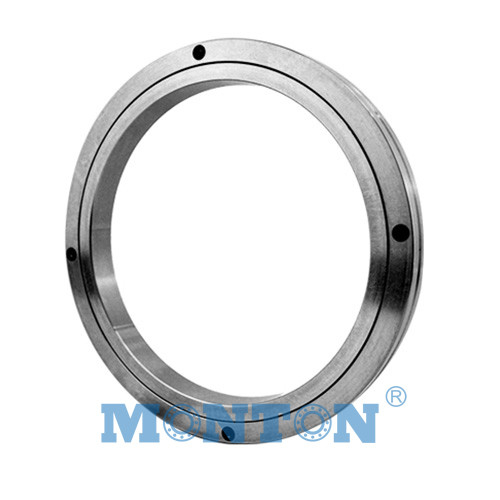

SX011818 Cross Roller Bearing Harmonice Drive Customized High Precision Bearings
SX011818
| Identification number | Main dimensions | shoulder height | Basic load rating(axial) | Basic load rating(radial) | weight | ||||||||
| innerring | outer ring | Roller pitch circle diameter dp (mm) | width | Greasing hole | Chamfer | de | Di | Ca | Coa | Cr | Cor | Kg | |
| D | r | KN | KN | KN | KN | ||||||||
| d | (mm) | B B1 | (min) | ||||||||||
| (mm) | (mm) | φ | |||||||||||
| SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 101.5 | 102.5 | 26 | 91 | 18 | 37 | 0.4 |
SX series Crossed roller bearing have high precision applications, whose dimensions conform to ISO dimension series. They comprise outer rings, inner rings, rolling elements and plastic spacers. The outer ring is split and is held together by three retaining rings.
Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, low clearance or preload. Preloaded bearings have the suffix VSP.The bearing outer rings are easily fixed to the adjacent Due to the X arrangement of the cylindrical rollers, these bearings can support axial forces from both directions as well as radial forces, tilting moment loads and any combination of loads by means of a single bearing position. So, designs involving two bearing positions can be reduced to a single bearing position.
Cross Roller Bearings SX Series models are as follows:
SX011814 SX011818 SX011820 SX011824 SX011828 SX011832 SX011836 SX011840
SX011848 SX011860 SX011868 SX0118/500
XSU080168 XSU080188 XSU080218 XSU080258 XSU080318 XSU080398
XU050077 XU060094 XU120179
