XSU080218 180x255x25.4mm Xsu Series Cross Roller Bearing Precision Turntable NC Rotary Table
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Roller
Seals Type: OPEN
Material: 42CrMo Or 50Mn
Precision Rating: P0 P6 P5 P4 P2
Application: Machinery
Structure: Cylindrical
Number Of Row: Single Row
Feature: Cross Roller
Service: OEM Customized Services
Gear Options: Nongeared
Product Name: Crossed Roller Bearing
Cage: Steel Cage.Brass Cage.Nylon Cage
Sample: Avaliable
Package: ORIGINAL PACKAGE
Hardness: 55HRC-62HRC
High Light:

rotary table bearing

,

industrial turntable bearings

Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: XSU080218
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

XSU080218

XSU080218



Identification number Main dimensions Basic load rating(axial) Basic load rating(radial) weight
inner ring outer ring width Installing hole Chamfer φLa φLi Ca C0a Cr Cor Kg
d D B nB r(min) KN KN KN KN
(mm) (mm) (mm)
XSU080218 180 255 25.4 20 1.1 240 195 77 315 49 127 4.3























XSU Crossed roller bearing, sealed on both sides, greased,preloaded, centred on the inside and outside diameter,
bearing rings can be screw mounted directly on the adjacent construction.

Features Of Cross Roller Bearing
1.with excellent rotational accuracy
2. Installing simplifies operation
3. Bear large axial and radial loads
4.Significant savings in installation space
5. High speed capability
6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to hanges .
7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing
8. Optimization of preload, rigidity, high precision guide rollers running
9. Carburizing steel provides excellent impact resistance and surface abrasion resistance
10. Simple but adequate lubrication

Series Model No.
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,
XSU140544,XSU140644,XSU140744,XSU140844,XSU140944

Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc

Packing:
1.Vacuum package:40mm-200mm
2.Wooden box package:200mm-1500mm
Shipping:By air or By sea according to request.

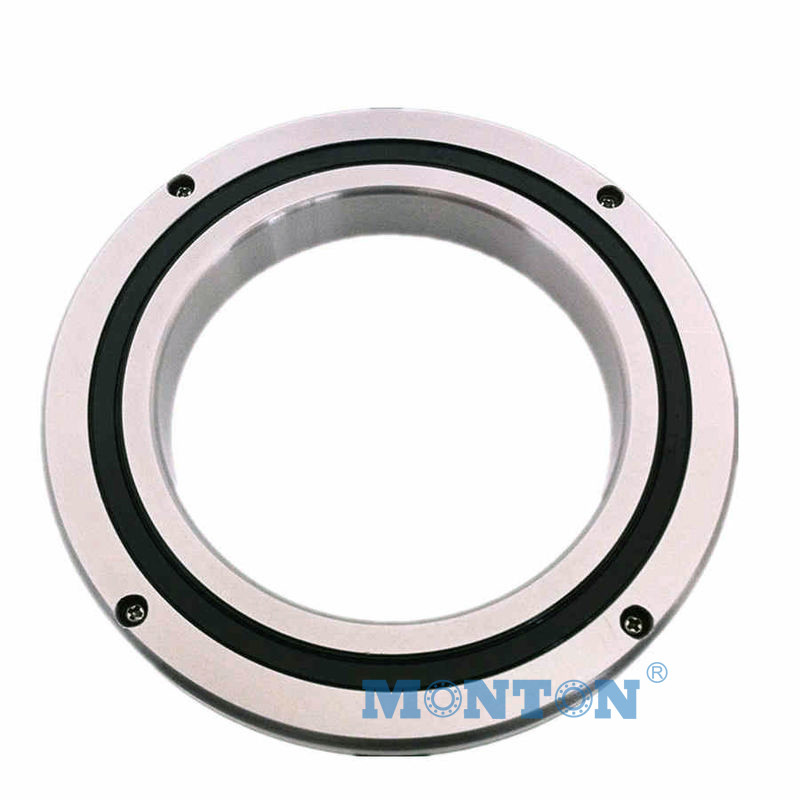

XSU080218 180x255x25.4mm Xsu Series Cross Roller Bearing Precision Turntable NC Rotary Table 1
