XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear
1PCS
MOQ
Ask
Price
XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Luoyang
Brand Name: MONTON
Certification: ISO9001
Model Number: XSU080398
High Light:

rotary table bearing

,

industrial turntable bearings

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/WEEK
Specifications
Type: Roller
Seals Type: OPEN
Material: GCr15 Bearing Steel
Precision Rating: P0 P6 P5 P4 P2
Application: Machinery
Structure: Cylindrical
Number Of Row: Single Row
Feature: Cross Roller
Service: OEM Customized Services
Gear Options: Nongeared
Product Name: Crossed Roller Bearing
Cage: STEEL,Nylon Cage,steei Or Copper
Sample: Avaliable
Package: ORIGINAL PACKAGE
Hardness: 55HRC-62HRC
Product Description

XSU080398

XSU080398



Identification number Main dimensions Basic load rating(axial) Basic load rating(radial) weight
inner ring outer ring width Installing hole Chamfer φLa φLi Ca C0a Cr Cor Kg
d D B nB r(min) KN KN KN KN
(mm) (mm) (mm)
XSU080398 360 435 25.4 36 2 420 375 106 590 68 236 7.8























XSU Crossed roller bearing, sealed on both sides, greased,preloaded, centred on the inside and outside diameter,
bearing rings can be screw mounted directly on the adjacent construction.

Features Of Cross Roller Bearing
1.with excellent rotational accuracy
2. Installing simplifies operation
3. Bear large axial and radial loads
4.Significant savings in installation space
5. High speed capability
6. Shaft length and reduce processing costs, the geometry of thermal expansion is limited to hanges .
7. Nylon spacer, low inertia, low starting torque, easy to control angle indexing
8. Optimization of preload, rigidity, high precision guide rollers running
9. Carburizing steel provides excellent impact resistance and surface abrasion resistance
10. Simple but adequate lubrication

Series Model No.
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398,XSU140414,
XSU140544,XSU140644,XSU140744,XSU140844,XSU140944

Applications:
•Industrial Robotic arm,Reducer drive
•precision Turntable,NC rotary table
•Rotation part of Machine tools
•Inspection instrument,Medical equipment
• Aviation equipment,Military radar etc

Packing:
1.Vacuum package:40mm-200mm
2.Wooden box package:200mm-1500mm
Shipping:By air or By sea according to request.

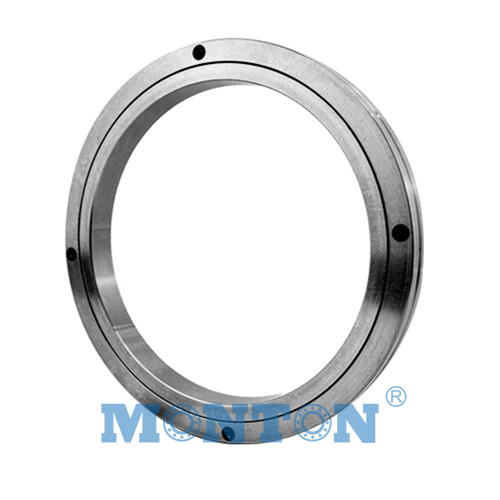

XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear 1

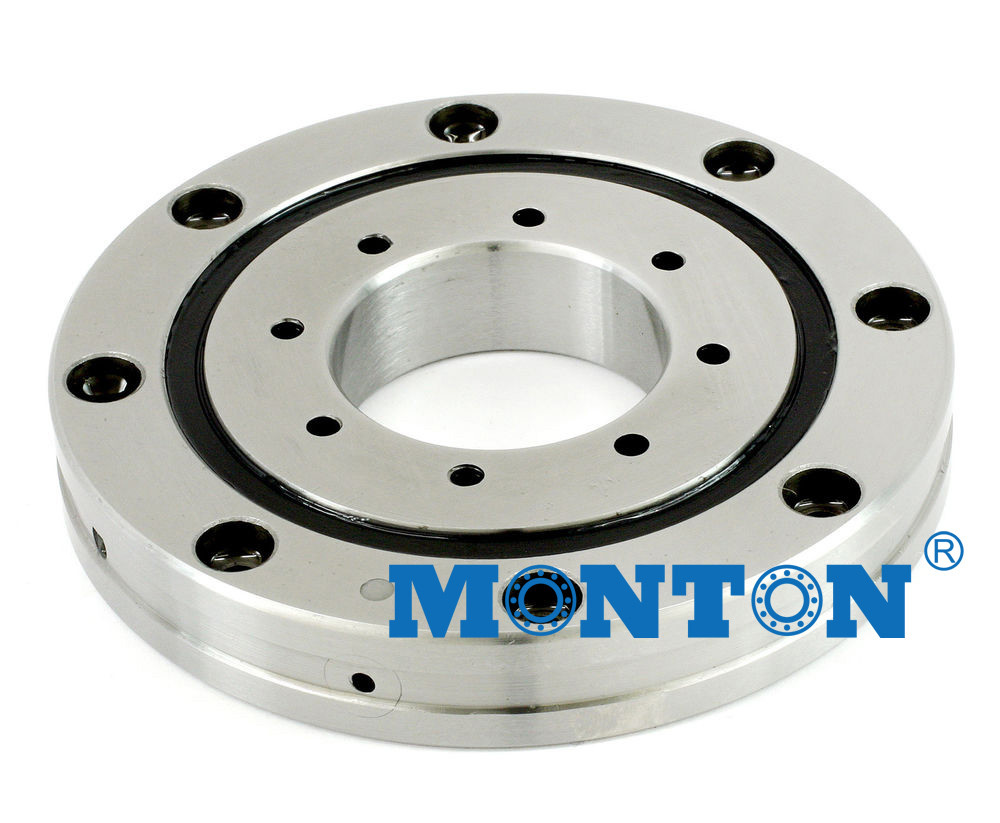

XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear 2

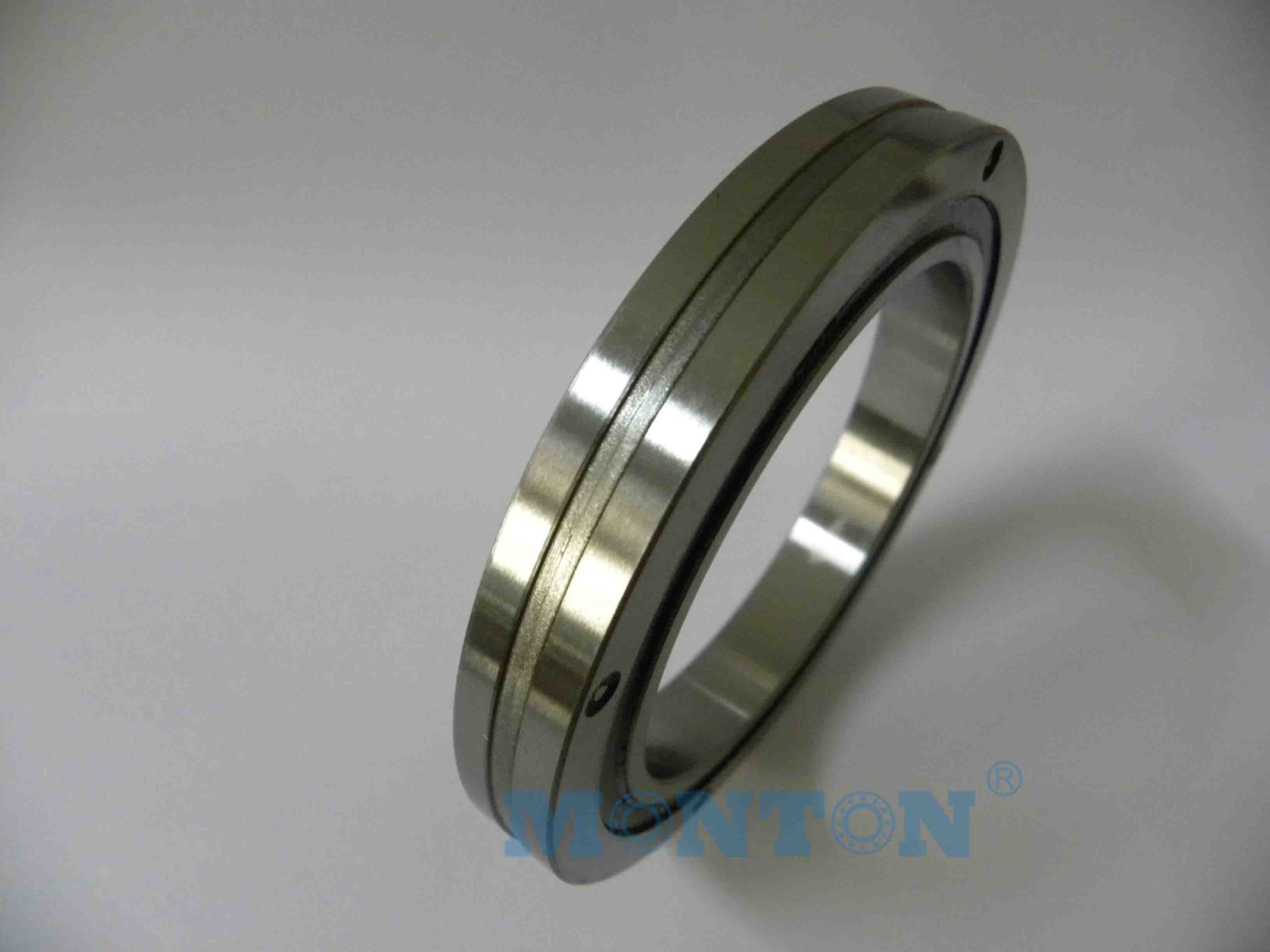

XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear 3

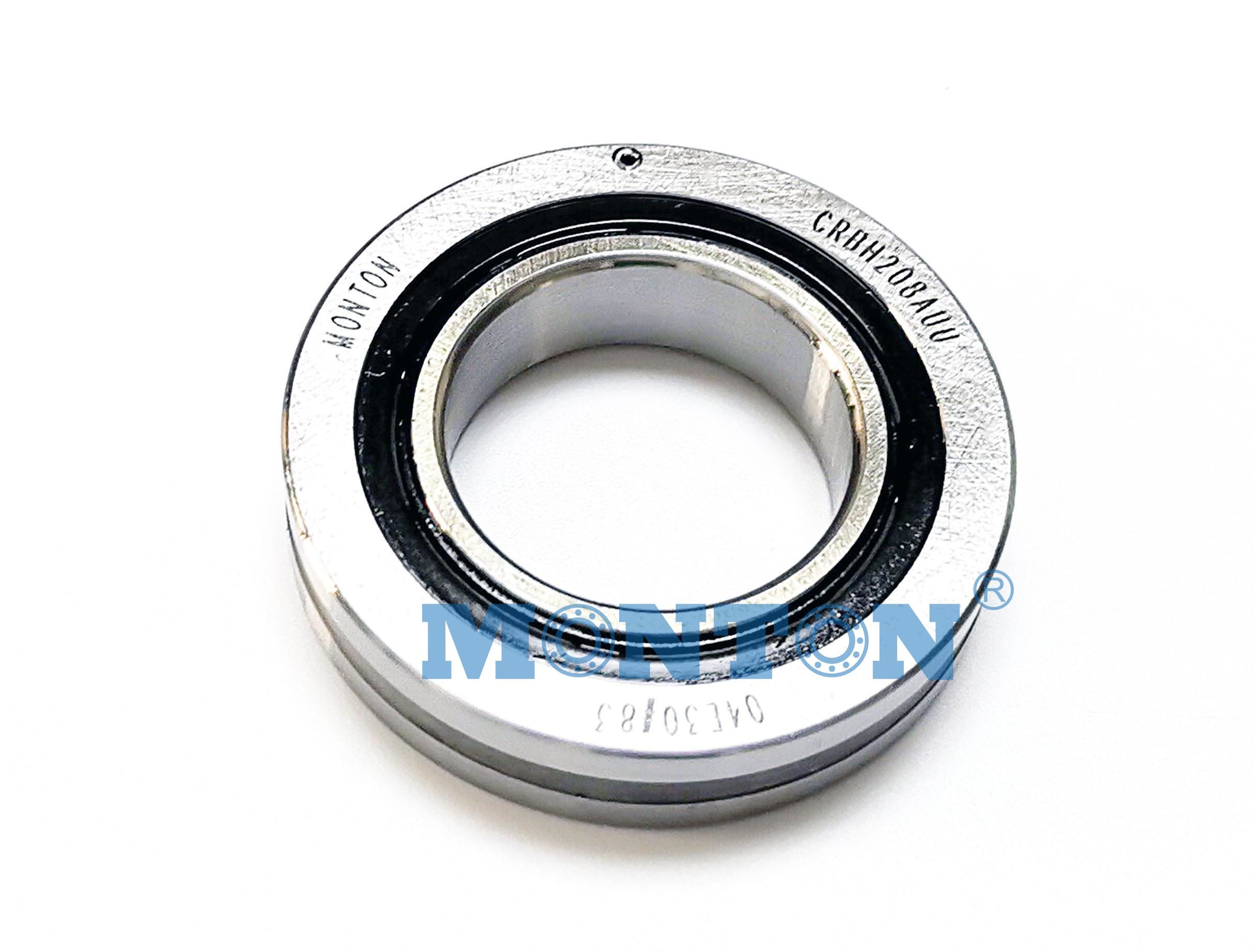

XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear 4

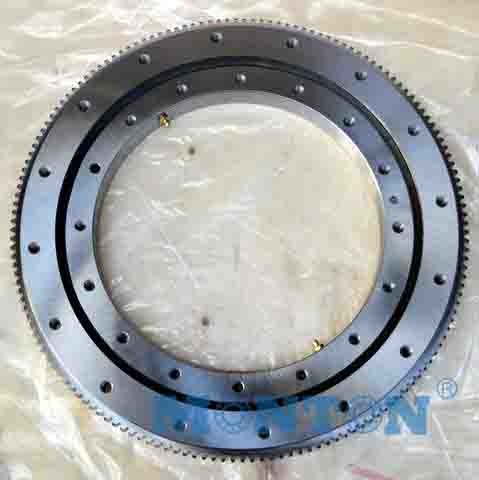

XSU080398 360*435*25.4mm crossed roller Bearing Robot Harmonic Drive Gear 5
