F32 M32 58.928*79.756*11.81mm harmonic drive strain wave gear Flexible bearings

1
MOQ
USD
Price
F32 M32 58.928*79.756*11.81mm  harmonic drive strain wave gear Flexible bearings
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: CHINA
Brand Name: MONTON
Certification: ISO9001
Model Number: F32
Payment & Shipping Terms
Packaging Details: Singlebox
Delivery Time: 7-35 days
Payment Terms: T/T
Supply Ability: 10000PCS/WEEK
Product Description

F32

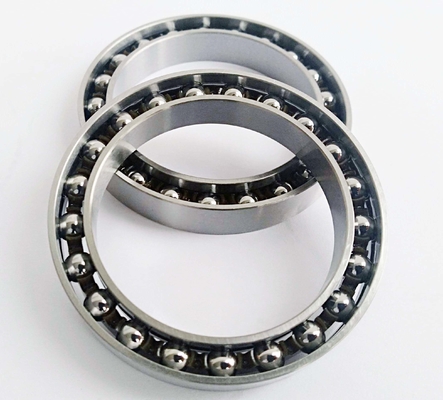

Robots  Flexible bearings(harmonic drive strain wave gear bearing)



Bearings Inner ring Outer ring Width Dynamic load rating Static load rating Radial Deformation Input rotate speed Output torque
Model ID OD B Cr Cor Max. mm r/min N.m
F32 58.928 79.756 11.81 22.28 20.91 0.5 3000 120
M32 58.928 79.756 11.81 27.19 28.18 0.5 3000 180
