TAB-035075M
BEARING NO. | Dimensions(mm) | Rows | Load Rating (KN) | Weight (kg) | |||
Inner | Outer | Height | C | CO | |||
Diameter | Diameter | ||||||
TAB-035075M | 88.9 | 187.9 | 108 | 2 | 3106 | 821 | 2.55 |

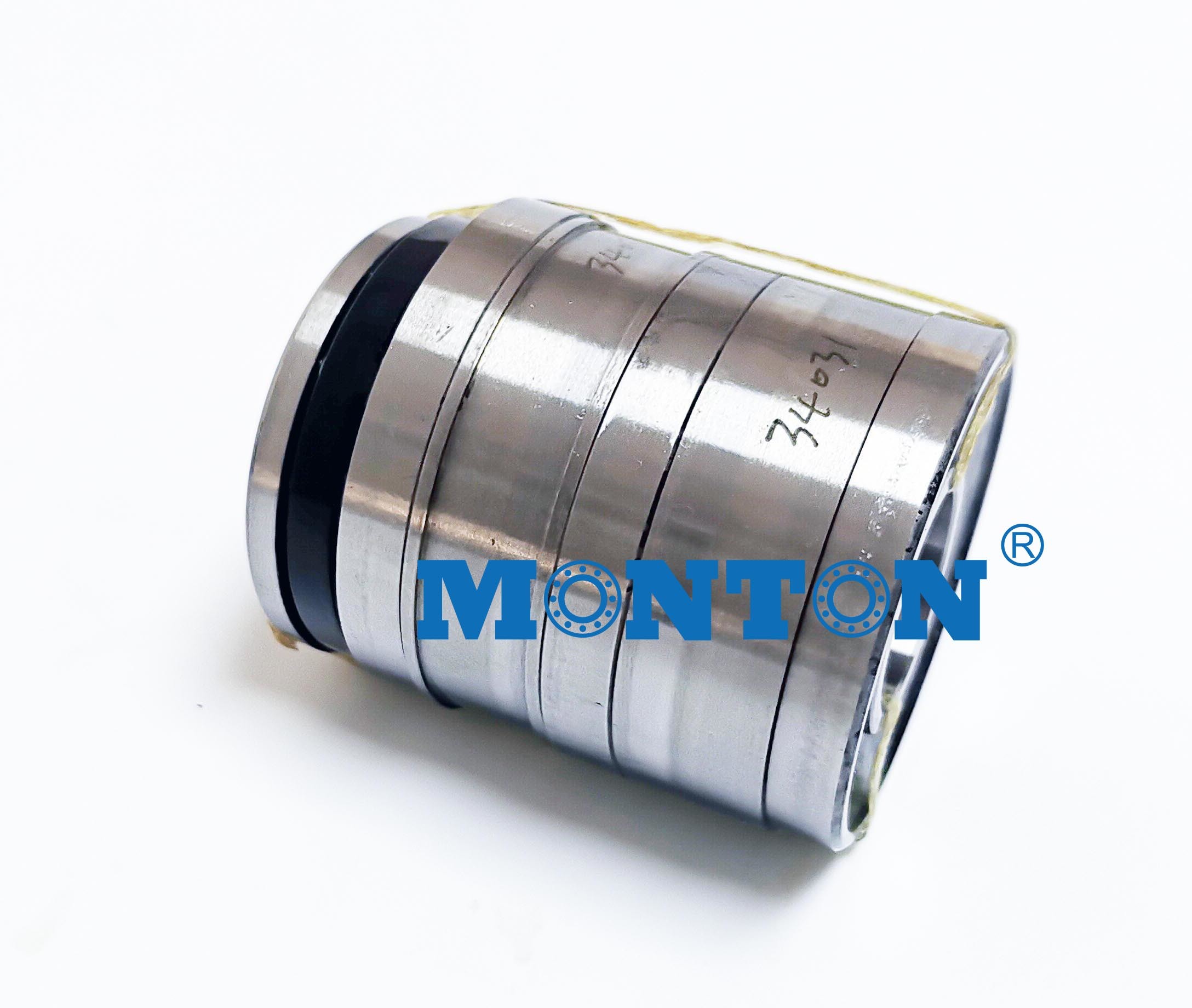

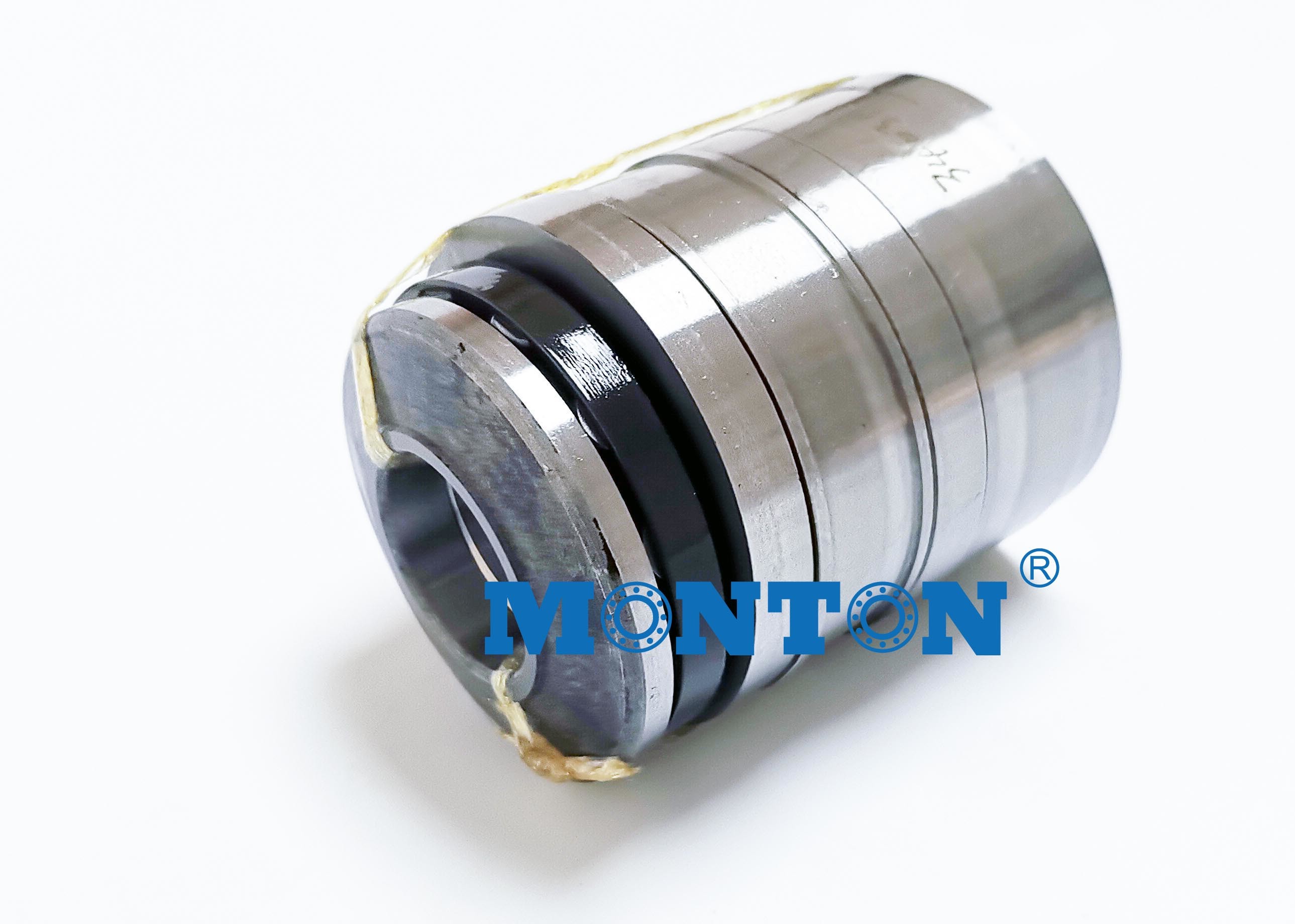

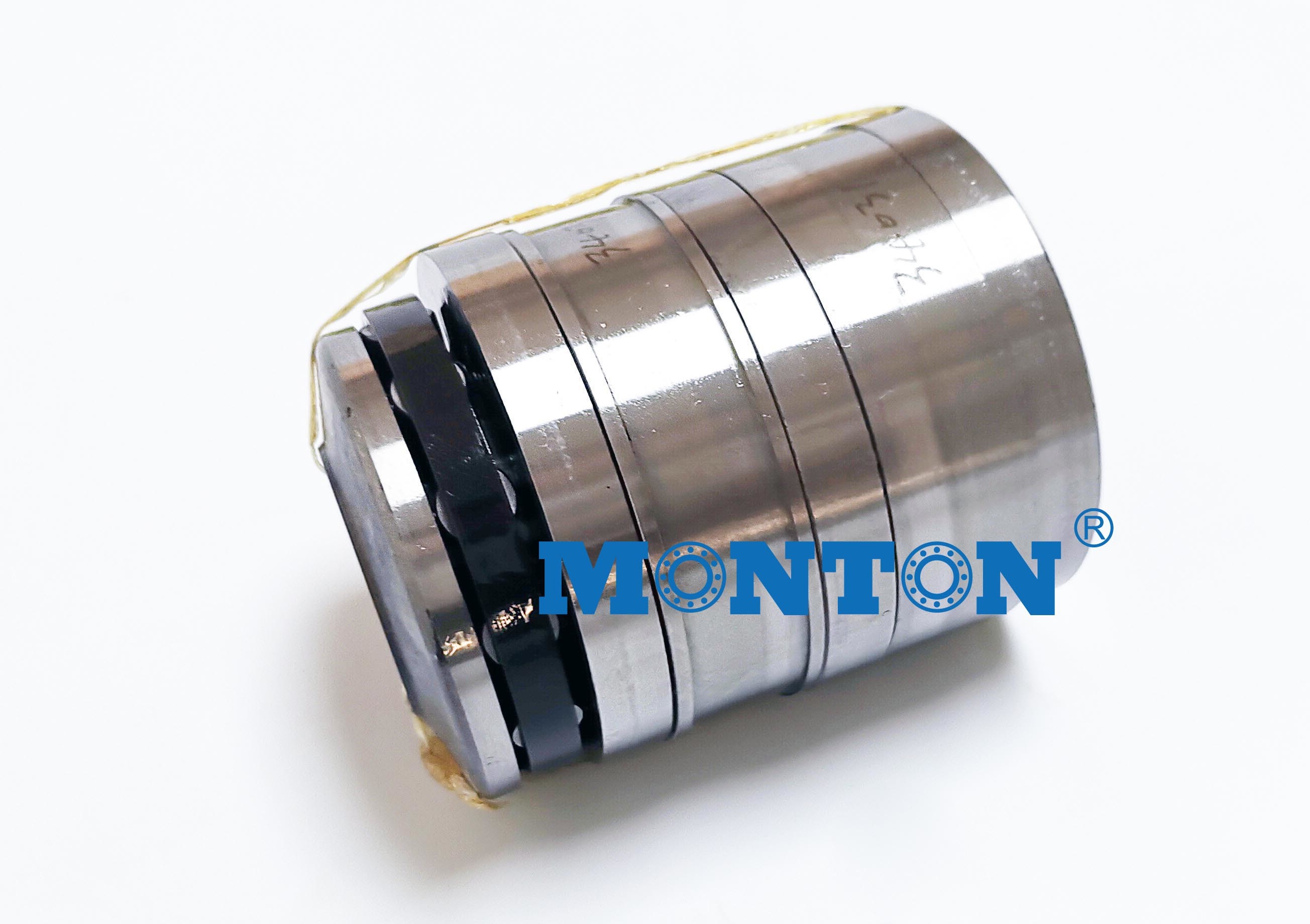

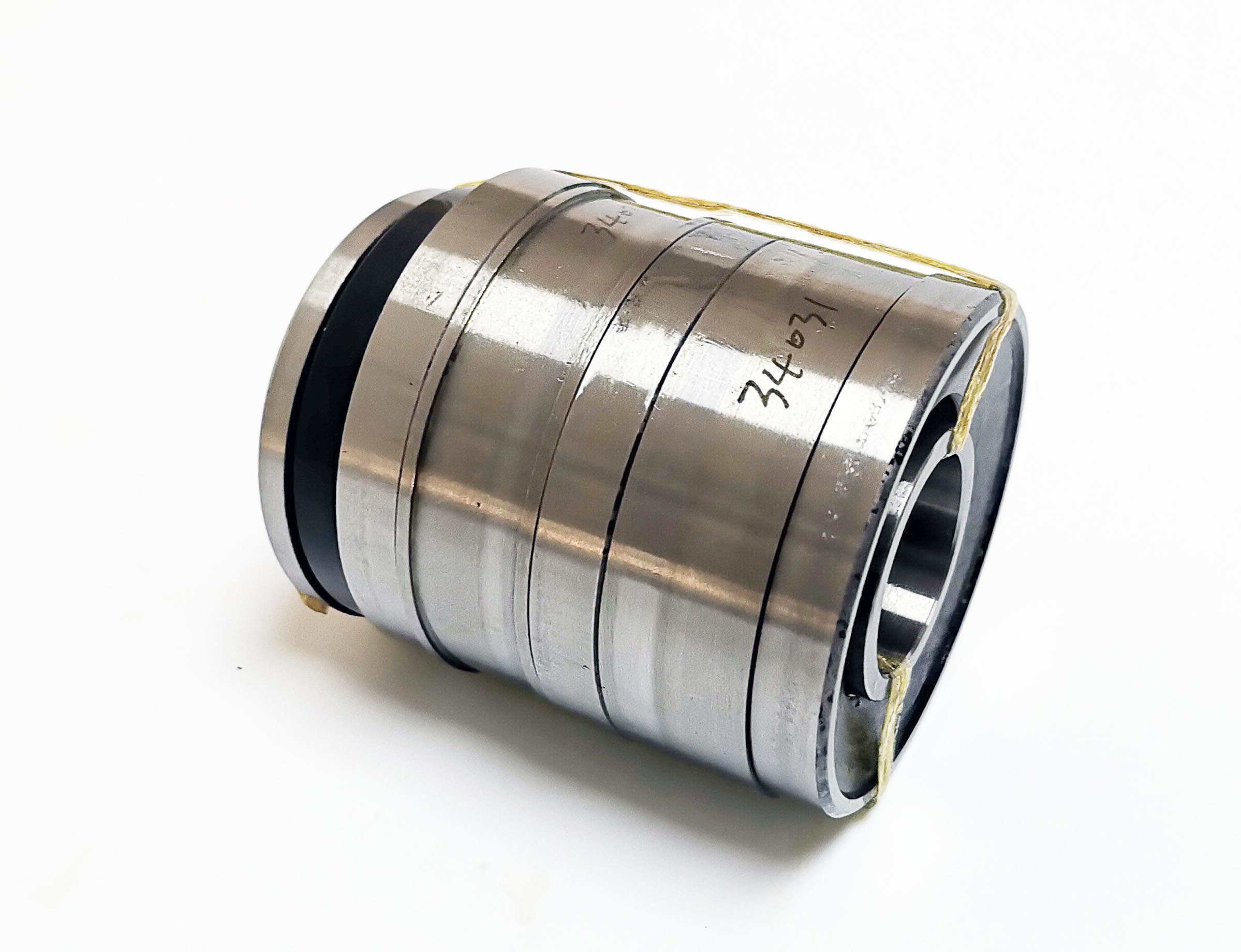

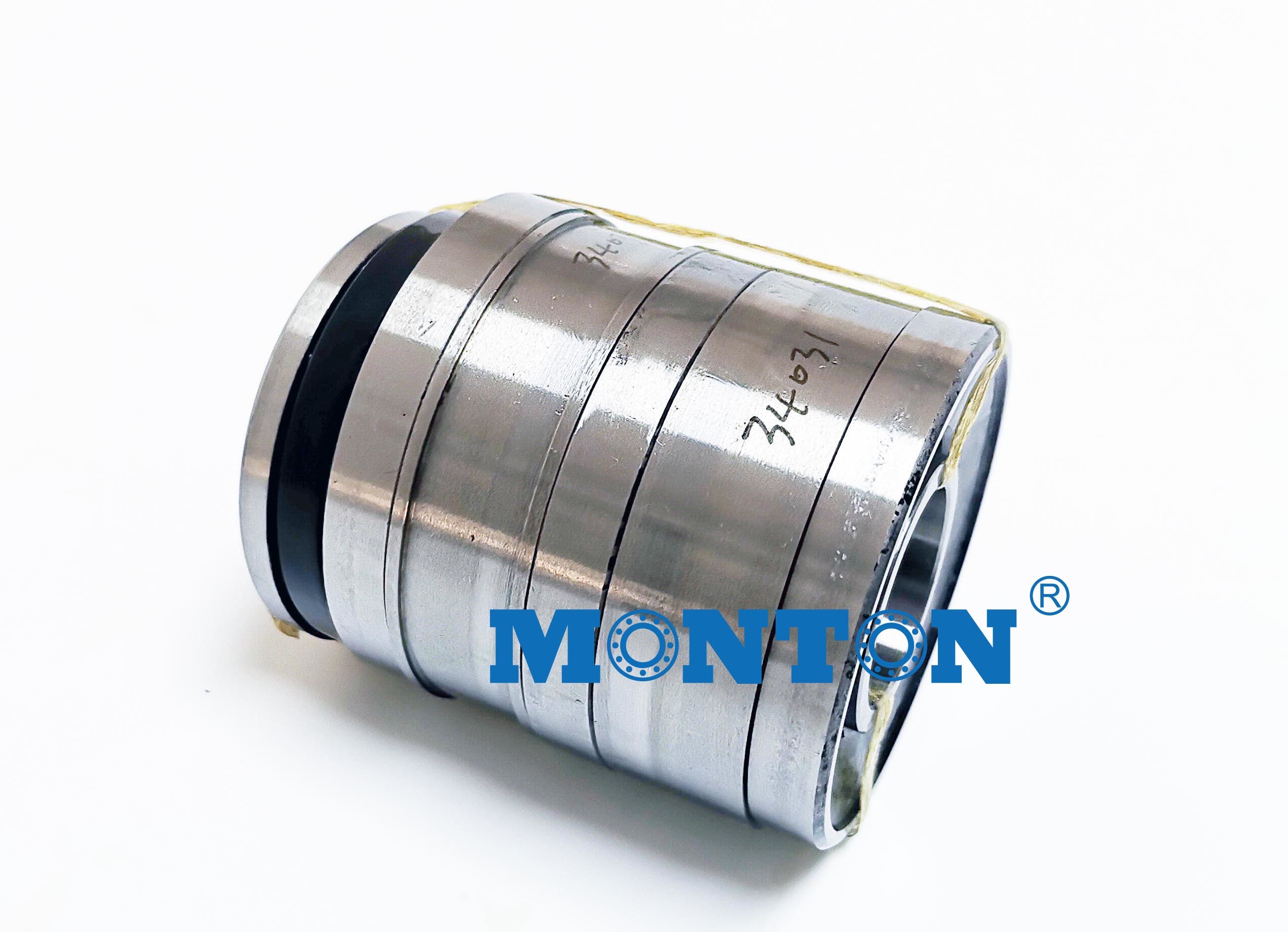

Tandem Thrust Bearings
Special requirements:
• High load carrying capacity in an extremely confined space
• High reliability
• In some cases: corrosion resistance
Our company offer specifically designed bearings for high thrust
loads and have ready to meet the requirements for quality and
performance. The material used GCr15SiMn, Grade 1. It has good
hardenability and strength, good temperature resistance and
stability.
The tandem design allows the use of a high thrust capacity bearing
in a small area. It was originally designed for a rotary swivel used on
an oil drilling rig.
The advantages of a tandem bearing:
- low radial space requirement
- high axial load carrying capacity
- long operating life
