CSF17-4216 10×62×16.5mm Cross Roller Bearing for Harmonic Drive

1 PCS
MOQ
Ask
Price
CSF17-4216 10×62×16.5mm  Cross Roller Bearing for Harmonic Drive
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: Luoyang
Brand Name: MONTON
Certification: ISO9001
Model Number: CSF17-4216
Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 5-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/WEEK
Product Description

CSF17-4216 10×62×16.5mm

Cross Roller Bearing for Harmonic Drive

CSF17-4216 10*62*16.5mm  Cross Roller Bearing for Harmonic Drive



Designation Dimensions (h/li) Basic Load ratings(KN) Weight
Bearing d D T D1 D2 D21 D3 n1-d1 n2-d2 n21-d21 n3-d3 d31 t31 rsmin Cr Cor kg
CSF17-4216 10 62 16.5 56 27 17.5 17.5 10-φ3.5 6-M5 6-M4 2-φ3 --- --- 0.3 x 45 ° 5.2 6.4 0.27

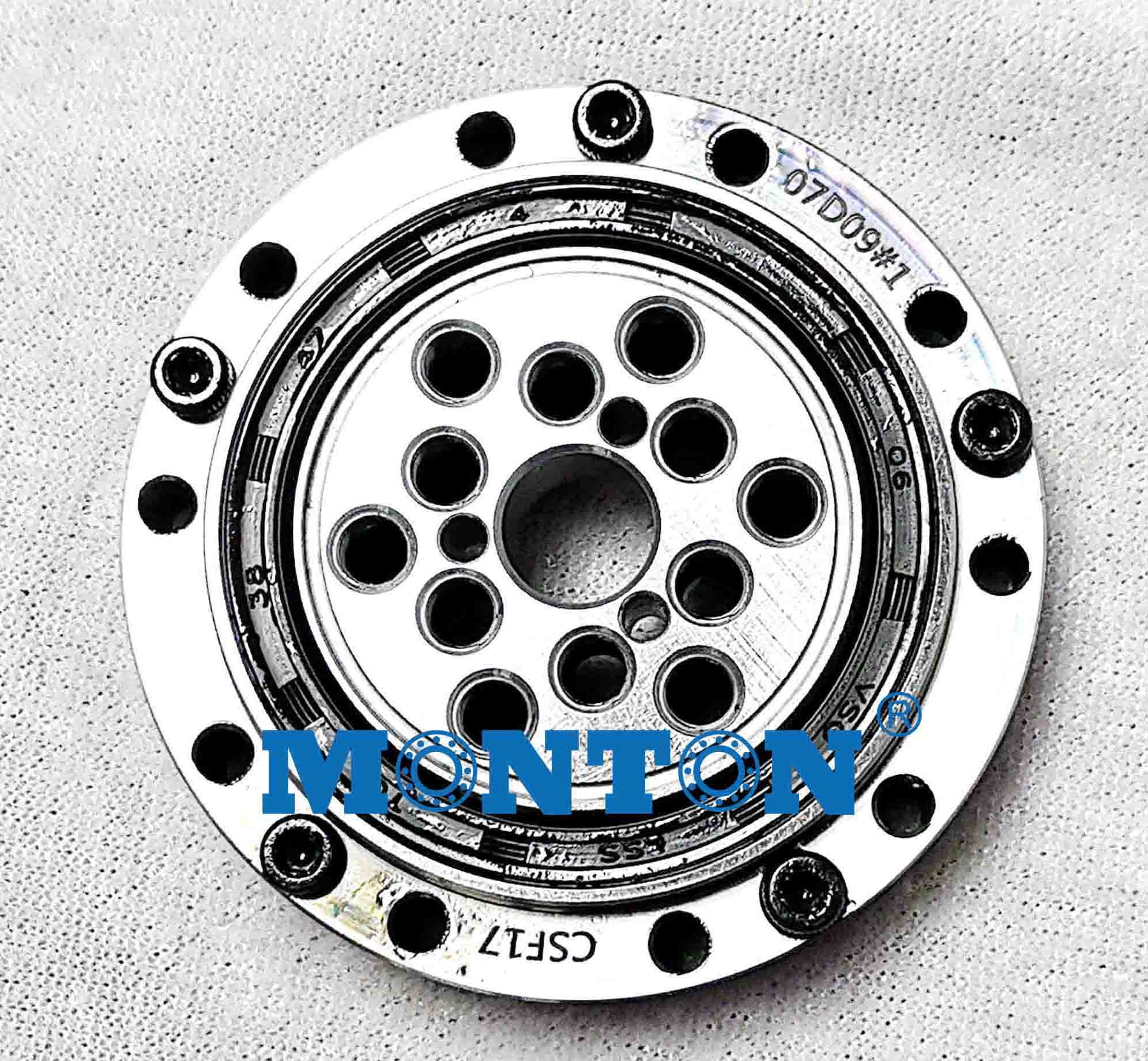

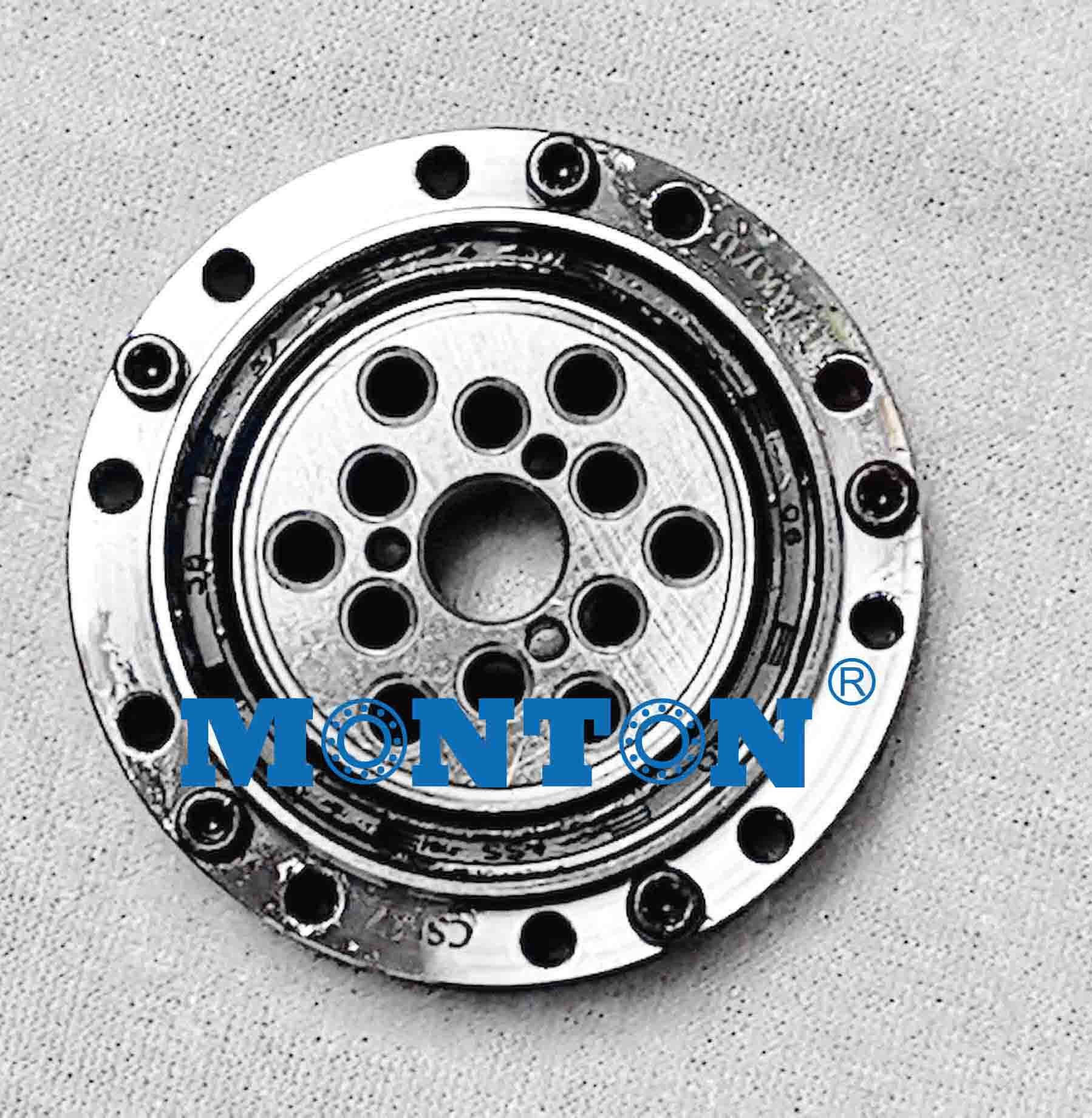

CSF17-4216 10×62×16.5mm  Cross Roller Bearing for Harmonic Drive 1

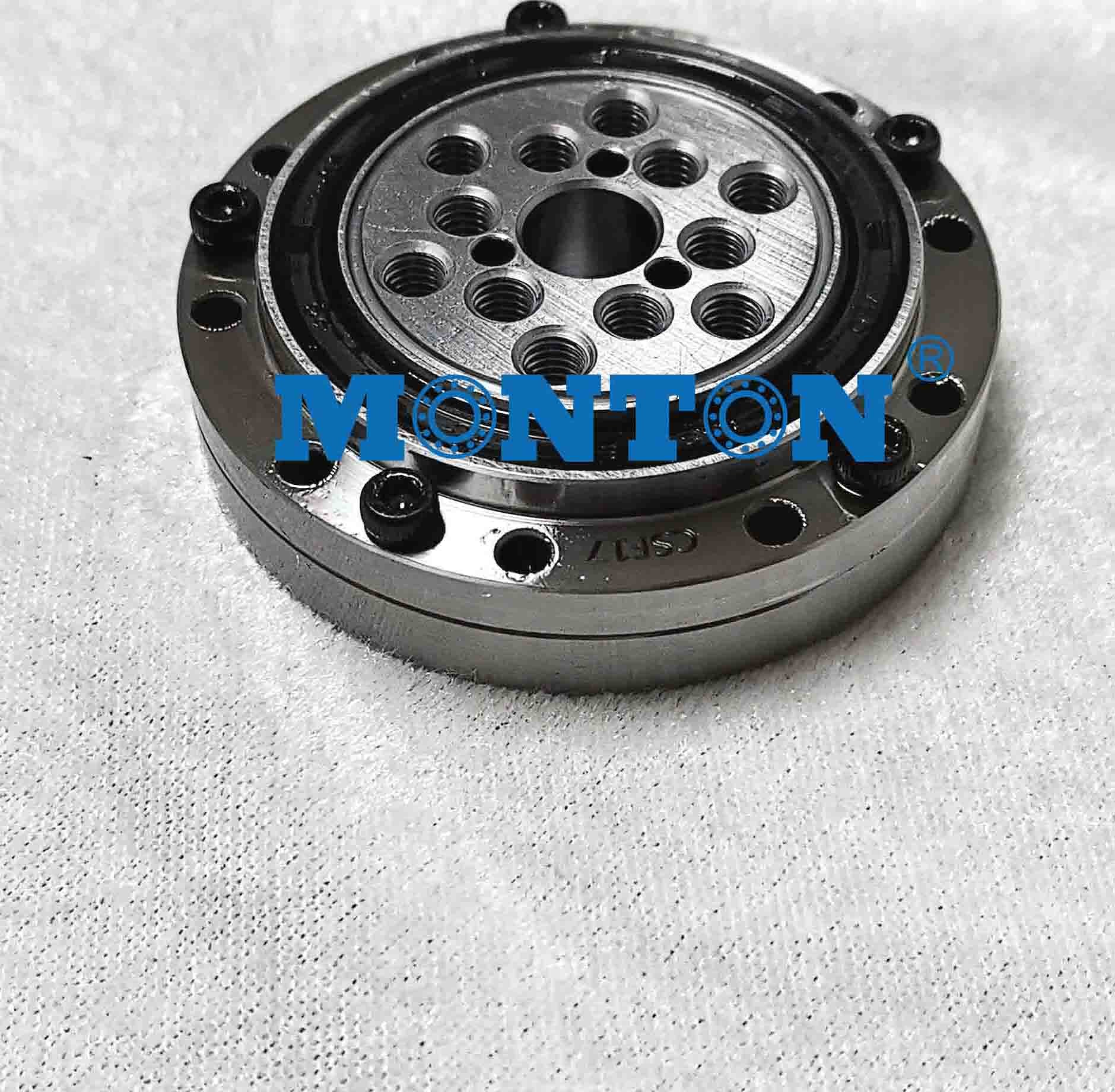

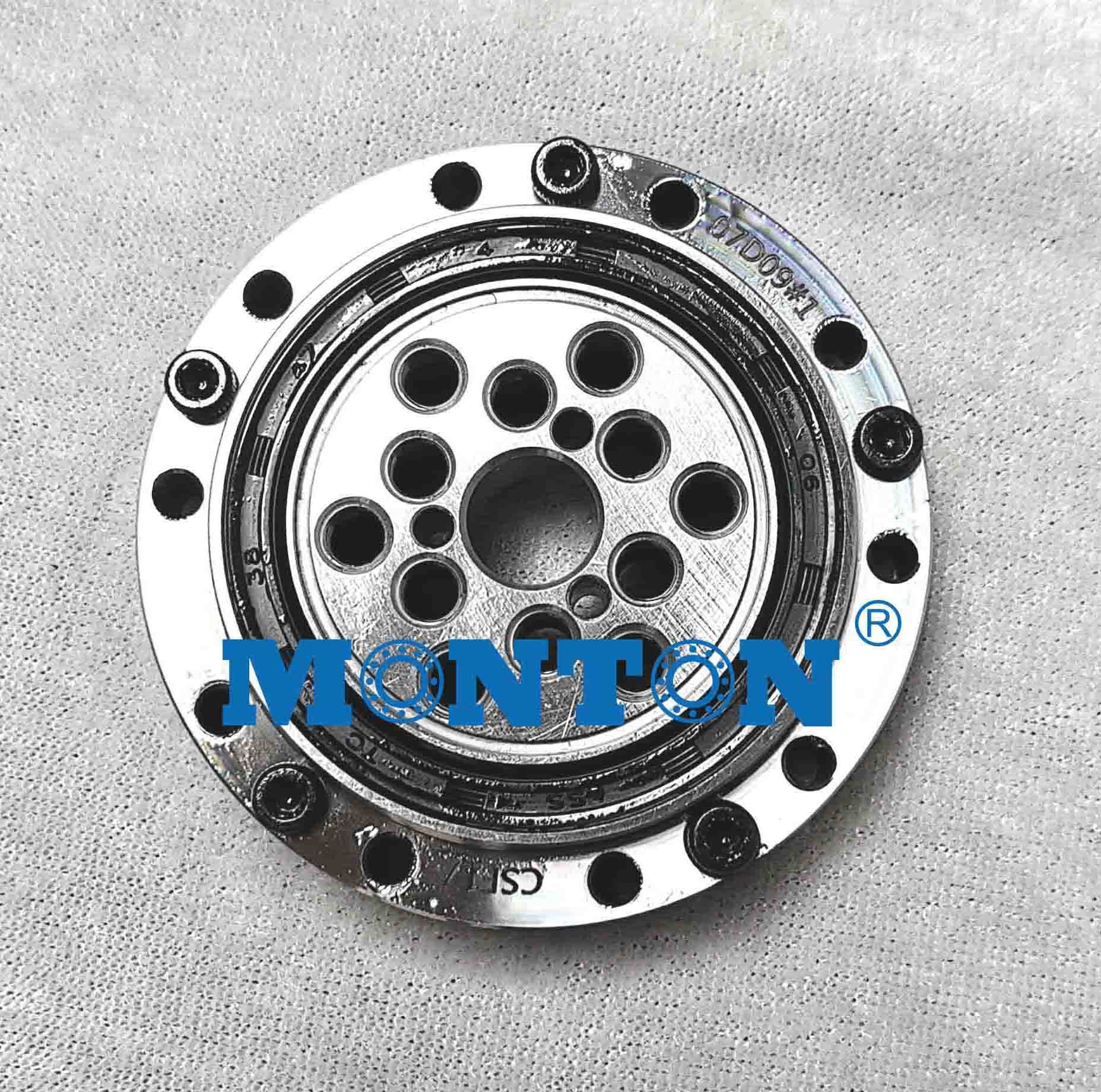

CSF17-4216 10×62×16.5mm  Cross Roller Bearing for Harmonic Drive 2

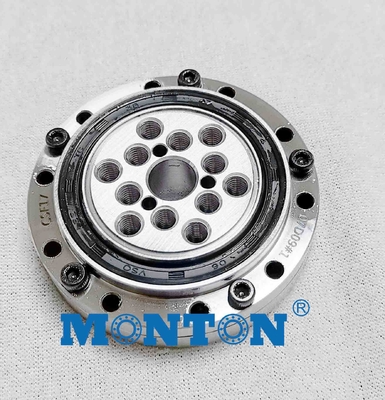

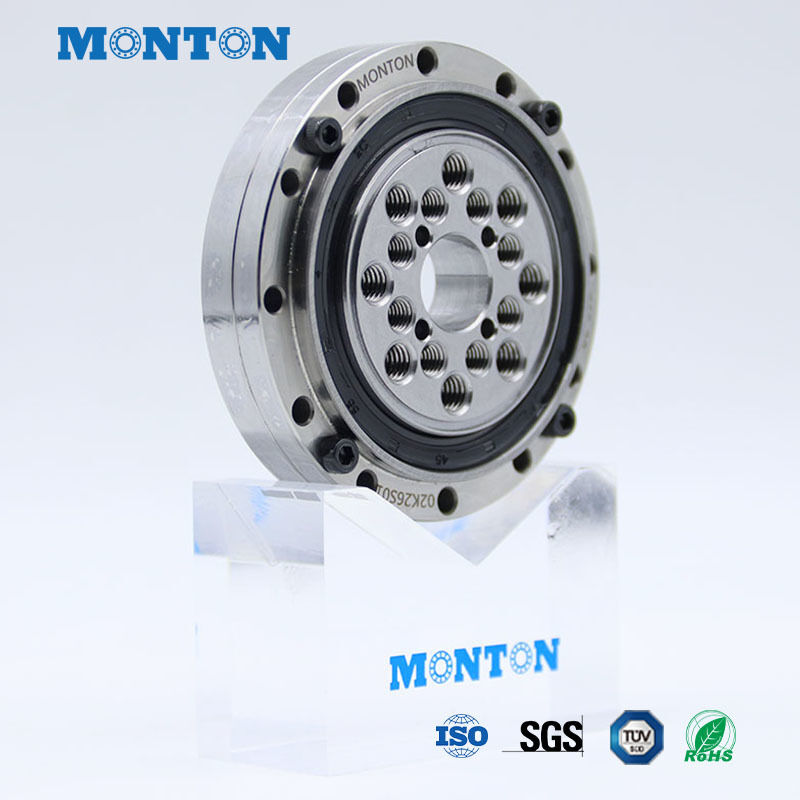

CSF17-4216 10×62×16.5mm  Cross Roller Bearing for Harmonic Drive 3

Cross Roller Bearing for Harmonic Drive is cross roller structure.According to its application area there are two types( CSF/CSG Series and SHF/SHG Series ).Rolling body are cylindrical rollers which arranged orthogonality,this structure can make one bearing can bear the load from every direction e.g. radial,axial and tilting torque etc. Bearing with high rigidity,rotation accurancy and load carrying capacity. This series bearing has compact appearance,with mounting hole,customer can mount directly,suitable for every kinds of harmonic drives.



CSF/CSG Series (Outer ring split,inner ring integraty)

Outer ring split,inner ring integraty structure ,there is no need of flange and bearing seat.suitable for every kind of CSF(CSG) series harmonic drives.



Classification Of Cross-Roller Bearings For Harmonic Drive

Harmonic speed reducers have the characteristics of small size, light weight, high torque load, high rigidity, excellent positioning accuracy and rotation precision. Harmonic drive speed reducers' main components including wave generator, flex gear, ring gear, and cross roller bearing. The wave generator also contains thin raced ball bearing(flexible bearing).



According To The Different Structures, Harmonic Reducer Output Bearings Are Divided Into The Following Types
1. CSF|CSG harmonic drive gear units bearing (outer ring integral outer ring split type)
2. SHF series harmonic reducer cross roller bearing (inner and outer ring integrated type)
3. CSD series harmonic reducer cross roller bearing (inner and outer ring integrated type)



CSFseries crossed roller bearing is specially designed for CSF|CSG harmonic reducer. It has high dimensional precision and can provide excellent running accuracy, high loading capacity and good sealing effect. With multiple precision holes on the inner and outer ring, CSF|CSG harmonic drive gear units bearings can be connected with working parts directly.



Application
Harmonic reducer bearing has a wide range of application in electronics industry, industrial automation, industrial robots, packaging machines, printing machines, and medical equipments because of its high precision, high rigidity and high transmission ratio.



Lubrication

Bearing with high quality compound lithium-based grease in factory,so under normal using condition there is no need to add grease.but for bearing running ,in the inital stage ,the frictional torque will increase temporarily, frictional torque will be stable when grease uniformly adhere to raceway and roller.



1.Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.



2.Install the locating pin to output bearing



3.Install the Screw 1, then install the Screw 2.



4.Install the wave generator and related components.
