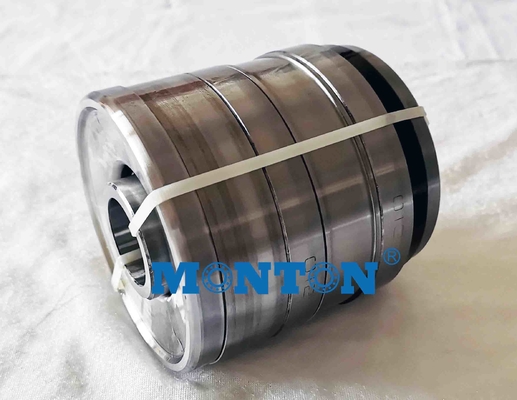

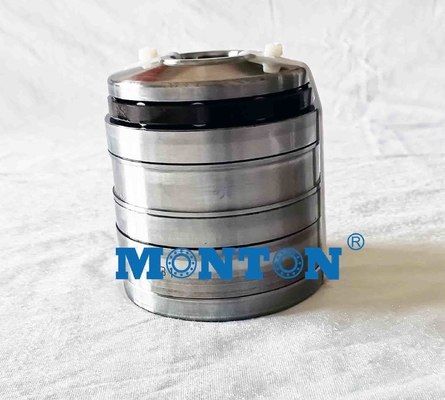

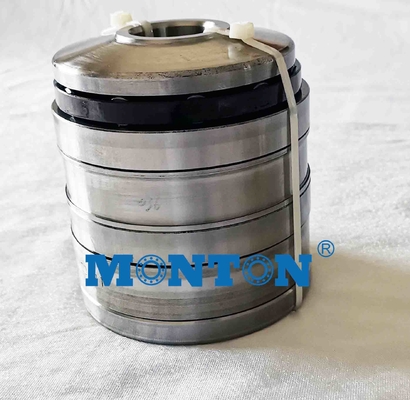

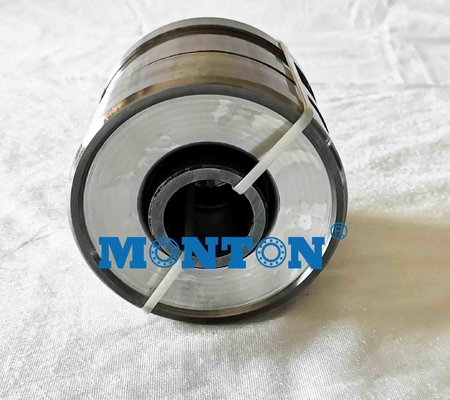

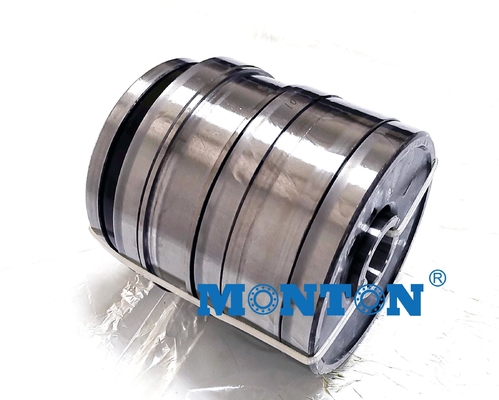

T6AR3495 34*95*196mm
Multi-Stage cylindrical roller thrust bearings
| Old_spec | Designations | Principal dimensions | Basic load ratings | Weight | |||
| d | D | H | dyc_Cr | stc_Cor | |||
| mm | KN | kg | |||||
| T6AR3495 | M6CT3495 | 34 | 95 | 196 | 699 | 2994 | 7.28 |
Tandem Thrust bearings are also known as “Multi-Stage cylindrical roller thrust bearings” .
Tandem Thrust bearings are comprised of "stages" which include precision ground and matched thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables the Tandem Thrust bearings to provide a solution in a radial restricted envelope. The bearings are available in multiple stages, 2-8 to accommodate your design requirements. Depending on your preference, these bearings are available in a wide variety of sizes and options.
TandemThrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also thesetandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries.
