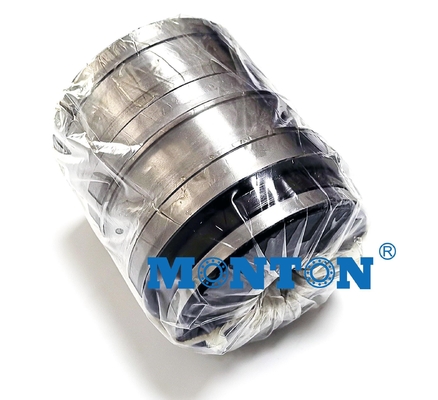

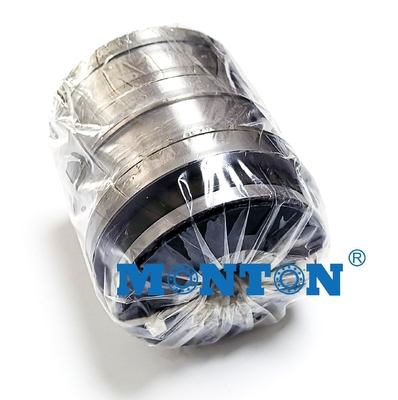

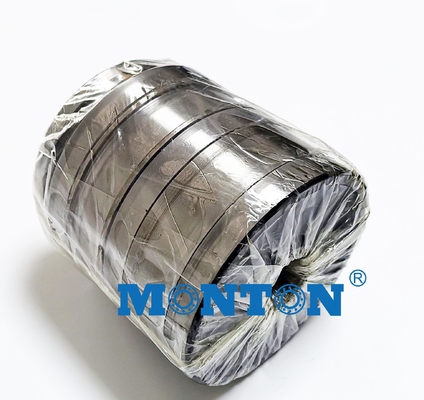

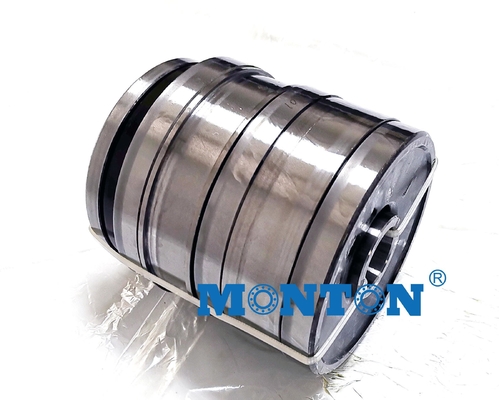

T8AR25105A2 25105320mm Multi-Stage cylindrical roller thrust bearings

Product Details:

Place of Origin:	Luoyang
Brand Name:	MONTON
Certification:	ISO9001
Model Number:	T8AR25105A2

Detail Information

Place of Origin:

Luoyang

Brand Name:

MONTON

Certification:

ISO9001

Model Number:

T8AR25105A2

Trading Information

Minimum Order Quantity:

1 PCS

Price:

Ask

Packaging Details:

Single box

Delivery Time:

5-35 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000PCS/WEEK

Product Description

T8AR25105A2 25*105*320mm

Multi-Stage cylindrical roller thrust bearings

T8AR25105A2 25*105*320mm Multi-Stage cylindrical roller thrust bearings 0

Old_spec	Designations	Bearings			Basic load ratings		Weight

		d	D	H	dyc_Cr	stc_Cor

		mm			KN		kg
T8AR25105A2	M8CT25105A2	25	105	320	1208	5223	17.3

Tandem Thrust bearings are also known as “Multi-Stage cylindrical roller thrust bearings” .

Tandem Thrust bearings are comprised of "stages" which include precision ground and matched thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables the Tandem Thrust bearings to provide a solution in a radial restricted envelope. The bearings are available in multiple stages, 2-8 to accommodate your design requirements. Depending on your preference, these bearings are available in a wide variety of sizes and options.

TandemThrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also thesetandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries.
