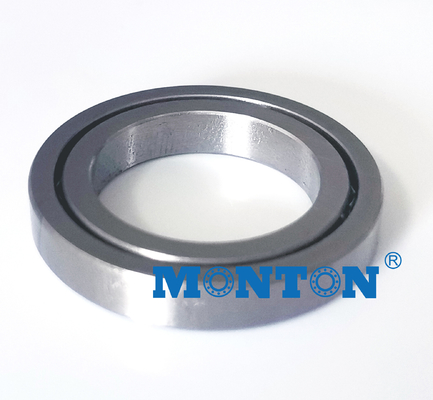

CRBT405A 40515mm Super Slim Type Crossed Roller Bearings

Product Details:

Place of Origin:	CHINA
Brand Name:	MONTON
Certification:	ISO9001
Model Number:	CRBT405A

Detail Information

Place of Origin:

CHINA

Brand Name:

MONTON

Certification:

ISO9001

Model Number:

CRBT405A

Trading Information

Minimum Order Quantity:

Price:

Ask

Packaging Details:

Singlebox

Delivery Time:

7-35 days

Payment Terms:

T/T

Supply Ability:

10000PCS/WEEK

Product Description

CRBT405A 40*51*5mm

Super Slim Type Crossed Roller Bearings

CRBT405A 40*51*5mm Super Slim Type Crossed Roller Bearings 0

Shaft dia. mm	Identification number	Mass (Ref.) g	Boundary dimensions (mm)				dimensions (mm)		Basic dynamic load rating C	Basic static load rating C0
Shaft dia. mm	Identification number	Mass (Ref.) g	d	D	B	rmin	da	Da	N	N
40	CRBT405A	26.5	40	51	5	0.15	42.5	47	2200	2520

Features of Super Slim Type Crossed Roller Bearing CRBT

The world's thinnest roller type!

Very low cross sectional height of 5.5 mm.

The cross sectional height is reduced by 69% in comparison with CRBS, which was the thinnest before (bearing bore diameter 50 mm). The width is also as small as 5 mm and the cross sectional area is reduced by 43% in comparison with conventional products.

Significant weight saving by 38% in comparison with conventional types was realizedWeight reduction is thoroughly pursued. The mass ratio is 0.38 and significant weight saving was realized in comparison with conventional slim type CRBS (bearing bore diameter 50 mm).

CRBT405A 40*51*5mm Super Slim Type Crossed Roller Bearings 1

CRBT405A 40*51*5mm Super Slim Type Crossed Roller Bearings 2
