CRBT605A 60*71*5mm Super Slim Type Crossed Roller Bearings Compact Surveillance Camera

CRBT605A 60715mm Super Slim Type Crossed Roller Bearings Compact Surveillance Camera

Product Details:

Place of Origin:	CHINA
Brand Name:	MONTON
Certification:	ISO9001
Model Number:	CRBT605A

Detail Information

Place of Origin:

CHINA

Brand Name:

MONTON

Certification:

ISO9001

Model Number:

CRBT605A

Trading Information

Minimum Order Quantity:

Price:

Ask

Packaging Details:

Singlebox

Delivery Time:

7-35 days

Payment Terms:

T/T

Supply Ability:

10000PCS/WEEK

Product Description

CRBT605A 60*71*5mm

Super Slim Type Crossed Roller Bearings

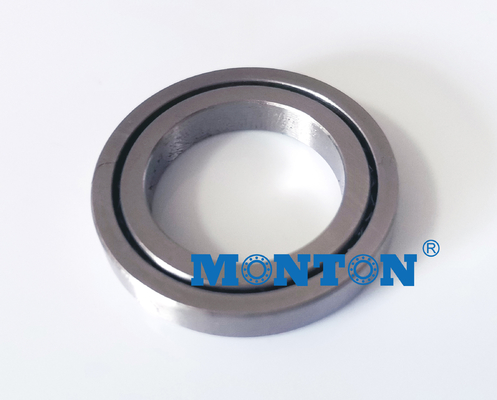

CRBT605A 60*71*5mm Super Slim Type Crossed Roller Bearings Compact Surveillance Camera 0

Shaft dia. mm	Identification number	Boundary dimensions (mm)				dimensions (mm)		Basic dynamic load rating C	Basic static load rating C0	Mass (Ref.) g
Shaft dia. mm	Identification number	d	D	B	rmin	da	Da	N	N	Mass (Ref.) g
60	CRBT605A	60	71	5	0.15	62.5	67	2.63	4.09	38

Features of Super Slim Type Crossed Roller Bearing CRBT

The world's thinnest roller type!

Very low cross sectional height of 5.5 mm.

The cross sectional height is reduced by 69% in comparison with CRBS, which was the thinnest before (bearing bore diameter 50 mm). The width is also as small as 5 mm and the cross sectional area is reduced by 43% in comparison with conventional products.

Significant weight saving by 38% in comparison with conventional types was realizedWeight reduction is thoroughly pursued. The mass ratio is 0.38 and significant weight saving was realized in comparison with conventional slim type CRBS (bearing bore diameter 50 mm).

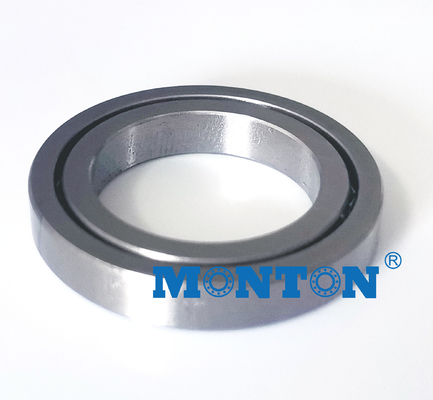

CRBT605A 60*71*5mm Super Slim Type Crossed Roller Bearings Compact Surveillance Camera 1
