| Description | Dimension | Loading(KN) | Speed | ||||
| (r/min) | |||||||
| d | D | B | rsmin | Cr | Cor | ||
| 6320-H-T35D | 100 | 215 | 47 | 3 | 160 | 130 | 5700 |
LNG Pump Bearings
LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication.
Product Features
• Stainless steel inner and outer rings
• Stainless steel rolling elements
• 2 pieces riveted fluororesin cage
Benefits
• Corrosion resistant
• Self-lubricating cage
• High speed (up to 3600 rpm)
• Extended life
Condition Description
• Arduous Environments
• Corrosive Environment
• High Speed
• High Temperature
• Lubrication
Industries
• Chemical and Pharmaceutical
• Petrochemical
1)Deep Groove Ball Bearings
| Description | Dimension | Loading(KN) | Speed | ||||
| (r/min) | |||||||
| d | D | B | rsmin | Cr | Cor | ||
| 6205-H-T35D | 25 | 52 | 15 | 1 | 14 | 7.8 | 17000 |
| 6206-H-T35D | 30 | 62 | 16 | 1 | 19.3 | 11.2 | 14000 |
| 6207-H-T35D | 35 | 72 | 17 | 1.1 | 25.5 | 15.3 | 12000 |
| 6208-H-T35D | 40 | 80 | 18 | 1.1 | 29 | 18 | 11000 |
| 6209-H-T35D | 45 | 85 | 19 | 1.1 | 31 | 20.4 | 10000 |
| 6210-H-T35D | 50 | 90 | 20 | 1.1 | 36.5 | 24 | 9500 |
| 6211-H-T35D | 55 | 100 | 21 | 1.5 | 43 | 29 | 8500 |
| 6213-H-T35D | 65 | 120 | 23 | 1.5 | 58 | 41.5 | 7000 |
| 6215-H-T35D | 75 | 130 | 25 | 1.5 | 64 | 48 | 6800 |
| 6217-H-T35D | 85 | 150 | 28 | 2 | 82.5 | 62 | 6500 |
| 6305-H-T35D | 25 | 62 | 17 | 1.1 | 22 | 11 | 22000 |
| 6308-H-T35D | 40 | 90 | 23 | 1.5 | 42.5 | 25 | 11000 |
| 6311-H-T35D | 55 | 120 | 29 | 2 | 76 | 47.5 | 10000 |
| 6314-H-T35D | 70 | 150 | 25 | 2.1 | 102 | 66 | 9000 |
| 6318-H-T35D | 90 | 190 | 43 | 3 | 132 | 100 | 6000 |
| 6320-H-T35D | 100 | 215 | 47 | 3 | 160 | 130 | 5700 |
| 6322-H-T35D | 110 | 240 | 50 | 3 | 190 | 165 | 5400 |
| 6328-H-T35D | 140 | 300 | 62 | 4 | 255 | 250 | 4000 |
2)Angular Contact Ball Bearings
| Description | Dimension | Loading(KN) | Speed | ||||
| (r/min) | |||||||
| 7205 | 25 | 52 | 15 | 1 | 15 | 9 | 26000 |
| 7206 | 30 | 62 | 16 | 1 | 22 | 14 | 22000 |
| 7207 | 35 | 72 | 17 | 1.1 | 29 | 19 | 19000 |
| 7208 | 40 | 80 | 18 | 1.1 | 30.5 | 21.6 | 17000 |
| 7209 | 45 | 85 | 19 | 1.1 | 39 | 27.5 | 15000 |
| 7210 | 50 | 90 | 20 | 1.1 | 40.5 | 30.5 | 14000 |
| 7305 | 25 | 62 | 17 | 1.1 | 18.3 | 10.6 | 18000 |
| 7306 | 30 | 72 | 19 | 1.1 | 24.8 | 15.4 | 15000 |
| 7307 | 35 | 80 | 21 | 1.5. | 30.6 | 19.6 | 14000 |
| 7308 | 40 | 90 | 23 | 1.5 | 37 | 24.4 | 12600 |
| 7309 | 45 | 100 | 25 | 1.5 | 47.6 | 31.8 | 12000 |
| 7310 | 50 | 110 | 27 | 2 | 54.6 | 39.2 | 10000 |
Application:

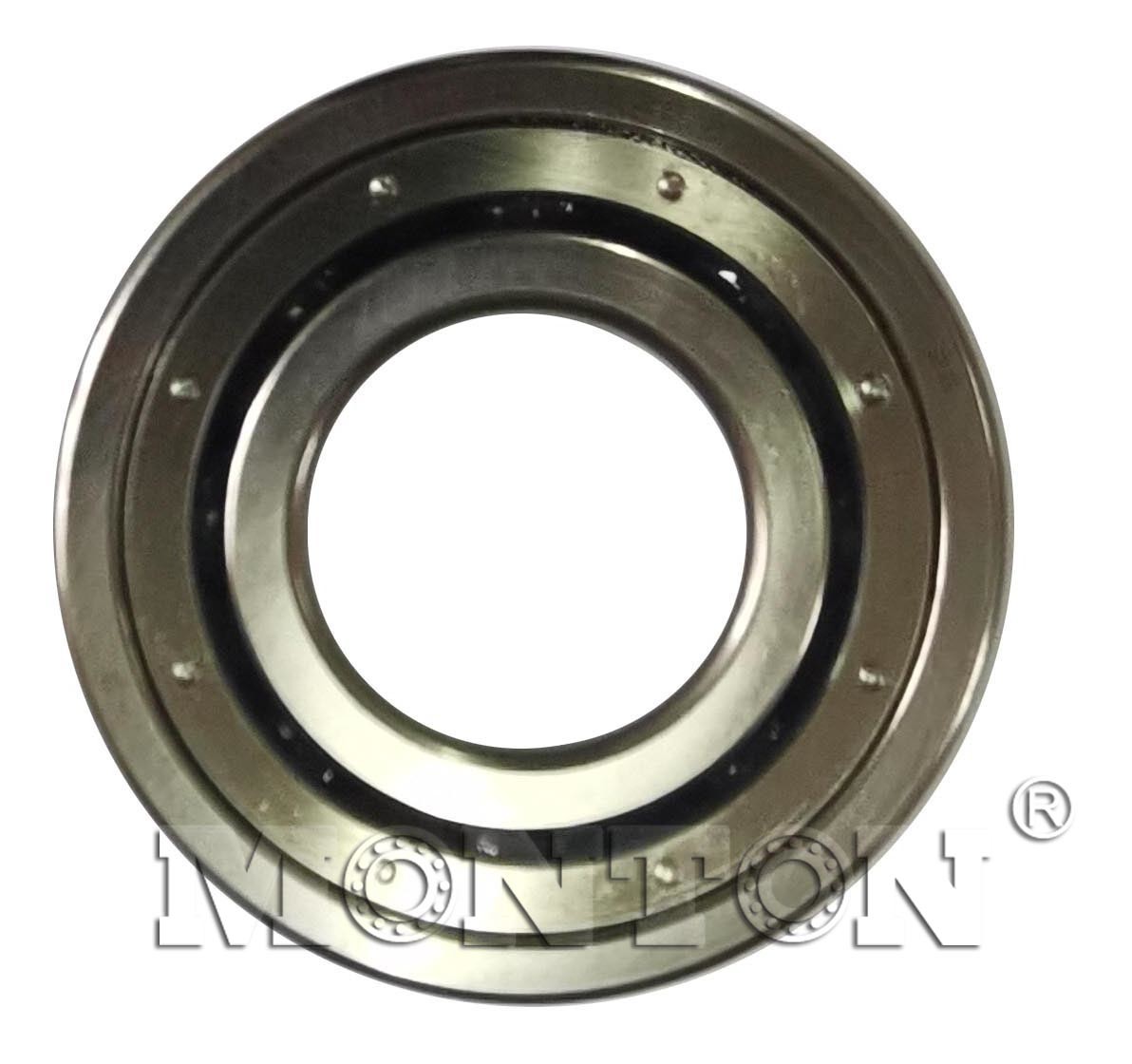

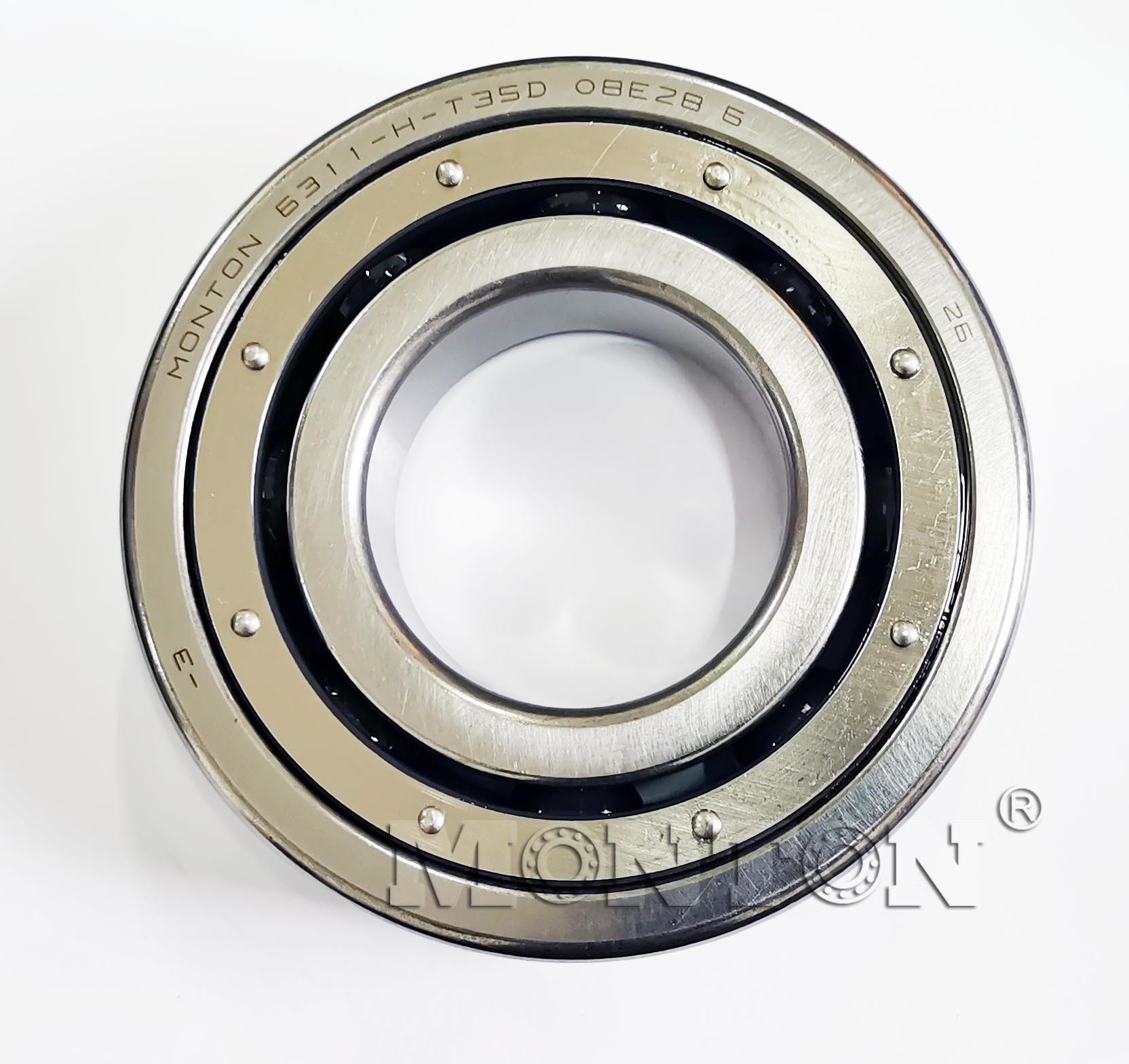

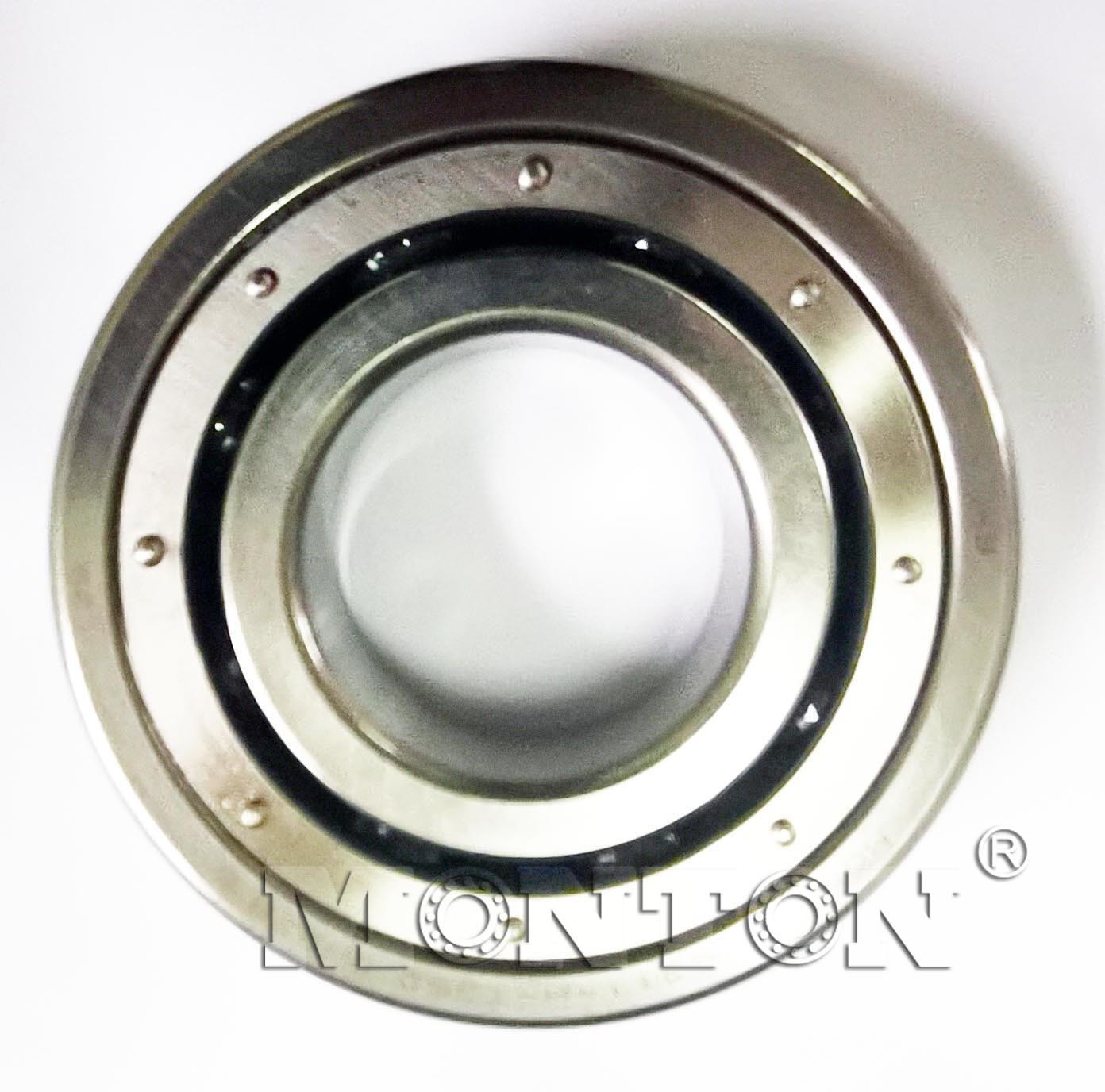

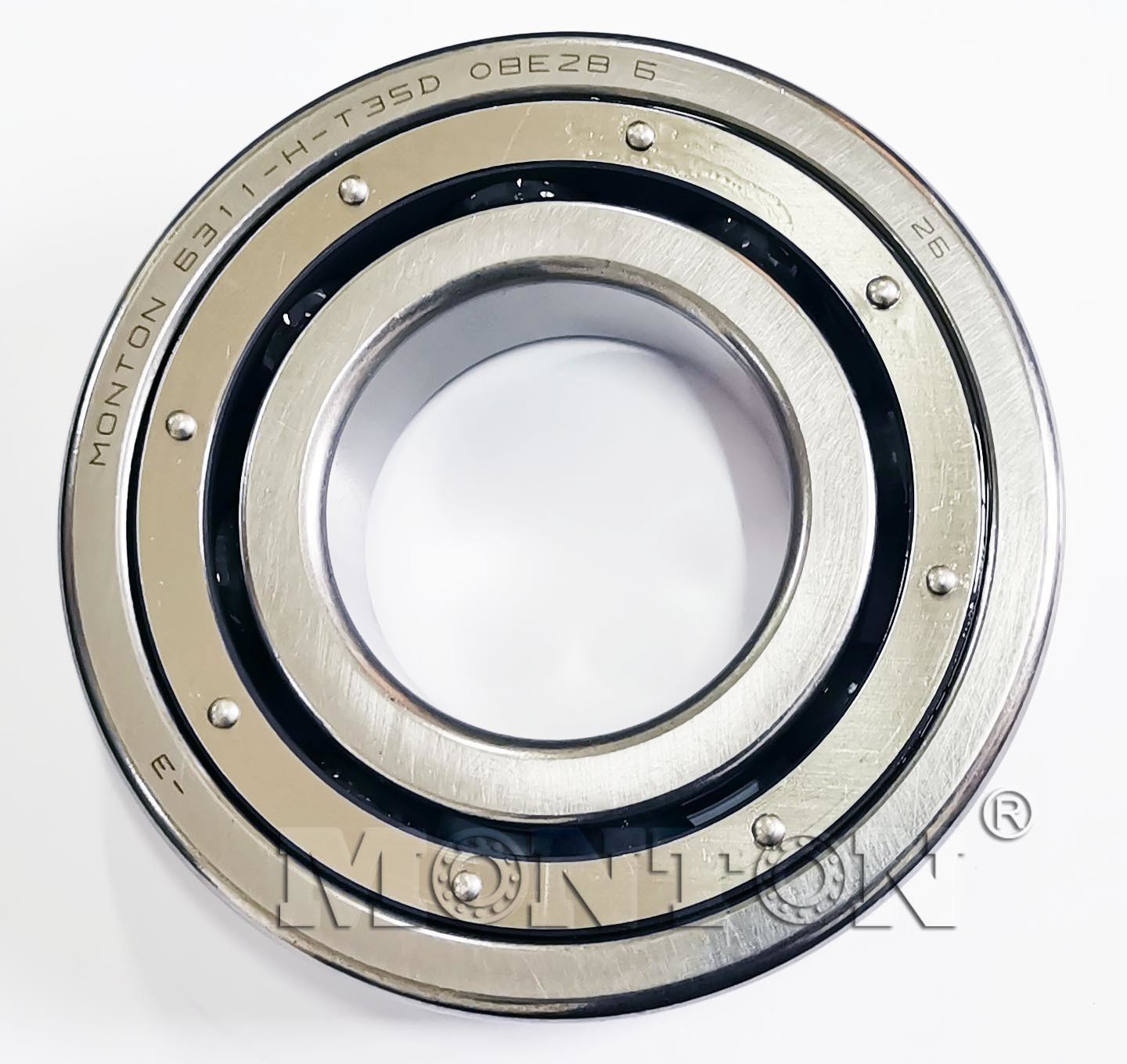

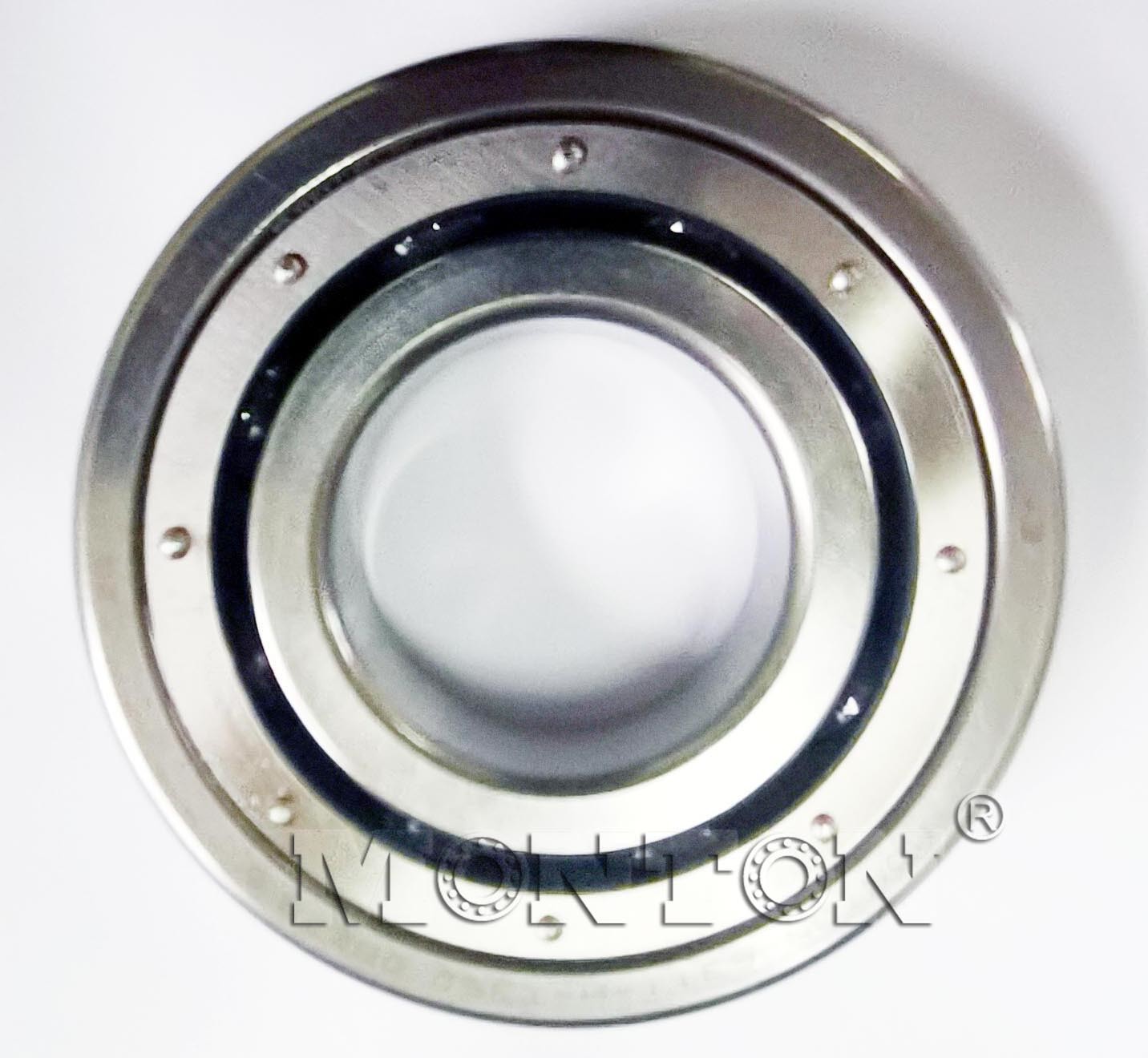

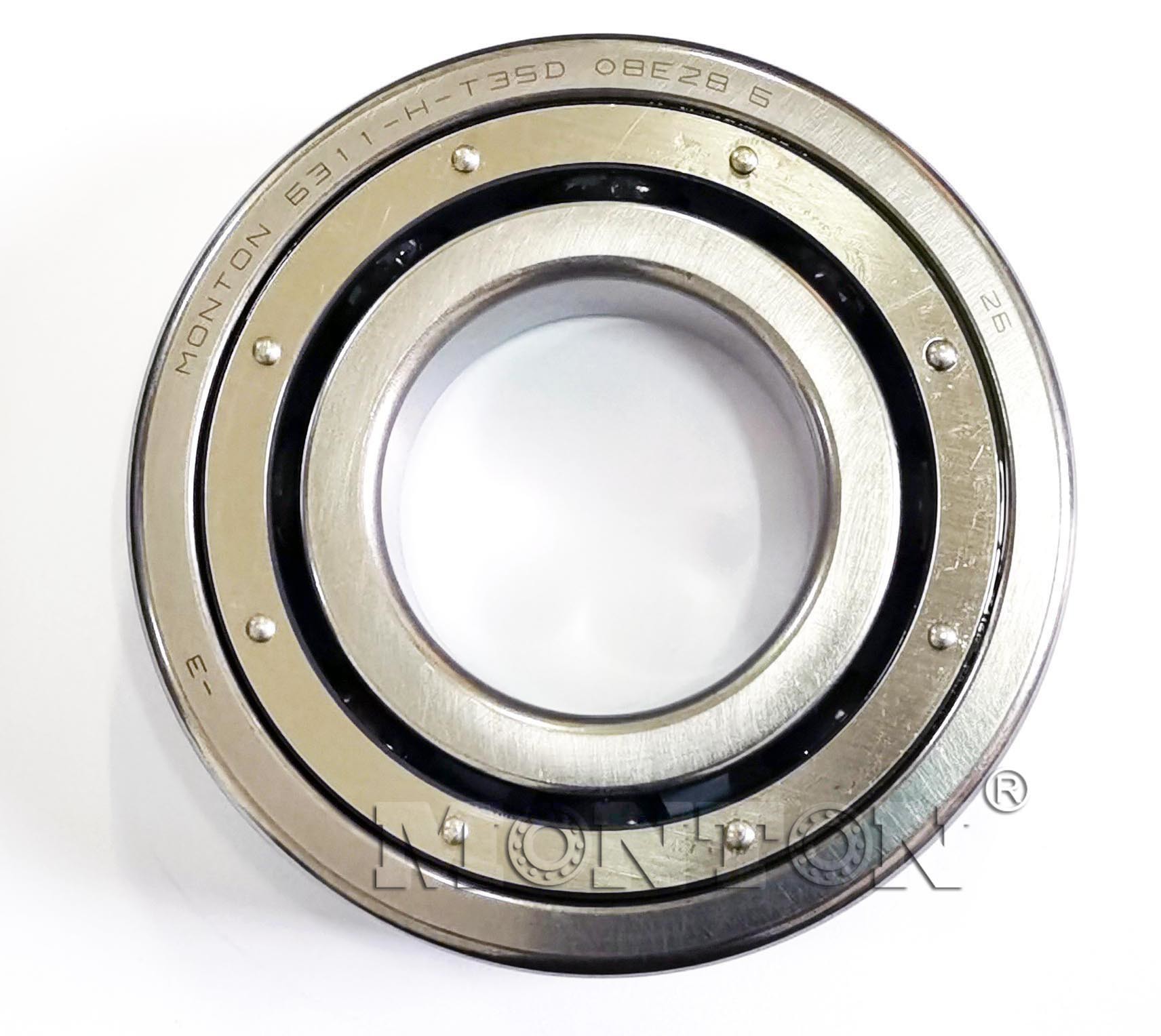

Bearing picture:
Testing ways:
