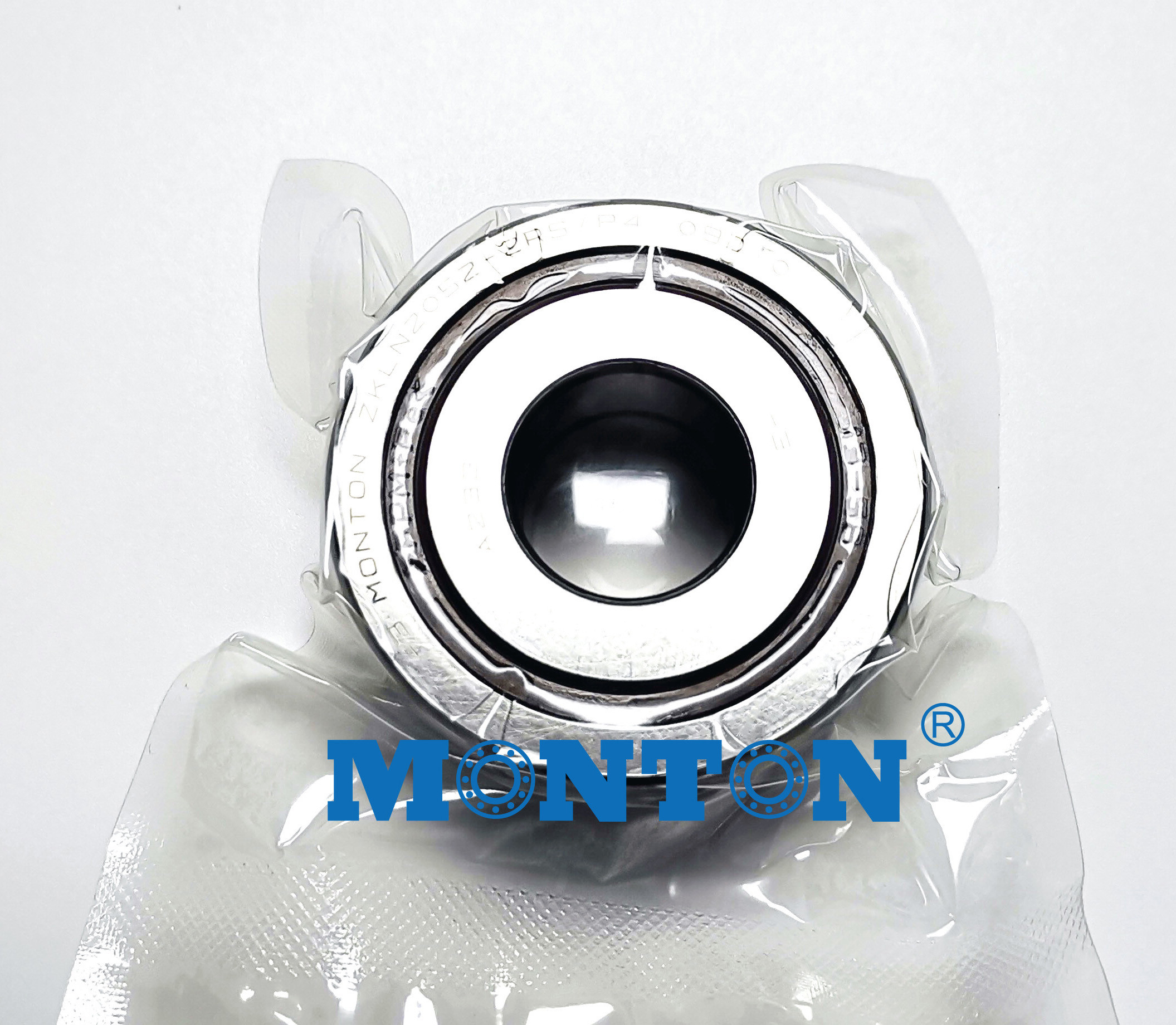

ZKLN4075-2RS-2AP 40*75*68mm angular contact ball bearings

ZKLN1242-2RS-PE Bearing

D: 12 Tolerance: -0,01

D: 42 Tolerance: -0,011

B: 25 Tolerance: -0,25

Mm: 0,068 Mass Moment Of Inertia For Rotating Inner Ring

5038 : 5038 Axial Preload Force

Da Max: 33

C0a: 24700 Basic Static Load Rating, Axial

ZM12 : ZM12 Designation Of Recommended INA Locknut

CkL: 50 Tilting Rigidity

Ca: 16900 Basic Dynamic Load Rating, Axial

R1 Min: 0,6

NG Fett: 3800 Limiting Speed For Grease Lubrication

M: 0,2 Mass

Da Min: 16

: Locknuts Not Included In Delivery.

Rmin: 0,3

5 : 5 Axial Runout

The Axial Runout Data For Screw Drive Bearing Arrangements Are Based On The Rotating Inner Ring.

D1: 25

CaL: 375 Axial Rigidity

MA: 8 Tightening Torque

Only Valid In Conjunction With  Precision Locknuts

MRL: 0,16 Bearing Frictional Torque

Type: Bearings For Screw Drives

Product Description

These bearings are designed for the highly dynamic operating conditions in screw drives that require high accuracy, high load carrying capacity, high rigidity, low friction and maintenance-free or low-maintenance.

The bearings can support both radial forces and high axial forces due to the 60� contact angle.

The ZKLN bearing range is mounted� in a housing bore and the bearing outer ring is axially located by a cover.

Double direction
PE: Increased tolerances, used when lower accuracy is acceptable
Lip seals on both sides

ZKLN..PE Series Angular Contact Bearings: Bearings of series ZKLN..PE are double row axial angular contact ball bearings with an outer ring suitable for mounting in a housing and has integral seals. These bearings are predominantly used for the bearing arrangements of screw drives and are an extremely economical solution for criteria such as a simple adjacent construction and low fitting costs. The larger sizes of these bearings – with a bore diameter of 60 mm to 100 mm are particularly suitable for bearing arrangements of large threaded spindles or rotating threaded nuts, in other words screw drives with a static spindle.
Double row axial angular contact ball bearings of series ZKLN...2RSPE have two rows of balls with a contact angle of 60deg. The bearings are sealed on both sides with rubber seals and are greased for life for the majority of applications. Additional seals in the adjacent construction are not required. In most applications, the initial greasing is sufficient for the whole operating life. If necessary, re lubrication can be carried out via a threaded connector from a central lubrication system on the flange side or by means of a lubrication groove and lubrication hole via the adjacent construction. The axial run out tolerance corresponds approximately to P5 in accordance with DIN 620.
