6311-H-T35D 25*52*15mm
low temperature bearing for cryogenic pump monton
| Description |
Dimension |
Loading(KN) |
Speed |
| (r/min) |
| Bearing |
d |
D |
B |
rsmin |
Cr |
Cor |
|
| 6205-H-T35D |
25 |
52 |
15 |
1 |
14 |
7.8 |
17000 |

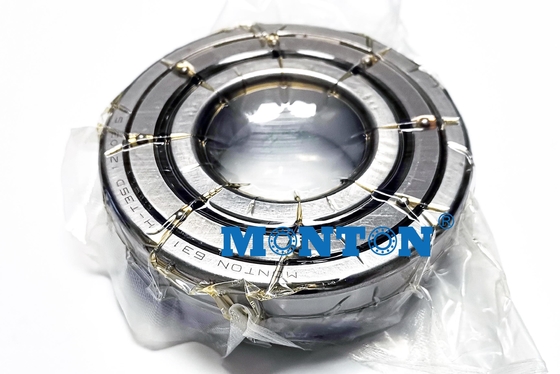

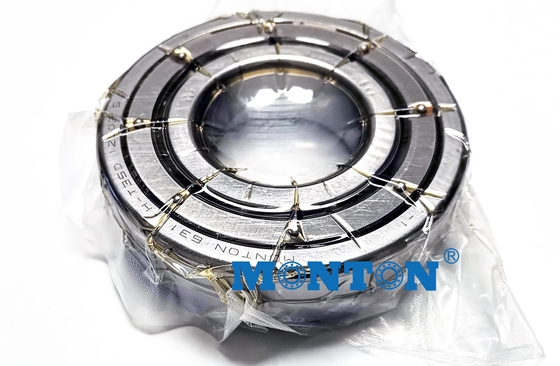

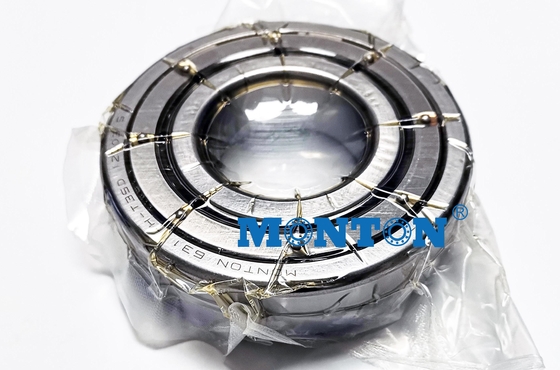

6311-H-T35D Photos
LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.
LNG pump bearings including:
1.Angular contact ball bearings
2.Deep groove ball bearings
3.Cylindrical roller bearings
Operating Conditions:
› Speed: 1160 rpm – 3600 rpm
› Gas temperature: –196° C up to 0° C
› Mainly axial load
› Very poor lubrication
Condition Description
Arduous Environments
Corrosive Environment
High Speed
Low temperature
Industry
Chemical and Pharmaceutical
Petrochemical
Features
Stainless steel inner and outer rings
Stainless steel rolling elements
2 pieces riveted fluororesin cage
Benefits
Corrosion resistant
Self-lubricating cage
High speed (up to 3600 rpm)
Extended life
Now we have the below codes under production and have stock:
6205-H-T35D
6206-H-T35D
6207-H-T35D
6208-H-T35D
6209-H-T35D
6210-H-T35D
6211-H-T35D
6213-H-T35D
6215-H-T35D
6217-H-T35D
6305-H-T35D
6308-H-T35D
6311-H-T35D
6314-H-T35D
6318-H-T35D
6320-H-T35D
6322-H-T35D
6328-H-T35D
