F-53507.T6AR INA Tandem thrust bearing for twin screw extruder gearbox

1 PCS
MOQ
Ask
Price
F-53507.T6AR INA Tandem thrust bearing for twin screw extruder gearbox
Features Gallery Product Description Request A Quote
Features
Specifications
Basic Infomation
Place of Origin: Luoyang
Brand Name: MONTON/INA
Certification: ISO9001
Model Number: F-53507.T6AR
Payment & Shipping Terms
Packaging Details: Single box
Delivery Time: 5-35 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PCS/Week
Product Description

F-53507.T6AR Tandem thrust bearing for twin screw extruder gearbox

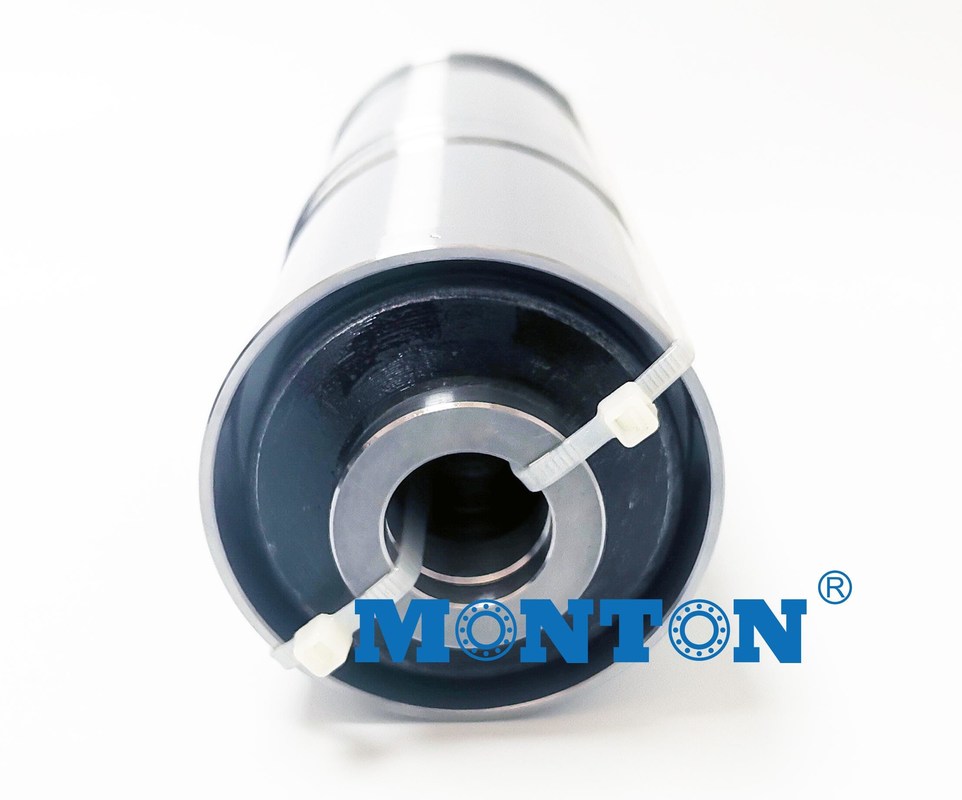

F-53507.T6AR INA Tandem thrust bearing for twin screw extruder gearbox 0

BEARING NO. Dimensions Rows Load Rating (KN) weight
Inner Outer Height C CO
    KG
F-53507.T6AR 22 70 ? 6 73 142 3.31
F-53507-100.T6AR 22 70 ? 6     3.26



Tandem Thrust bearings are also known as “Multi-Stage cylindrical roller thrust bearings” .

Tandem Thrust bearings are comprised of "stages" which include precision ground and matched thrust plates. These bearings also include compression sleeves separated by cylindrical roller assemblies. This design enables the Tandem Thrust bearings to provide a solution in a radial restricted envelope. The bearings are available in multiple stages, 2-8 to accommodate your design requirements. Depending on your preference, these bearings are available in a wide variety of sizes and options.



TandemThrust Bearings can receive heavy load in a limited space and support firmly in the direction of axis and last long with low frictional power. In addition, these bearings are moved by oil lubrication. Also thesetandem thrust bearings are used principally in gear boxes for single & twin screw extruders in the rubber and plastic industries.

1.Multi-stage cylindrical roller thrust bearing (basic type) adopts elastic spacer to connect the shaft washer,housing washer, roller and cage assembly.

The components of this Thrust Bearings are demountable. The user should assemble or dismount the bearing meticulously according to numeral order we provide.

2. Multi-stage cylindrical roller thrust bearing (shaft type) is made by penetrating an axis through theinner bore of basic type multi-stage cylindrical roller thrust bearing and fastening the bearing to the axis by locking collar. The components of this type of cylindrical roller thrust bearing are inseparable.

3. Multi-stage cylindrical roller thrust bearing (sleeve type) locking collar is made by covering a sleeveto the external of the basic type multi-stage cylindrical roller thrust bearing.It is also inseparable,and is assembled and disassembled as a whole.

Multi-Stage cylindrical roller thrust bearings(Tandem bearings) has the characteristics of limited radial space, high axial forces, equal support of all the rows of rollers and long operating life, and is the ideal spindle of parallel screw extruder.

F-53507.T6AR INA Tandem thrust bearing for twin screw extruder gearbox 1

F-53507.T6AR INA Tandem thrust bearing for twin screw extruder gearbox 2

F-53507.T6AR INA Tandem thrust bearing for twin screw extruder gearbox 3
