CSF-20-50-2A-GR-AP harmonic drive gear reducer
1
MOQ
USD
Price
CSF-20-50-2A-GR-AP harmonic drive gear reducer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: CSF-20-50-2A-GR-AP
High Light:

slewing ring drive

,

hydraulic slew drive

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Specifications
Material: 50Mn Or 42CrMo
Dimension: 100~6000mm
Application: The Machines
Product Description

CSF-20-50-2A-GR-AP

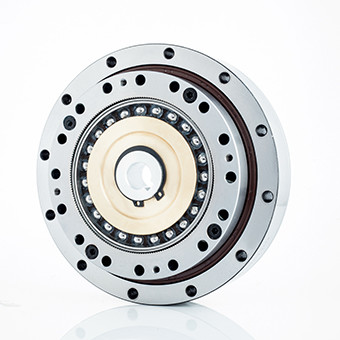

CSF-20-50-2A-GR-AP harmonic drive gear reducer 0

Gear Performance Data
Rated Torque L10 25 Nm
Limit for Average Torque 34 Nm
Limit for Repeated Peak Torque 56 Nm
Limit for Momentary Peak Torque 98 Nm
Starting Torque 6.6 Ncm
Backdriving Torque 4 Nm
Ave. Input Speed 3,500 rpm
Standard Accuracy 1 arc min
Mass 0.28 kg
Torsional Stiffness
T1 7 Nm
K1 1.3 10^4 Nm / rad
T2 25 Nm
K2 1.8 10^4 Nm / rad
K3 2.3 10^4 Nm / rad
