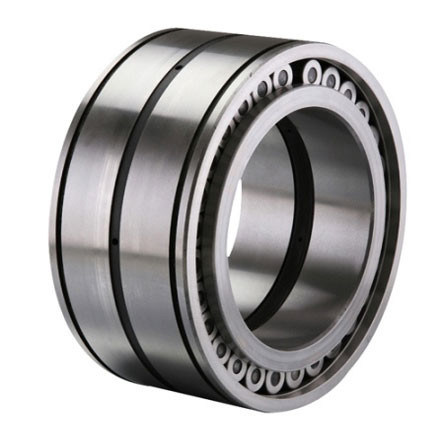

SL185013 Double Row Full Complement Roller Bearing

1
MOQ
USD
Price
SL185013 Double Row Full Complement Roller Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15 Or GCr15SiMn
Application: Vibration Machinary,CNC Machine And So On
Accuracy: P6 Or P5
High Light:

spherical roller bearing

,

cylindrical thrust bearing

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: SL185013
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

Cylindrical Roller Bearings (full complement)

Full complement Cylindrical Roller Bearings have the maximum amount of rollers. Because of this Cylindrical Roller Bearings are very rigid and have a high load capacity. Cylindrical Roller Bearings are constructed with an inner and an outer ring with in-between cylindrical rollers which are guided by rings.

Full complement Cylindrical Roller Bearings cannot attain the high revolutions of Cylindrical Roller Bearings with cage. Full Complement Cylindrical Roller Bearings can be manufactured with one row or with two rows of cylindrical bearings. They can be used as a fixed bearing, support bearing or as a single bearing.



Cylindrical Roller Bearings (with cage)

Cylindrical Roller Bearings with cage are very rigid and have a high radial load capacity. Because of their cage, Cylindrical Roller Bearings are suitable for higher speeds than full complement Cylindrical Bearings. Single row Cylindrical Roller Bearings with cage have an inner- and an outer ring with in-between a cage with cylindrical rollers.

The inner and outer rings can be supplied with or without lips. With lips Cylindrical Roller Bearings can be used as a fixed bearing, support bearing or as a single bearing. For easier assembly the inner- and outer rings can be mounted separately. The cage prevents the cylindrical rollers from coming into contact with each other. Product range: N, NU, NJ, NF, NUP, NJG, NN, NNF series.



model d D B
mm mm mm
SL182204 20 47 18
SL182205 25 52 18
SL182206 30 62 20
SL182207 35 72 23
SL182208 40 80 23
SL182209 45 85 23
SL182210 50 90 23
SL182211 55 100 25
SL182212 60 110 28
SL182213 65 120 31
SL182214 70 125 31
SL182215 75 130 31
SL182216 80 140 33
SL182217 85 150 36
SL182218 90 160 40
SL182219 95 170 43
SL182220 100 180 46
SL182222 110 200 53
SL182224 120 215 58
SL182226 130 230 64



Cylindrical roller bearing main application :

Full-complement cylindrical roller bearings for crane sheaves
Gear box producers
Transmission motor producers
Steel industry
Producers for construction equipment
Forest technology
Synthetic material industry
Machine tool producers
Producers of measuring devices and dividing units
Rotary table manufactures
Maritime industry
Metal forming technology
Crane sheave on the sea
Deck crane
Transmission
Planetary speed reducer
