NN3016KP4W33 With Low Profile Stainless Steel Cylindrical Roller Bearing

1
MOQ
USD
Price
NN3016KP4W33 With Low Profile Stainless Steel Cylindrical Roller Bearing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15 Or GCr15SiMn
Application: Vibration Machinary,CNC Machine And So On
Accuracy: P5,SP,P4,UP
MQC: 1PC
High Light:

spherical roller bearing

,

sealed cylindrical roller bearings

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: NN3016KP4W33
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

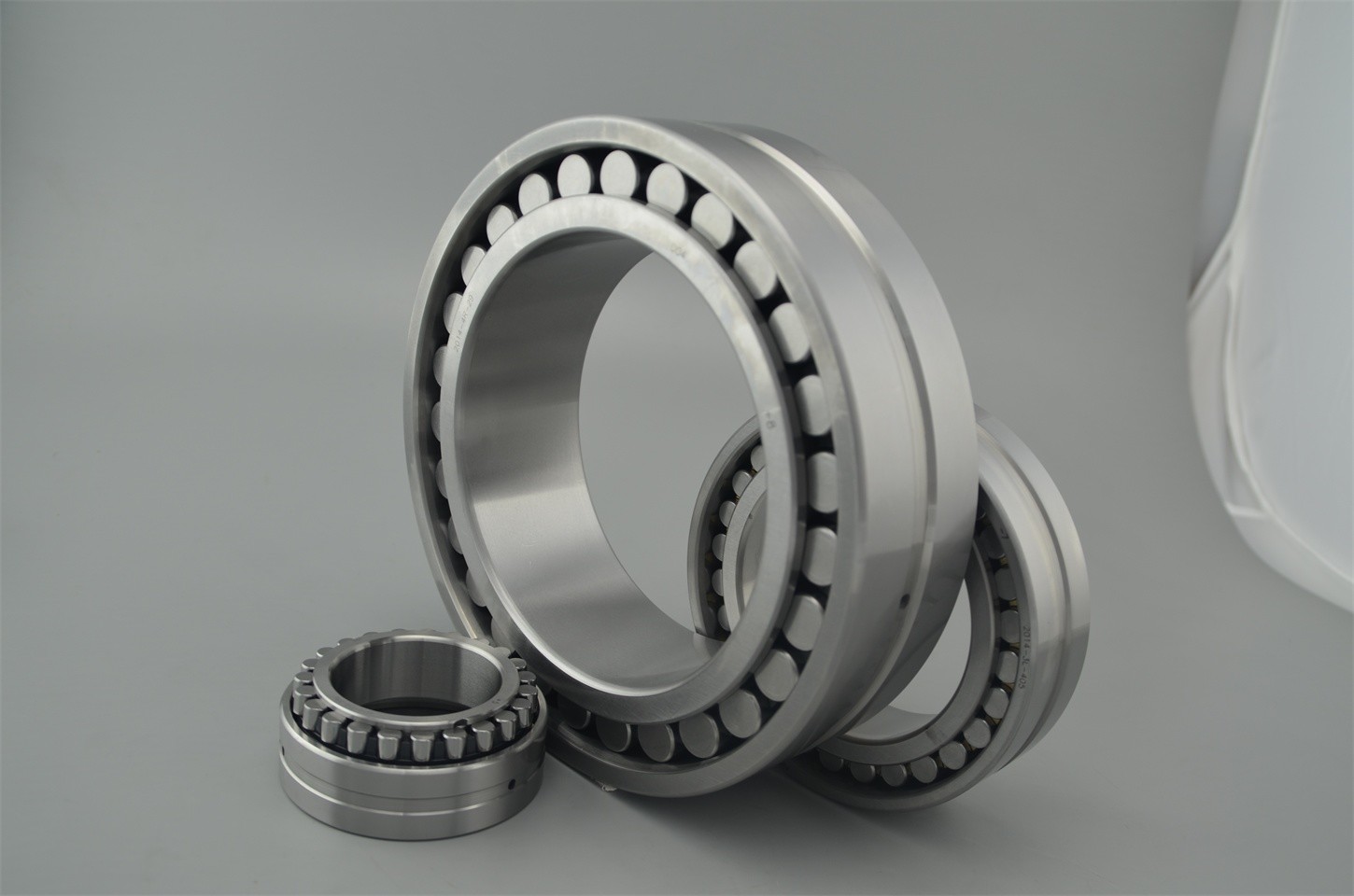

Double row cylindrical roller bearings feature a low profile and offer a high radial
load capacity. They are torsion-resistant and very stiff. The radial clearance for
tapered bore is easy to adjust by moving the inner ring.



Code Dimension Load rating Weight ≈
static dynamic
  d
mm
D
mm
B
mm
C0
kN
C
kN

kg
NN3020M2 100 150 37 265 157 2,3
NN3021M2 105 160 41 329 201 3
NN3022M2 110 170 45 384 232 3,8
NN3024M2 120 180 46 401 236 4,1
NN3026M2 130 200 52 502 296 6,1
NN3028M2 140 210 53 523 301 6,5
NN3030M2 150 225 56 595 338 7,9
NN3032M2 160 240 60 670 376 9,6
NN3034M2 170 260 67 823 459 13,1
NN3036M2 180 280 74 819 489 17
NN3038M2 190 290 75 1.098 603 18,1
NN3040M2 200 310 82 1.255 690 23
NN3044M2 220 340 90 1.558 849 32,9
NN3048M2 240 360 92 1.627 863 36
NN3052M2 260 400 104 2.061 1.090 48
NN3056M2 280 420 106 2.150 1.109 52
NN3060M2 300 460 118 2.585 1.293 71
NN3064M3 320 480 121 2.714 1.372 78
NN3068M 340 520 133 3.484 1.730 100
NN3072M 360 540 134 3.273 1.583 105
NN3076M 380 560 135 3.514 1.705 114
NN3084M 420 620 150 4.561 2.168 156
NN3096A.M 480 700 165 6.061 2.772 214
NN30/530M2 530 780 185 8.115 3.755 299
Code Dimension Load rating Weight ≈
static dynamic
  d
mm
D
mm
B
mm
C0
kN
C
kN

kg
NNU4920M 100 140 40 253 128 1,9
NNU4921M 105 145 40 261 130 2
NNU4922M 110 150 40 276 134 2
NNU4924M 120 165 45 341 175 2,9
NNU4926M 130 180 50 403 206 3,8
NNU4928M 140 190 50 430 213 4,1
NNU4930M 150 210 60 642 325 6
NNU4932M 160 220 60 666 329 6,4
NNU4934M 170 230 60 711 342 6,7
NNU4936M 180 250 69 944 450 6,7
NNU4938M 190 260 69 1.006 467 10,2
NNU4940M 200 280 80 1.155 547 14,5
NNU4944M 220 300 80 1.234 564 15,7
NNU4948M 240 320 80 1.314 580 16,8
NNU4952M 260 360 100 1.983 870 29,6
NNU4956M 280 380 100 2.109 898 31,4
NNU4960M 300 420 118 2.665 1.156 48,7
NNU4964M 320 440 118 2.838 1.196 53,6
NNU4968M 340 460 118 2.929 1.210 56,3
NNU4972M 360 480 118 3.102 1.248 59,2
NNU4976M 380 520 140 3.971 1.610 87,5
NNU4980M 400 540 140 4.210 1.665 91,7
NNU4984M 420 560 140 4.336 1.685 95,4
NNU4988M 440 600 160 5.298 2.082 133
NNU4992M 460 620 160 5.607 2.153 138
NNU4996M 480 650 170 6.106 2.347 163
NNU49/500M 500 670 170 6.285 2.378 169
NNU49/530M 530 710 180 8.250 3.064 201
NNU49/560M 560 750 190 8.860 3.281 241
NNU49/600M 600 800 200 10.249 3.602 282
NNU49/630M 630 850 218 11.393 4.146 359
NNU49/670M 670 900 230 13.868 5.110 408
NNU49/710M 710 950 243 15.893 5.698 489
NNU49/800M 800 1.060 258 17.620 6.234 626
37186 100 140 40 246 125 2,1
08.26.01 260 360 115 2.545 1.056 37,5
08.52.01 530 780 250 12.200 5.500 420
08.79.01 800 980 180 10.800 3.350 293
24.60.01 60 95 44 190 125 1,2
