Name: Xingcheng Steel Spherical Roller Bearing For Paper Making Machines Anti Rust
Brand: MONTON
SKU: 22308CCW33
Rating: 4.6 (186 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: GCr15SiMn Or GCr15

Accuracy: P0 Or P6 Or P5

Market: Europe Or USA Or Turkey Or Russia

Code: 22308CCW33

Cage Material: CC Or MB Or CA

Steel: Xingcheng Steel

Highlight:

radial roller bearing

stainless steel spherical bearings

Basic Infomation

Place of Origin: CHINA

Brand Name: MONTON

Certification: ISO9001

Model Number: 22308CCW33

Payment & Shipping Terms

Packaging Details: Singlebox

Delivery Time: 7-35 days

Payment Terms: T/T

Supply Ability: 10000PCS/WEEK

Gallery

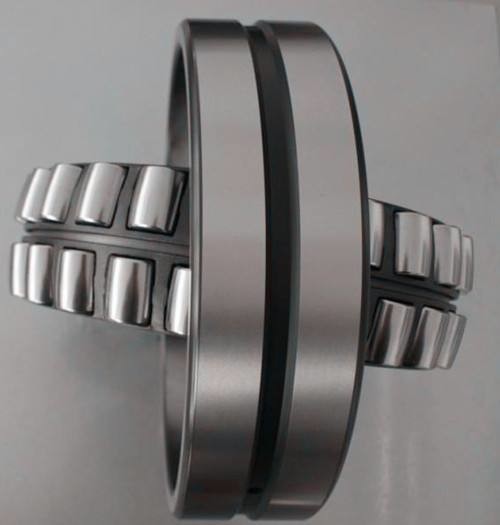

Xingcheng Steel Spherical Roller Bearing For Paper Making Machines Anti Rust

Product Description

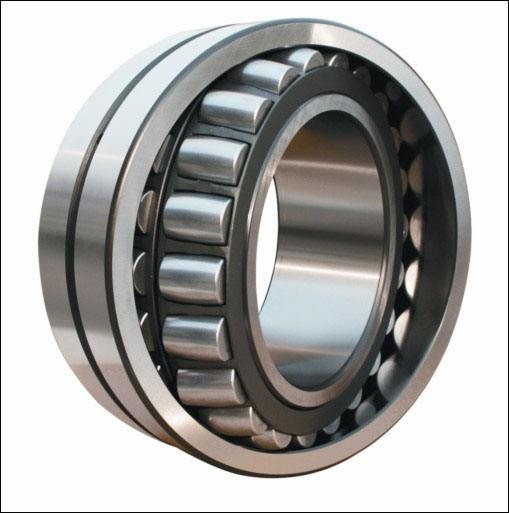

Spherical Roller Bearing

1. Internal Structure and Retainer Material Variation

C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-pice brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. Improved stress distribution; Offer much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller, Two-pice brass cage
EM: Symmetrical roller, Special alloy Integral cage.

2. External form chnage

K: Tapered bore bearing, taper is 1: 12
K30: Tapered bore bearing, taper is 1: 30
N: A snap ring groove on the outer ring
W33: There are three lubrication groove and three lubrication holes in the outer ring

3. Ring high-temperature tempering

S0: Work temperature up to 150 degrees Celsius.
S1: Work temperature up to 200 degrees Celsius.
S2: Work temperature up to 250 degrees Celsius.
S3: Work temperature up to 300 degrees Celsius.
S4: Work temperature up to 350 degrees Celsius

4. Clearance

C0: Norminal clearance, omitted in destination
C2: Less than Norminal clearance
C3: Larger clearance than C0
C4: Larger clearance than C3
C5: Larger clearance than C3
C9: Special Clearance

OVERALL DIMENSION
Cylindrical Bore	Tapered Bore	d	D	B
22205CC	22205CCK	25	52	18
22205E	22205EK	25	52	18
22206CC	22206CCK	30	62	20
22206E	22206EK	30	62	20
22207CC	22207CCK	35	72	23
22207K	22207EK	35	72	23
22208CC	22208CCK	40	80	23
22208E	22208EK	40	80	23
22308CC	22308CCK	40	90	33
22308E	22308EK	40	90	33
22209CC	22209CCK	45	85	23
22209E	22209EK	45	85	23
22309CC	22309CCK	45	100	36
22309E	22309EK	45	100	36
22210CC	22210CCK	50	90	23
22210E	22210EK	50	90	23
22310CC	22310CCK	50	110	40
22310E	22310EK	50	110	40
22211CC	22211CCK	55	100	25
22211E	22211EK	55	100	25
22311CC	22311CCK	55	120	43
22311E	22311EK	55	120	43
22212CC	22212CCK	60	110	28
22212E	22212EK	60	110	28
22312CC	22312CCK	60	130	46
22312E	22312EK	60	130	56
22213CC	22213CCK	65	120	31
22213E	22213EK	65	120	31
22313CC	22313CCK	65	140	48
22313E	22313EK	65	140	48
22214CC	22214CCK	70	125	31
22214E	22214EK	70	125	31
22314CC/W33	22314CCK/W33	70	150	51
22314E	22314EK	70	150	51
22215CC	22215CCK	75	130	31
22215E	22215EK	75	130	31
22315CC/W33	22315CCK/W33	75	160	55
22315E	22315EK	75	160	55
22216CC	22216CCK	80	140	33
22216E	22216EK	80	140	33
22316CC/W33	22316CCK/W33	80	170	58
22316E	22316EK	80	170	58
22217CC/W33	22217CCK/W33	85	150	36
22217E	22217EK	85	150	36
22317CC/W33	22317CCK/W33	85	180	60
22317E	22317EK	85	180	60
22218CC/W33	22218CCK/W33	90	160	40
22218E	22218EK	90	160	40
22318CC/W33	22318CCK/W33	90	190	64
22318E	22318EK	90	190	64
22219CC/W33	22219CCK/W33	95	170	43
22219E	22219EK	95	170	43
22319CC/W33	22319CCK/W33	95	200	67
22319E	22319EK	95	200	67
22220CC/W33	22220CCK/W33	100	180	46
22220E	22220EK	100	180	46
22320CC/W33	22320CCK/W33	100	215	73
22320E	22320EK	100	215	73
22222CC/W33	22222CCK/W33	110	200	53
22222E	22222EK	110	200	53
22322CC/W33	22322CCK/W33	110	240	80
22322E	22322EK	110	240	80
22224CC/W33	22224CCK/W33	120	215	58
22224E	22224EK	120	215	58
22324CC/W33	22324CCK/W33	120	260	86

Xingcheng Steel Spherical Roller Bearing For Paper Making Machines Anti Rust 0
