Name: 6328/c3vl0241 Electric Insulation Deep Groove Ball Bearings
Brand: MONTON
SKU: 6328/c3vl0241
Rating: 5 (120 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: GCr15 Or GCr15SiMn

Application: Motor Or The Railway

Accuracy: P6 Or P5 Or P4

Cage: Brass

Character: Inner Ring With Coating

Types: Deep Groove Ball Bearings Or Cylindrical Roller Bearings

Highlight:

deep groove roller bearing

self aligning roller bearing

Basic Infomation

Place of Origin: LUOYANG

Brand Name: MONTON

Certification: ISO9001

Model Number: 6328/c3vl0241

Payment & Shipping Terms

Packaging Details: Single box/Wooden case

Delivery Time: 7-35 days

Payment Terms: TT

Supply Ability: 1000/pcs/week

Gallery

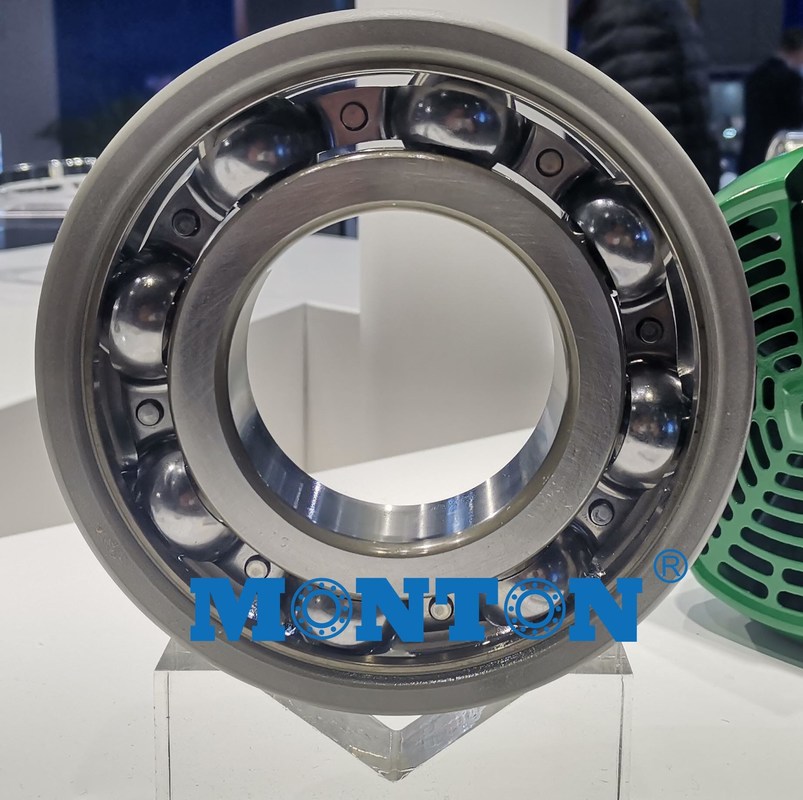

6328/c3vl0241 Electric Insulation Deep Groove Ball Bearings

Product Description

Insulated Deep Groove Ball Bearing Motor Bearing

Brand	Monton
Name	Insulated deep groove ball bearings
Model	6328/c3vl0241
Material	GCr15	Outside diameter	ISO9001:2001
Precision	ABEC-1,ABEC3,ABEC5
Bore Size:	50mm-1000mm	Outside diameter	50mm-5000mm
Clearance	Co, C2, C3, C4
Cage Type	nylon
Seals Type	open
Features	Electrically insulated bearings to avoid corrosion damage caused by electricity, as compared with conventional bearings in the motor can protect more reliable operation. And compared to other insulating methods, such as the shaft or housing insulation, more cost-effective and reliable. Insulated bearing dimensions and basic technical characteristics and the same non-insulated bearings, so you can absolutely interchangeable.
Application	motors, generators, especially variable frequency motor
Package	pallet, wooden case,industrial package or as customers' requirement
Price	FOB, CFR, CIF	Delivery Time	5-10 days

Insulated deep groove ball bearing

The insulated deep groove ball bearing is sprayed coating on the outer surface of high-quality bearings, coating the substrate, good insulation properties, can prevent induced current galvanic action of the bearing to prevent damage to the grease and the current rolling elements , to increase bearing life.

china electrical hydraulic slewing crane

Principal dimensions			Basic load ratings		Fatigue load limit	Speed ratings		Mass	Designation
			dynamic	static	Fatigue load limit	Reference speed	Limiting speed
d	D	B	C	C0	Pu
mm			kN		kN	r/min		kg	-
110	200	38	151	118	4	6700	4300	4,25	6222 M/C3VL0241
70	150	35	111	68	2,75	9500	6300	2,5	6314/C3VL0241
75	130	25	68,9	49	2,04	10000	6700	1,2	6215/C3VL0241
75	160	37	119	76,5	3	9000	5600	3,05	6315/C3VL0241
80	140	26	72,8	55	2,2	9500	6000	1,4	6216/C3VL0241
80	170	39	130	86,5	3,25	8500	5300	3,55	6316/C3VL0241
85	150	28	87,1	64	2,5	9000	5600	1,75	6217/C3VL0241
85	180	41	140	96,5	3,55	8000	5000	4,1	6317/C3VL0241
90	160	30	101	73,5	2,8	8500	5300	2,4	6218/C3VL0241
90	190	43	151	108	3,8	7500	4800	4,9	6318/C3VL0241
95	170	32	114	81,5	3	8000	5000	2,5	6219/C3VL0241
95	200	45	159	118	4,15	7000	4500	5,65	6319/C3VL0241
100	180	34	127	93	3,35	7500	4800	3,15	6220/C3VL0241
100	215	47	174	140	4,75	6700	4300	7	6320/C3VL0241
110	200	38	151	118	4	6700	4300	4,25	6222/C3VL0241
110	240	50	203	180	5,7	6000	3800	9,65	6322/C3VL0241
120	215	40	146	118	3,9	6300	4000	5,2	6224/C3VL0241
120	260	55	208	186	5,7	5600	3400	12,5	6324/C3VL2071
130	230	40	156	132	4,15	5600	3600	5,75	6226/C3VL2071
130	280	58	229	216	6,3	5000	3200	15,2	6326/C3VL2071
140	300	62	251	245	7,1	4800	3000	18,5	6328/C3VL2071
150	270	45	174	166	4,9	5000	3200	9,8	6230/C3VL2071
150	320	65	276	285	7,8	4300	2800	23	6330/C3VL2071

6214M/C4VL0241	6322M/C4VL0241
6215M/C4VL0241	6322/C3VL2071
6221M/C4VL0241	6324M/C3VL0241
6308M/C4VL0241	6324/P63VL0241
6316M/C4VL0241	6324/C3VL0241
6319M/C4VL0241	6326M/C3VL0241
6218M/C3VL0241	6326/C3VL0241
6226M/C3VL0241	6328M/C3VL0241
6310M/C3VL0241	6330M/C3VL0241
6311M/C3VL0241	6330M/C3VL2071
6312M/C3VL0241	6334/C3VL0241
6313M/C3VL0241	6226/C3VL0241
6314M/C3VL0241	6230/P53VL0241
6314M/C4VL0241	NU315ECP/VL0241
6315M/C3VL0241	NU317ECM/C3VL0241
6316M/C3VL0241	NU218ECM/C3VL0241
6316/C3VL2071	NU319ECM/C3VL0241
6317M/C3VL0241	NU322ECM/C3VL0241
6318M/C3VL0241	NU324ECM/C3VL0241
6318M/P64VL0241	NU 315 ECP/VL0241
6318M/C3VL2071	NU 317 ECM/C3VL0241
6319M/C3VL0241	NU 218 ECM/C3VL0241
6319/C3VL2071	NU 319 ECM/C3VL0241
6320M/C3VL0241	NU 322 ECM/C3VL0241
6322M/C3VL0241	NU 324 ECM/C3VL0241

Product Categories:
Electrically insulated deep groove ball bearings
Electrically insulating angular contact ball bearings
Electrically insulating cylindrical roller bearings
Insulated inner or outer ring of the bearing with oxide coating
Hybrid bearings with an electrically insulating ceramic rolling elements

Current-insulated bearings and hybrid bearings

Current-insulated bearings have either an outer ring (J20 A, J20 AA, J20B) or an inner ring (J20C) that is insulated with thin ceramic coating.
Different coating types are available for optimum functional performance.

Types of coatings - Range of Sizes

6328/c3vl0241 Electric Insulation Deep Groove Ball Bearings 1

	J20B	J20A *)	J20AA	J20C
Disruptive Voltage	500 VDC	1000 VDC	3000 VDC	3000 VDC
Environment	dry	dry	dry/damp	dry/damp
Coating Thickness	<100 μm	>200 μm	≈200 μm	≈200 μm
Applicable Dimensions	70…1400 mm outside diameter	70…1400 mm outside diameter	70…500 mm outside diameter	70…340 mm inner ring bore
*) Preferably used for bearings with an outside diameter of at least 500 mm

Current-insulated bearings have the same dimensions and load carrying capacities as those without insulation, which makes them perfectly interchangeable.
The most common type of insulation used in electric motor applications is the J20AA coating. It offers excellent protection against passage of electrical current, even in damp atmospheres.
Bearings with ceramic coating are available with seals also.

Bearings with J20C coating on the inner ring are used in special applications as well as applications where the outer ring rotates. Z shields can be used as well.

Ordering examples:

6220-2RSR-J20AA-C3
Deep groove ball bearing with a coated outer ring, with seals on both sides and radial clearance C3.
NU214-E-M1-F1-J20B-C4
Cylindrical roller bearings with a coated outer ring and radial clearance C4.
6330-J20C
Deep groove ball bearings with a coated inner ring

Hybrid bearings (HC): Hybrid bearings are characterized by the fact that the rolling elements are made of ceramic. They offer maximum protection against passage of electrical current. At the same time, hybrid bearings are suitable for higher speeds and have better dry-running characteristics.

Ordering examples:

HC6214-M-P6-C3
Deep groove ball bearing with ceramic balls; machined brass cage; increased accuracy P6 and bearing clearance C3.
HCN1020-K-M1-SP
Cylindrical roller bearing with ceramic rollers; tapered bore; machined brass cage; increased accuracy SP.
APPLICATION:

The insulated bearing is used in motors, generators, especially variable frequency motor more widely.

Welcome here if you have any demands!
