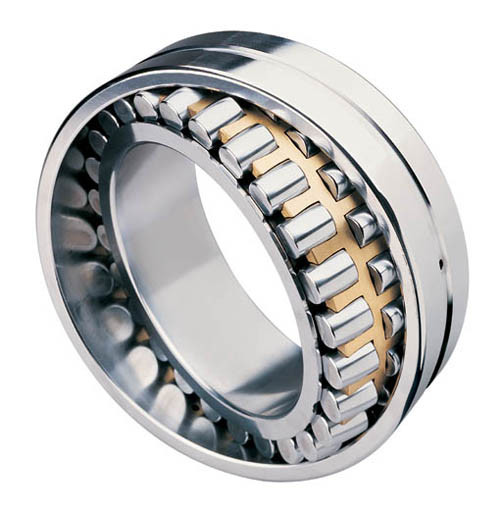

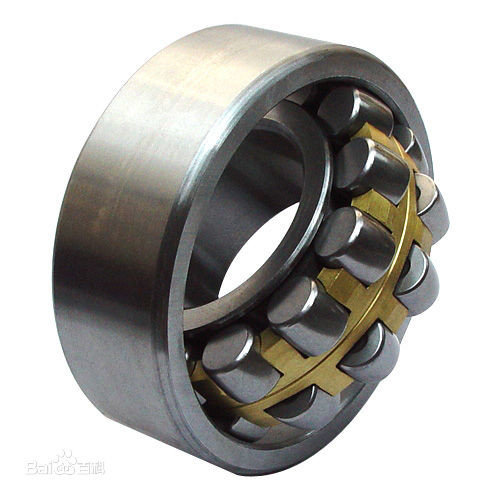

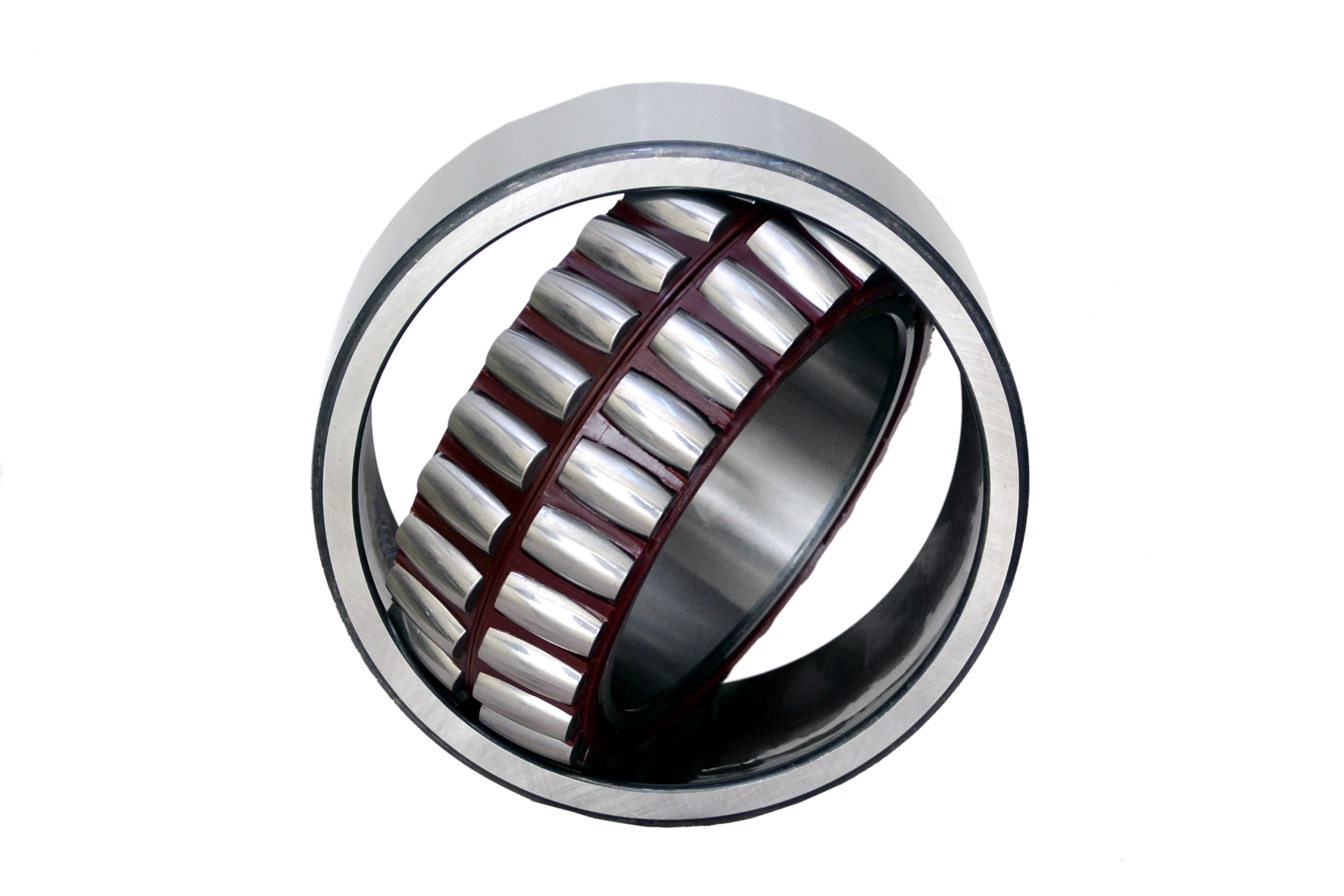

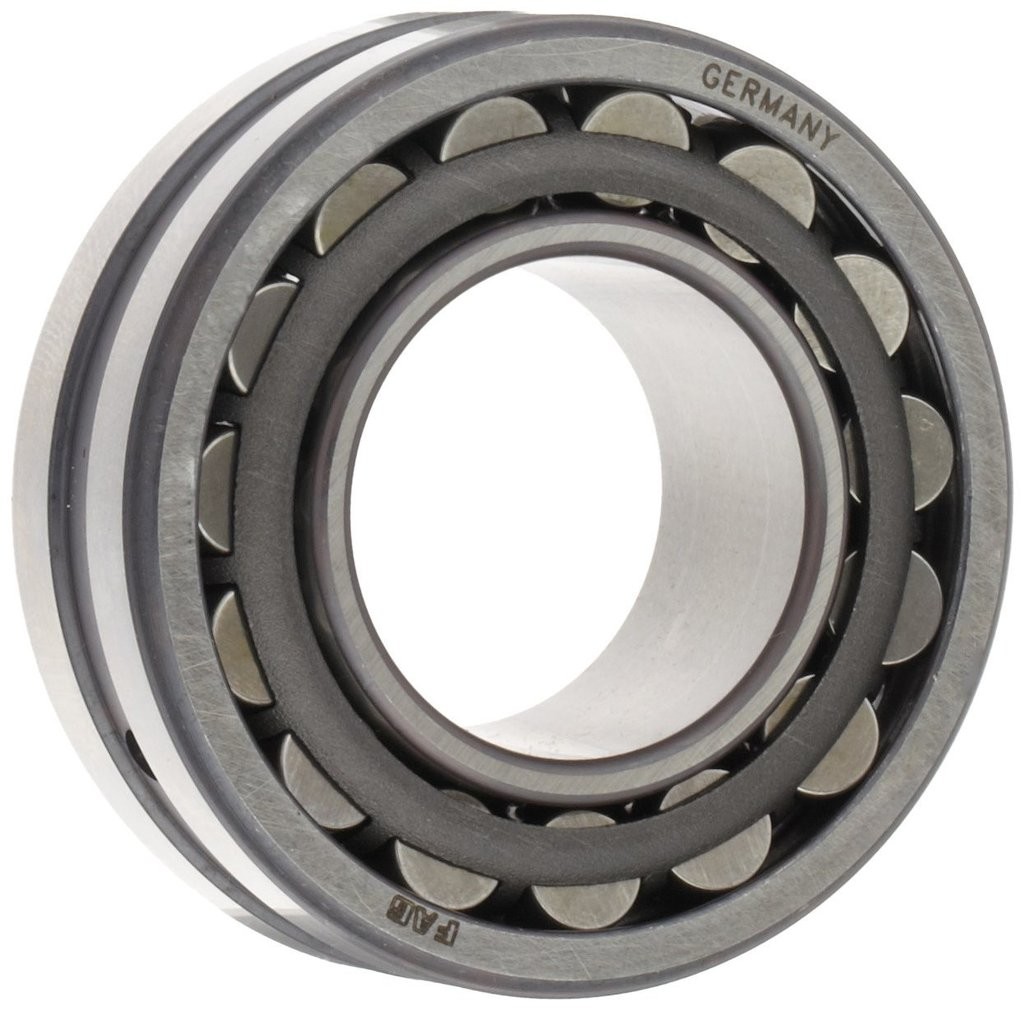

Spherical Roller Bearing
The detail information:
Bearing type | Spherical Roller Bearing |
Bearing Model | 22205CAK/W33C3 |
Brand | GQZ / AAA |
Size (mm) | 20*52*18 |
Weight (kg) | 0.178KG |
Stock | Enough |
Lubrication | Oil |
Application | Automobiles, Rolling Mill, Mining, Metallurgy |
Types of bearings:
Spherical roller bearings with two rollers, mainly bear radial load, but also can withstand axial load in either direction. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load. This kind of bearing outer ring raceway is spherical shape, so the good performance of its self-aligning, can compensate concentricity error.
There are two symmetrical spherical roller, there is a common spherical outer ring raceway, the bearing inner ring with two axis tilt
Angle of raceway, aligning with good performance, when the axis force bent or install a different heart is still bearing the normal use, transfer concentric with the bearing size range varies, generally aligning allowed 1 to 2.5 degree angle load bearing capacity of the larger type, in addition to radial loads but also under way outside the role of bearing axial load, with good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.
Main Structure types :
C(J),EC(J).CA,ECA,CAF,CAFA, and so on.
1.CA: Integral brass cage, double row symmetrical rollers,inner ring ride
2.MA: Integral brass cage, double row symmetrical rollers ,outer ring ride
3.MB: Two piece brass cage,double row asymmetrical rollers, inner ring ride
4.CC: Two piece steel cage, double row symmetrical rollers,inner ring ride
5.CTN1: Double row symmetrical rollers ,nylon cage
6.K: Tapered bore bearing, the taper is 1:12
7.K30: Tapered bore bearing,the taper is 1:3
APPLICATION:
Papermaking machinery, reducer, railway vehicle axle, gear box bearing, rolling mill rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, Papermaking machinery, deceleration devices, railway vehicle axles, gear box bearing rolling mill, rolling mill rolls, crusher, vibrating screen, printing machinery, woodworking machinery, all kinds of industrial gear, vertical seat belt aligning bearings
MODEL | d(mm) | D(mm) | B(mm) | MODEL | d(mm) | D(mm) | B(mm) |
22205/20E | 20 | 52 | 18 | 22211E | 55 | 100 | 25 |
22205E | 25 | 52 | 18 | 22211EK | 55 | 100 | 25 |
22205EK | 25 | 52 | 18 | 21311E | 55 | 120 | 29 |
21305CC | 25 | 62 | 17 | 21311EK | 55 | 120 | 29 |
22206E | 30 | 62 | 20 | 22311E | 55 | 120 | 43 |
22206EK | 30 | 62 | 20 | 22311EK | 55 | 120 | 43 |
21306CC | 30 | 72 | 19 | 22212E | 60 | 110 | 28 |
21306CCK | 30 | 72 | 19 | 22212EK | 60 | 110 | 28 |
22207E | 35 | 72 | 23 | 21312E | 60 | 130 | 31 |
22207EK | 35 | 72 | 23 | 21312EK | 60 | 130 | 31 |
21307CC | 35 | 80 | 21 | 22312E | 60 | 130 | 46 |
21307CCK | 35 | 80 | 21 | 22312EK | 60 | 130 | 46 |
22208E | 40 | 80 | 23 | 24013CC/W33 | 65 | 100 | 35 |
22208EK | 40 | 80 | 23 | 24013cck30/w33 | 65 | 100 | 35 |
21308E | 40 | 90 | 23 | 22213e | 65 | 120 | 31 |
21308EK | 40 | 90 | 23 | 22213ek | 65 | 120 | 31 |
22308E | 40 | 90 | 33 | 21313E | 65 | 140 | 33 |
MODEL | d(mm) | D(mm) | B(mm) | MODEL | d(mm) | D(mm) | B(mm) |
23022CC/W33 | 110 | 170 | 45 | 23028 | 140 | 210 | 53 |
23022CCK/W33 | 110 | 170 | 45 | 24028 | 140 | 210 | 69 |
24022CC/W33 | 110 | 170 | 60 | 23128 | 140 | 225 | 68 |
24022CCK/W33 | 110 | 170 | 60 | 24128 | 140 | 225 | 85 |
23122CC/W33 | 110 | 180 | 56 | 22228 | 140 | 250 | 68 |
23122CCK/W33 | 110 | 180 | 56 | 23228 | 140 | 250 | 88 |
24122CC/W33 | 110 | 180 | 69 | 22328 | 140 | 300 | 102 |
24122CC/K/W33 | 110 | 180 | 69 | 23030 | 150 | 225 | 56 |
22222E | 110 | 200 | 53 | 24030 | 150 | 225 | 80 |
22222EK | 110 | 200 | 53 | 23130 | 150 | 250 | 80 |
23222CC/W33 | 110 | 200 | 69.8 | 24130 | 150 | 250 | 100 |
23222CCK/W33 | 110 | 200 | 69.8 | 22230 | 150 | 270 | 73 |
22322e | 110 | 240 | 80 | 23230 | 150 | 270 | 96 |
22322ek | 110 | 240 | 80 | 22330 | 150 | 320 | 108 |
23024CC/W33 | 120 | 180 | 46 | 23032 | 160 | 240 | 60 |
23024CCK/W33 | 120 | 180 | 46 | 24032 | 160 | 240 | 80 |
24024CC/W33 | 120 | 180 | 60 | 23132 | 160 | 270 | 86 |
24024CCK/W33 | 120 | 180 | 60 | 24132 | 160 | 270 | 109 |
23124CC/W33 | 120 | 200 | 62 | 22232 | 160 | 290 | 80 |
23124CCK/W33 | 120 | 200 | 62 | 23232 | 160 | 290 | 104 |
24124CC/W33 | 120 | 200 | 80 | 22332 | 160 | 340 | 114 |
24124CCK/W33 | 120 | 200 | 80 | 23034 | 170 | 260 | 67 |
22224E | 120 | 215 | 58 | 24034 | 170 | 260 | 90 |
22224EK | 120 | 215 | 58 | 23134 | 170 | 280 | 88 |
23224CC/W33 | 120 | 215 | 76 | 24134 | 170 | 280 | 109 |
232244CCK/W33 | 120 | 215 | 76 | 22234 | 170 | 310 | 86 |
MODEL | d(mm) | D(mm) | B(mm) | MODEL | d(mm) | D(mm) | B(mm) |
23952 | 260 | 360 | 75 | 23968 | 340 | 460 | 90 |
23052 | 260 | 400 | 104 | 23068 | 340 | 520 | 133 |
24052 | 260 | 400 | 140 | 24068 | 340 | 520 | 180 |
23152 | 260 | 440 | 144 | 23168 | 340 | 580 | 190 |
24152 | 260 | 440 | 180 | 24168 | 340 | 580 | 243 |
22252 | 260 | 480 | 130 | 23268 | 340 | 620 | 224 |
23252 | 260 | 480 | 174 | 23972 | 360 | 480 | 90 |
22352 | 260 | 540 | 165 | 23072 | 360 | 540 | 134 |
23956 | 280 | 380 | 75 | 24072 | 360 | 540 | 180 |
23056 | 280 | 420 | 106 | 23172 | 360 | 600 | 192 |
24056 | 280 | 420 | 140 | 24172 | 360 | 600 | 243 |
23156 | 280 | 460 | 146 | 22272 | 360 | 650 | 170 |
24156 | 280 | 460 | 180 | 23272 | 360 | 650 | 232 |
22256 | 280 | 500 | 130 | 23976 | 380 | 520 | 106 |
23256 | 280 | 500 | 176 | 23076 | 380 | 560 | 135 |
22356 | 280 | 580 | 175 | 24076 | 380 | 560 | 180 |
23860 | 300 | 380 | 60 | 23176 | 380 | 620 | 194 |
23960 | 300 | 420 | 90 | 34176E | 380 | 620 | 243 |
23060 | 300 | 460 | 118 | 23276CA | 380 | 680 | 240 |
24060 | 300 | 460 | 160 | 23980 | 400 | 540 | 106 |
23160 | 300 | 500 | 160 | 23080 | 400 | 600 | 148 |
24160 | 300 | 500 | 200 | 24080 | 400 | 600 | 200 |
22260 | 300 | 540 | 140 | 23180 | 400 | 650 | 200 |
23260 | 300 | 540 | 192 | 24180 | 400 | 650 | 250 |
23964 | 320 | 440 | 90 | 23280 | 400 | 720 | 256 |
