Multi Row Thrust Angular Contact Mud Motor Bearings 55SiMoVA Material
1
MOQ
USD
Price
Multi Row Thrust Angular Contact Mud Motor Bearings 55SiMoVA Material
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 128713K
High Light:

angular contact bearings

,

non standard bearing

Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Specifications
Material: 55SiMoVA
Row: 7row Or 8 Row Or More
Application: Oil Drilling Motor
Customer: Oil Company
ID: 65mm
OD: 128mm
Product Description

Product Description




The bearings in a mud motor at the end of a drill string would place a huge influence on productivity and reliability in terms of oil
drilling or gas drilling.The working condition of these mud motor bearings are extremely harsh: the bearings bear heavy axial and
shock loads, and they are also exposed with highly abrasive mud.

• Special steel for all bearing components
• Full complement bearing
• Precision matched rings
• Unique bearing design to support heavy
• axial drilling loads

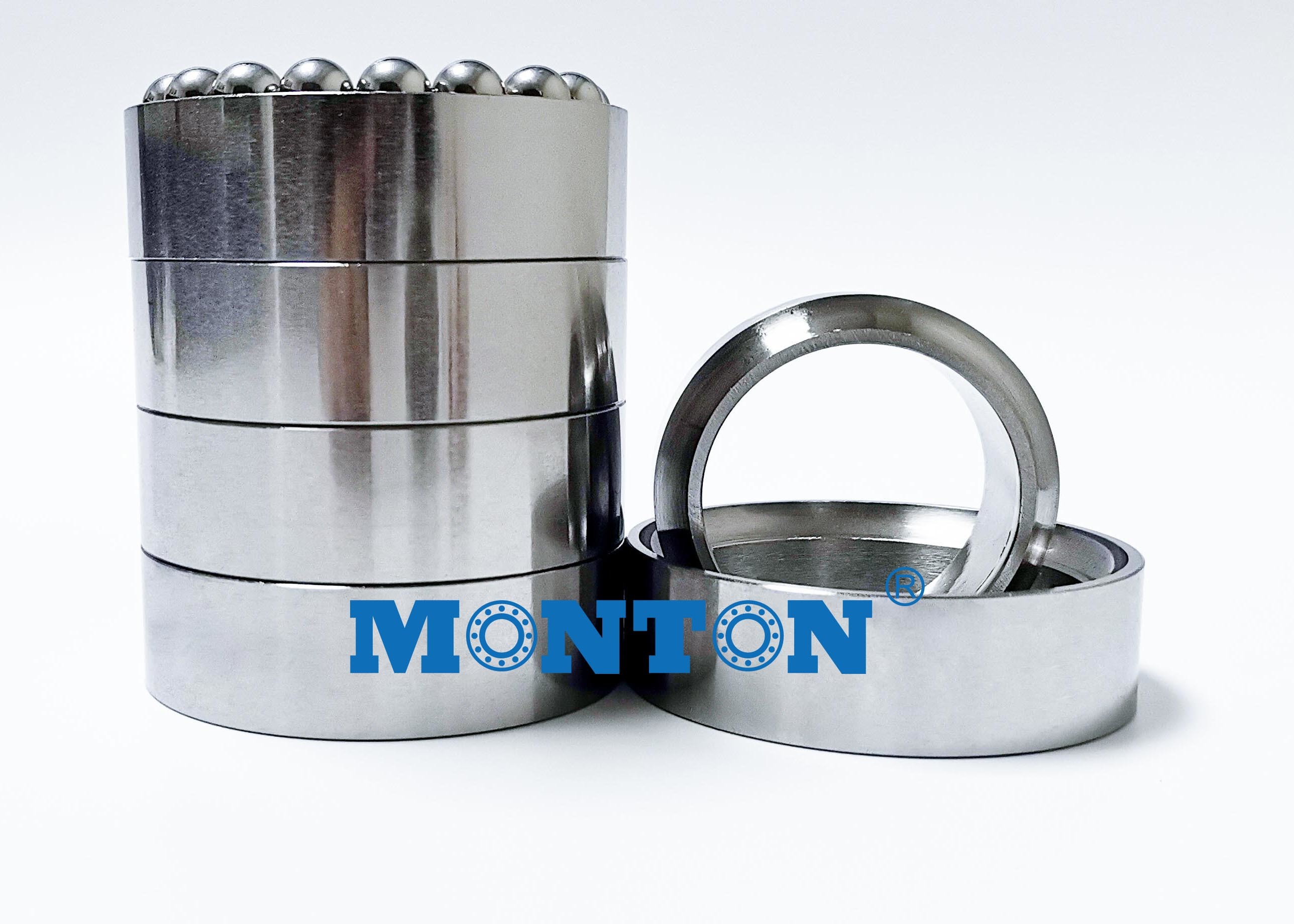

Multi Row Thrust Angular Contact Mud Motor Bearings 55SiMoVA Material 0

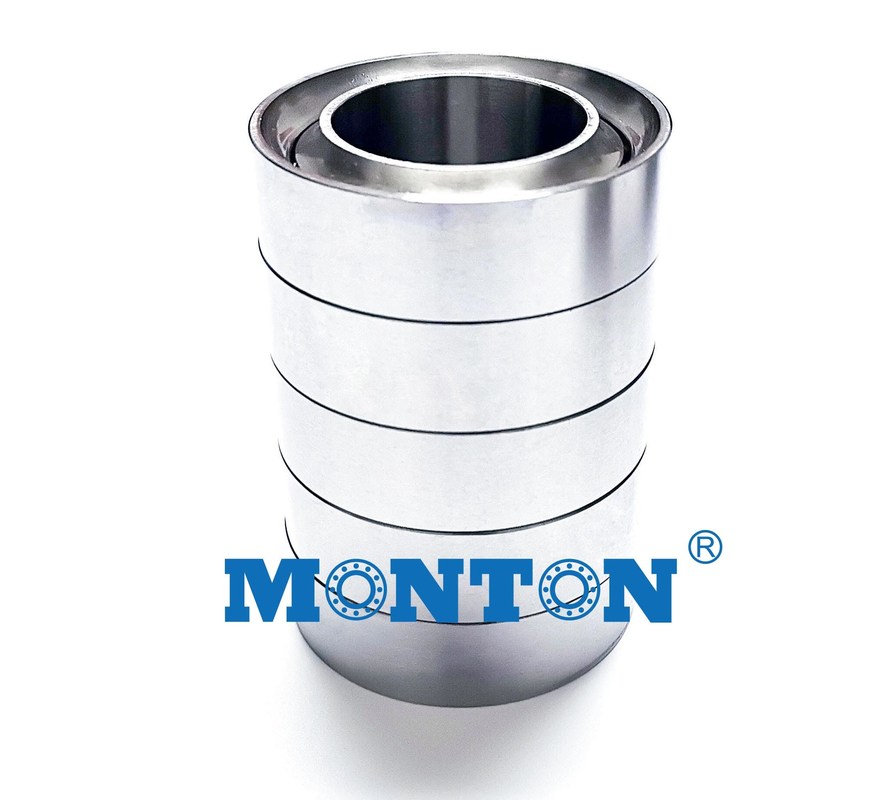

2)The real bearings picture

Multi Row Thrust Angular Contact Mud Motor Bearings 55SiMoVA Material 1

3)Sliding bearings



Multi Row Thrust Angular Contact Mud Motor Bearings 55SiMoVA Material 2



Application

Down hole motor or drilling motor for the oil drilling industry
Bearing Assembly of Downhole Motor is used to transmit motor rotary dynamic force to the bit, meanwhile to withstand axial and radial load from drilling weight. Inside of the Bearing Assembly,Monton uses TC Radial Bearing and a stacked thrust bearings. The thrust bearings support the downward force resulting from the “weight on bit” (WOB) and the loads from the combination of hydraulic thrust and weight loads from internal components.Monton provides different bearing assemblies, designed to meet the diverse requirements of the drilling industry.



Downhole drilling motor bearings



Whether you’re drilling for oil or gas, the bearings in a mud motor at the end of a drill string have a direct impact on productivity and reliability.These mud motor bearings have to endure extreme operating conditions. In addition to severe axial and shock loads, these bearings are “lubricated” with highly abrasive mud, which for a bearing is the definition of an extreme operating condition.



How the new bearing works ?

The typical mud motor bearing contains between 8 and 12 rows for design optimization. When the bearing is new, the majority of the load is accommodated by the first four or five rows. As each row starts to wear, the load is shifted to the next row and the next until all the rows are worn equally. Then, the load is shifted back to the first row and the process is repeated. This unique Monton design enables the bearing to last significantly longer than previous bearing designs.



About the redesign process

To significantly improve bearing performance and reliability,Monton engineers used proprietary Monton design and simulation tools to

• accurately define the behaviour of a bearing stack

• redesign the bearing to minimize stresses and optimise load carrying capacity

• test new designs and materials. With the Monton virtual test rig, engineers were able to identify and correct the problem of cracked rings and sheared balls – two common problems with these bearing





Product features

• Special steel for all bearing components

• Full complement bearing

• Precision matched rings

• Unique bearing design to support heavy axial drilling loads



Customer benefits

• Improved wear-resistance

• Increased load carrying capacity

• Optimized load distribution

• Increased robustness

• Improved reliability

• Customized design
