thin section bearings factory with stainless steel and high quality

1
MOQ
USD
Price
thin section bearings factory with stainless steel and high quality
Features Gallery Product Description Request A Quote
Features
Specifications
Material: GCr15 Or 440C
Accuracy: P6/P5/P4
Type: Deep Groove Ball Bearing
Seal Type: 2RS Or ZZ Or Open
Tolerance: Much Higher Than ISO9001
Application: Machines
High Light:

thin section ball bearings

,

steel ball bearings

Basic Infomation
Place of Origin: LUOYANG
Brand Name: MONTON
Certification: ISO9001
Model Number: 61844
Payment & Shipping Terms
Packaging Details: Single box/Wooden case
Delivery Time: 7-35 days
Payment Terms: TT
Supply Ability: 1000/pcs/week
Product Description

This section bearings



1. Thin section deep groove ball bearings

have high precision, are very quiet and have high load carrying capacity.Thin Section Deep groove ball bearings can support axial loads from both directions as well as radial loads.Thin section bearings are bearings with very small ring cross-sections that can be used to save on design envelope and mass. They are based on bearings of series 617/618 and 619.. and are also available with a flanged outer ring and in a corrosion-resistant design.

2. Features of Thin Section deep groove ball bearing:

Low frictional and irregular torque ensure highly efficient power transmission and smooth rotating performance.The high accuracy of the bearings enables excellent high-speed performance.
Excellent running accuracy,Spaces save,Low friction,High precision,Long life,Low noise and vibration

3. Application of thin section deep groove ball bearing:

thin bearings were developed for applications where space limitations are of the utmost importance. These kind of thin section ball bearings are widely used for aviation, astronomical instruments, glass manufacturing machinery, medical instrument, optical and scanning instrument, satellite communication devices, textile machinery, large welding equipment, robot, semiconductor manufacturing equipment etc.print machinery

4. Advantage of our company:

Accept little order. Even you order very small bearings, we can send to you

Free samples. If you want to check quality or package, we can send you some samples for free

Quick quotating price. When we get your inquiry, we will quote immediately

Good quality. We can guarantee the quality is the best. Not only samples, but also products.

Fast delivery. After you place order, we can prepare bearings soon, and send out at the same day. We have large quantity bearings in stock.

Cooperation Courier/shipping company. We have long time cooperate couriers, include DHL/FEDEX/TNT/EMS; and shipping company. can give you best freight price

Technical support. We have our own technicist, to promise good quality bearings

5. OEM sevice.

We have our own factory, can supply OEM sevice, and accept your brand.

Much experience. Our company export bearings for many years, both brands bearings and our own bearings are saled to many countires. Win good reputations.

6. Carefully package.

No one want to receive broken products. We can package bearings carefully, to insure both package box and bearings are no broken.

7. Some details of thin section deep groove ball bearing:



Bearing Model ID (mm) OD (mm) B (mm)
61800.C3 61800 10 19 5
61801.C3 61801 12 21 5
61802.C3 61802 15 24 5
61803.C3 61803 17 26 5
61804.C3 61804 20 32 7
61805.C3 61805 25 37 7
61806.C3 61806 30 42 7
61807.C3 61807 35 47 7
61808.C3 61808 40 52 7
61809-Y.C3 61809-Y 45 58 7
61810-Y.C3 61810-Y 50 65 7
61811-Y.C3 61811-Y 55 72 9
61812-Y.C3 61812-Y 60 78 10
61813-Y.C3 61813-Y 65 85 10
61814-Y.C3 61814-Y 70 90 10
61815-Y.C3 61815-Y 75 95 10
61816-Y.C3 61816-Y 80 100 10
61817-Y.C3 61817-Y 85 110 13
61818-Y.C3 61818-Y 90 115 13
61819-Y.C3 61819-Y 95 120 13
61820-Y.C3 61820-Y 100 125 13
61821-Y.C3 61821-Y 105 130 13
61822-Y.C3 61822-Y 110 140 16
61824-Y.C3 61824-Y 120 150 16
61826.C3 61826 130 165 18
61828-Y.C3 61828-Y 140 175 18
61830.C3 61830 150 190 20
61832.C3 61832 160 200 20
61834.C3 61834 170 215 22
61836.C3 61836 180 225 22
61838.C3 61838 190 240 24
61840.C3 61840 200 250 24
61844.C3 61844 220 270 24
61848.C3 61848 240 300 28
61852.C3 61852 260 320 28
61856.C3 61856 280 350 33
61860-M-C3 61860-M 300 380 38
61864-M-C3 61864-M 320 400 38
61868-M-C3 61868-M 340 420 38
61872-M-C3 61872-M 360 440 38
61876-M-C3 61876-M 380 480 46
61880-M-C3 61880-M 400 500 46
61884-M-C3 61884-M 420 520 46
61888-M-C3 61888-M 440 540 46
61892-M-C3 61892-M 460 580 56
61896-M-C3 61896-M 480 600 56
618/500-M-C3 618/500-M 500 620 56
618/530-M-C3 618/530-M 530 650 56
618/560-M-C3 618/560-M 560 680 56
618/600-M-C3 618/600-M 600 730 60
618/630-M-C3 618/630-M 630 780 69
618/670-M-C3 618/670-M 670 820 69
618/710-M-C3 618/710-M 710 870 74
618/750-M-C3 618/750-M 750 920 78
618/800-M-C3 618/800-M 800 980 82
618/850-M-C3 618/850-M 850 1030 82






1.Specification:

6020 6228 16021 61844 61964 618/530
6021 6230 16022 61848 61968 618/560
6022 6232 16024 61852 61972 618/600
6024 6234 16026 61856 61976 618/630
6026 6236 16028 61860 61980 618/670
6028 6238 16030 61864 61984 618/710
6030 6240 16032 61868 61988 618/750
6032 6244 16040 61872 61992 618/800
6034 6248 16044 61876 61996 618/850
6036 6252 16048 61880 63944 618/900
6038 6320 16052 61884 60/500 618/950
6040 6321 16056 61888 60/530 619/1000
6044 6322 16060 61892 60/560 619/1180
6048 6324 16064 61896 60/600 619/1320
6052 6326 16068 61920 60/630 619/1500
6056 6328 16072 61921 60/670 619/500
6060 6330 16076 61922 60/710 619/530
6064 6332 60964 61924 60/800 619/560
6068 6334 60976 61926 60/850 619/600
6072 6336 61820 61928 618/1000 619/630
6076 6338 61821 61930 618/1060 619/670
6080 6340 61822 61932 618/1120 619/710
6084 6344 61824 61934 618/1180 619/750
6088 6348 61826 61936 618/1240 619/800
6092 6352 61828 61938 618/1320 619/850
6096 6418 61830 61940 618/1400 619/900
6220 6419 61832 61944 618/1500 619/950
6221 6420 61834 61948 618/1700 62952X1
6222 6422 61836 61952 618/2000 62952X3
6224 6426 61838 61956 618/2500 62964X3
6226 16020 61840 61960 618/500 62972X3





We also produce and supply

Ball Bearing Deep Groove Ball Bearing

60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **,

160 **(70001 )

Thrust Ball Bearing 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series
Angular Contact Ball bearing SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series
Roller Bearing Spherical Roller bearing 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on
Taper Roller Bearing 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc.
Thrust Roller Bearing 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series.
Cylindrical Roller Bearing NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry.

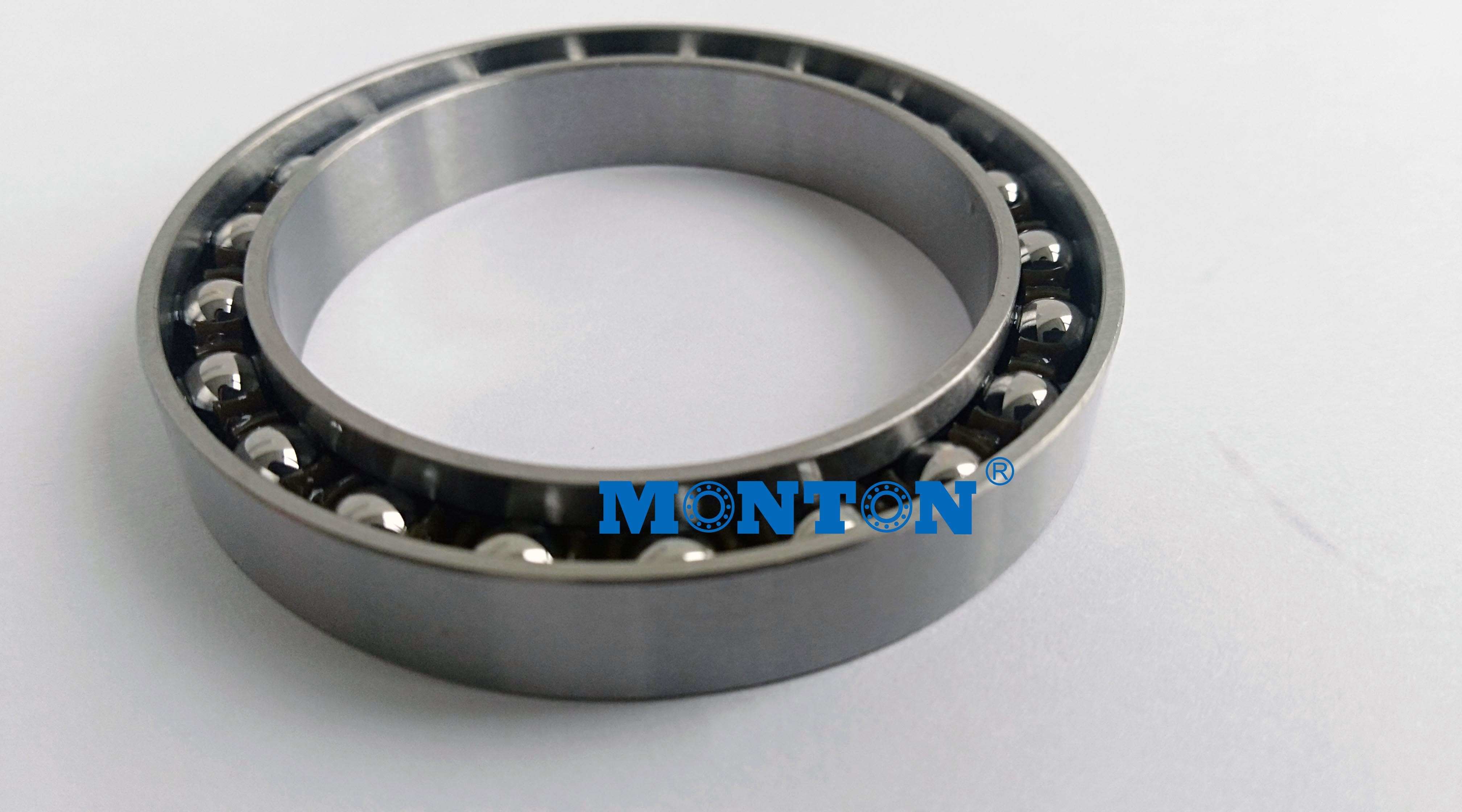

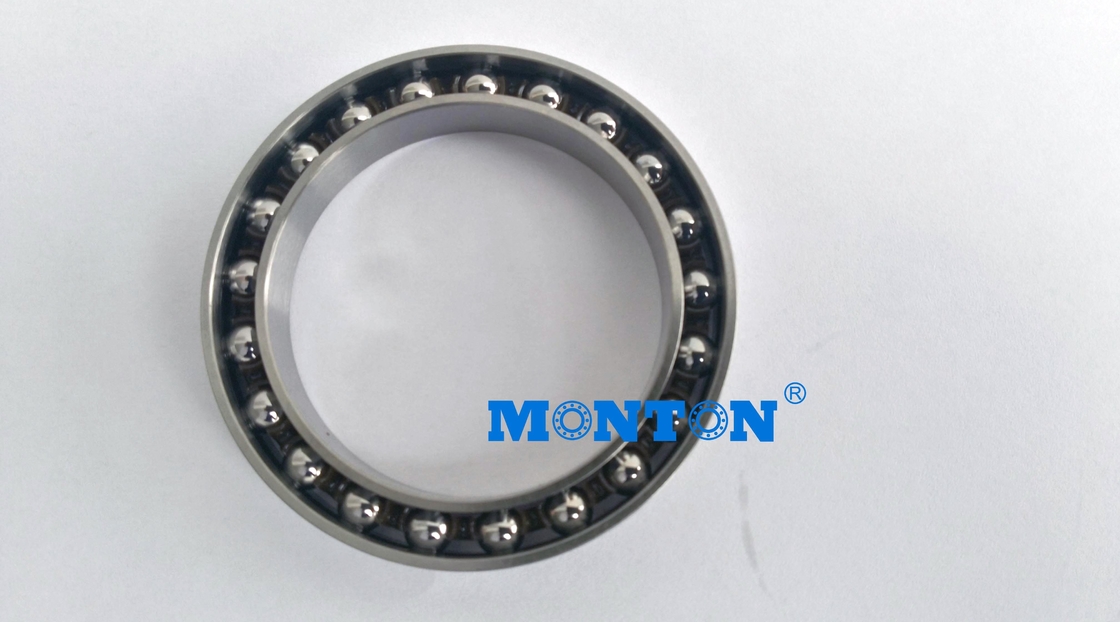

3.Bearing Picture:

thin section bearings factory with stainless steel and high quality 0thin section bearings factory with stainless steel and high quality 1

thin section bearings factory with stainless steel and high quality 2
