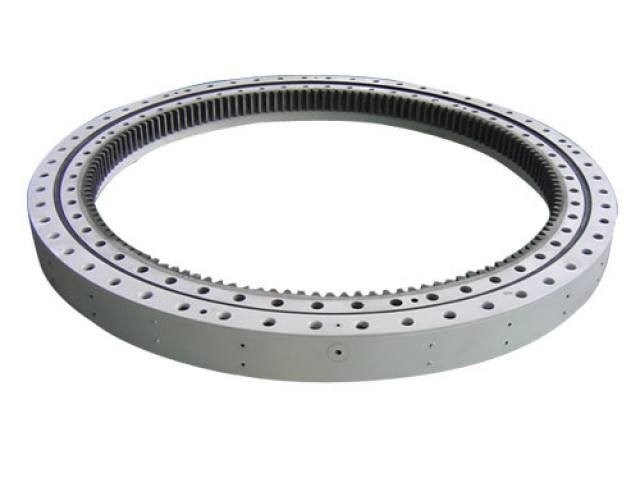

Three Row Pole Industrial Turntable Bearings , Komatsu PC650 Ball Bearing Slewing Ring

Three Row Pole Slewing Ring Bearings For Komatsu PC650/PC750 / Heavy Duty excavator

To "slew" means to turn without change of place; a "slewing" bearing is a rotational rolling-element bearing that typically supports a heavy but slow-turning or slow-oscillating load, often a horizontal platform such as a conventional crane, a swing yarder, or the wind-facing platform of a horizontal-axis windmill.

Slew ring bearing for tower cranes and excavators

Compared to other rolling-element bearings, slewing bearings are thin in section and are often made in diameters of a metre or more; the slewing bearings on the Falkirk Wheel are 4 metres diameter and fit over a 3.5 metre axle. Slewing bearings resemble oversize aircraft control surface bearings.

Slewing bearings often use two rows of rolling elements. They often use three race elements, such as an inner ring and two outer ring "halves" that clamp together axially.

Slewing bearings are often made with gear teeth integral with the inner or outer race

1, Internal ring
2, External ring
Slewing Ring consist of an internal and external ring with an integrated raceway system and optional internal or external teeth. The normal material is 50Mn.
3, Roller
In Slewing Rings, better rotation and loading transmission are achieved by special design and precision production of the rolling elements.
4, Spacer
Spacers separate the rolling elements and minimize friction and wear.
5, Mounting Holes
The force is transmitted to the mounting structure by bolts. Through holes or threaded holes can be provided in the inner and outer rings for these bolts.
6, Sealing
Polymer seals protect the Slewing Rings from normal dirt penetration, dust and loss of lubricant.
7, Plug hole
The rolling elements are inserted during manufacture through the filling plug hole, retained by the filling plug which is then secured by a pin.
8, Gear
Slewing Rings are designed with optional internal or external gear.
9, Grease nipple
Slewing Rings are designed for grease lubrication which is carried out via grease nipples.
10, ID Bearing type and serial No.

Gear Heat Treatment

The hardness is in range of HRC50～60, according to the different applications, the gears have the
three types of tooth quenching as follow.

Model Establishment Description

For example, single row four point contact ball slewing bearing, Normal, Outer gear Diameter of rolling element 45mm, (Upper row) Diameter of track center 1250mm.The model is 011.45.1250

supply the below goods:
