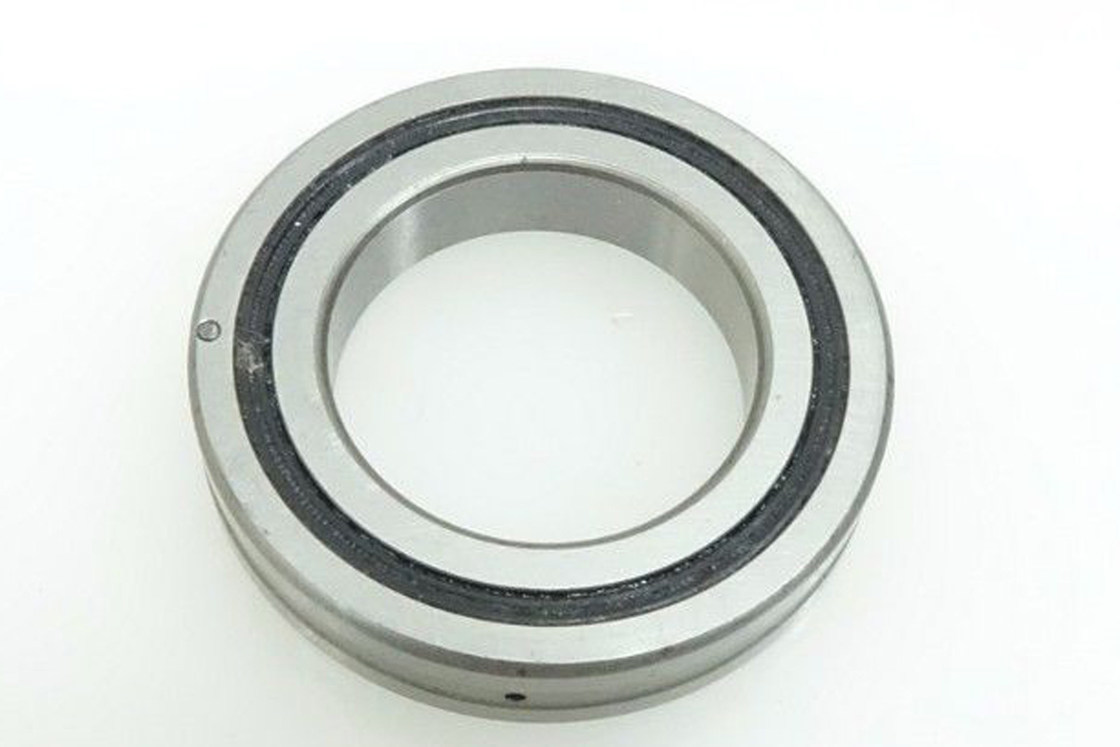

High Precision Cross Roller Bearing RU148X for Harmonic Reducer
Diameter (mm) | Identification number | Main dimensions | Shoulder height | Basic load rating(radial) | Weight | ||||||
ID | OD | B | Oil hole | rmin | |||||||
d | D | β | d1 | ds | Dh | C/kN | Co/kN | kg | |||
90 | RU148(G) | 90 | 210 | 25 | 3.1 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
RU148X |
Monton Precision Crossed Roller Bearing, the inner structure of which adopts the vertical and crossed arrangement of cylindrical roller with 90°, can stand radial load, double-direction thrust loads and overturning moment at the same time. Combined with its high rigidity, it can be applied to the joints and rotating parts of industrial robots, rotary tables of machining centers, rotating parts of manipulators, precision rotary tables, medical equipments, measuring instruments, IC manufacturing machines, etc.
Monton Precision Crossed Roller Bearing has three structure types, including bearing with cage, with separator, and with full complement. Cage and separator types are suitable to low friction moment and high-speed rotation, while full complement is suitable to low-speed rotation and heavy load.
Here below is the catalogues lists:
Model No. |
Boundary dimensions |
Shoulder height |
Basic load rating (radial) |
Weight |
|||||
d mm |
D mm |
B mm |
Rmin mm |
da mm |
Da mm |
C kN |
Co kN |
≈ kg |
|
RU42 | 20 | 70 | 12 | 0.6 | 37 | 47 | 7.35 | 8.35 | 0.29 |
RU66 | 35 | 95 | 15 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
RU85 | 55 | 120 | 15 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
RU124(G) | 80 | 165 | 22 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
RU124X | |||||||||
RU148(G) | 90 | 210 | 25 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
RU148X | |||||||||
RU178(G) | 115 | 240 | 28 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
RU178X | |||||||||
RU228(G) | 160 | 295 | 35 | 2 | 208 | 246 | 104 | 172 | 11.4 |
RU228X | |||||||||
RU297(G) | 210 | 380 | 40 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
RU297X | |||||||||
RU445(G) | 350 | 540 | 45 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
RU445X |
Model No. |
Boundary dimensions |
Shoulder height |
Basic load rating (radial) |
Weight |
|||||
d mm |
D mm |
B,C mm |
Rmin mm |
da mm |
Da mm |
C kN |
Co kN |
≈ kg |
|
RB 2008 | 20 | 36 | 8 | 0.5 | 23.5 | 30.5 | 3.23 | 3.1 | 0.04 |
RB 3010 | 30 | 55 | 10 | 0.6 | 37 | 47 | 7.35 | 8.36 | 0.12 |
RB 3510 | 35 | 60 | 10 | 0.6 | 41 | 51.5 | 7.64 | 9.12 | 0.13 |
RB 4010 | 40 | 65 | 10 | 0.6 | 47.5 | 57.5 | 8.33 | 10.6 | 0.16 |
RB 4510 | 45 | 70 | 10 | 0.6 | 51 | 61.5 | 8.62 | 11.3 | 0.17 |
RB 5013 | 50 | 80 | 13 | 0.6 | 57.4 | 72 | 16.7 | 20.9 | 0.27 |
RB 6013 | 60 | 90 | 13 | 0.6 | 68 | 82 | 18 | 24.3 | 0.3 |
RB 7013 | 70 | 100 | 13 | 0.6 | 78 | 92 | 19.4 | 27.7 | 0.35 |
RB 8016 | 80 | 120 | 16 | 0.6 | 91 | 111 | 30.1 | 42.1 | 0.7 |
RB 9016 | 90 | 130 | 16 | 1 | 98 | 118 | 31.4 | 45.3 | 0.75 |
RB 10016 | 100 | 140 | 16 | 1 | 109 | 129 | 31.7 | 48.6 | 0.83 |
RB 10020 | 100 | 150 | 20 | 1 | 113 | 133 | 33.1 | 50.9 | 1.45 |
RB 11012 | 110 | 135 | 12 | 0.6 | 117 | 127 | 12.5 | 24.1 | 0.4 |
RB 11015 | 110 | 145 | 15 | 0.6 | 122 | 136 | 23.7 | 41.5 | 0.75 |
RB 11020 | 110 | 160 | 20 | 1 | 120 | 143 | 34 | 54 | 1.56 |
RB 12016 | 120 | 150 | 16 | 0.6 | 127 | 141 | 24.2 | 43.2 | 0.72 |
RB 12025 | 120 | 180 | 25 | 1.5 | 133 | 164 | 66.9 | 100 | 2.62 |
Model No. |
Boundary dimensions |
Shoulder height |
Basic load rating (radial) |
Weight |
|||||
d mm |
D mm |
B,C mm |
Rmin mm |
da mm |
Da mm |
C kN |
Co kN |
≈ kg |
|
RB 13015 | 130 | 160 | 15 | 0.6 | 137 | 152 | 25 | 46.7 | 0.72 |
RB 13025 | 130 | 190 | 25 | 1.5 | 143 | 174 | 69.5 | 107 | 2.82 |
RB 14016 | 140 | 175 | 16 | 2.5 | 147 | 162 | 25.9 | 50.1 | 1 |
RB 14025 | 140 | 200 | 25 | 3.5 | 154 | 185 | 74.8 | 121 | 2.96 |
RB 15013 | 150 | 180 | 13 | 2.5 | 157 | 172 | 27 | 53.5 | 0.68 |
RB 15025 | 150 | 210 | 25 | 3.5 | 164 | 194 | 76.8 | 128 | 3.16 |
RB 15030 | 150 | 230 | 30 | 4.5 | 173 | 211 | 100 | 156 | 5.3 |
RB 16025 | 160 | 220 | 25 | 3.5 | 173 | 204 | 81.7 | 135 | 3.14 |
RB 17020 | 170 | 220 | 20 | 3.5 | 184 | 198 | 29 | 62.1 | 2.21 |
RB 18025 | 180 | 240 | 25 | 3.5 | 195 | 225 | 84 | 143 | 3.44 |
RB 19025 | 190 | 240 | 25 | 3.5 | 202 | 222 | 41.7 | 82.9 | 2.99 |
RB 20025 | 200 | 260 | 25 | 3.5 | 215 | 245 | 84.2 | 157 | 4 |
RB 20030 | 200 | 280 | 30 | 4.5 | 221 | 258 | 114 | 200 | 6.7 |
RB 20035 | 200 | 295 | 35 | 5 | 225 | 270 | 151 | 252 | 9.6 |
RB 22025 | 220 | 280 | 25 | 3.5 | 235 | 265 | 92.3 | 171 | 4.1 |
RB 24025 |
240 110 |
300 | 25 | 3.5 | 256 | 281 | 68.3 | 145 | 4.5 |
RB 25025 | 250 | 310 | 25 | 3.5 | 265 | 290 | 69.3 | 150 | 5 |
RB 25030 | 250 | 330 | 30 | 4.5 | 269 | 306 | 126 | 244 | 8.1 |
RB 25040 | 250 | 355 | 40 | 6 | 275 | 326 | 195 | 348 | 14.8 |
RB 30025 | 300 | 360 | 25 | 3.5 | 315 | 340 | 76.3 | 178 | 5.9 |
RB 30035 | 300 | 395 | 35 | 5 | 322 | 368 | 183 | 367 | 13.4 |
RB 30040 | 300 | 405 | 40 | 6 | 326 | 377 | 212 | 409 | 17.2 |
Model No. |
Boundary dimensions |
Shoulder height |
Basic load rating (radial) |
Weight |
|||||
d mm |
D mm |
B,C mm |
Rmin mm |
da mm |
Da mm |
C kN |
Co kN |
≈ kg |
|
RB 40035 | 400 | 480 | 35 | 2.5 | 422 | 459 | 156 | 370 | 14.5 |
RB 40040 | 400 | 510 | 40 | 2.5 | 428 | 479 | 241 | 531 | 23.5 |
RB 45025 | 450 | 500 | 25 | 1 | 464 | 484 | 61.7 | 182 | 6.6 |
RB 50025 | 500 | 550 | 25 | 1 | 514 | 534 | 65.5 | 201 | 7.3 |
RB 50040 | 500 | 600 | 40 | 2.5 | 526 | 572 | 239 | 607 | 26 |
RB 50050 | 500 | 625 | 50 | 2.5 | 536 | 587 | 267 | 653 | 41.7 |
RB 60040 | 600 | 700 | 40 | 3 | 627 | 673 | 264 | 721 | 29 |
RB 70045 | 700 | 815 | 45 | 3 | 731 | 777 | 281 | 836 | 46 |
RB 80070 | 800 | 950 | 70 | 4 | 836 | 900 | 468 | 1330 | 105 |
RB 90070 | 900 | 1050 | 70 | 4 | 937 | 1001 | 494 | 1490 | 120 |
RB 1000110 | 1000 | 1250 | 110 | 5 | 1057 | 1171 | 1220 | 3220 | 360 |
RB 1250110 | 1250 | 1500 | 110 | 5 | 1308 | 1423 | 1350 | 3970 | 440 |
